Growatt SPH4000 Installation Manual

Chart5.11

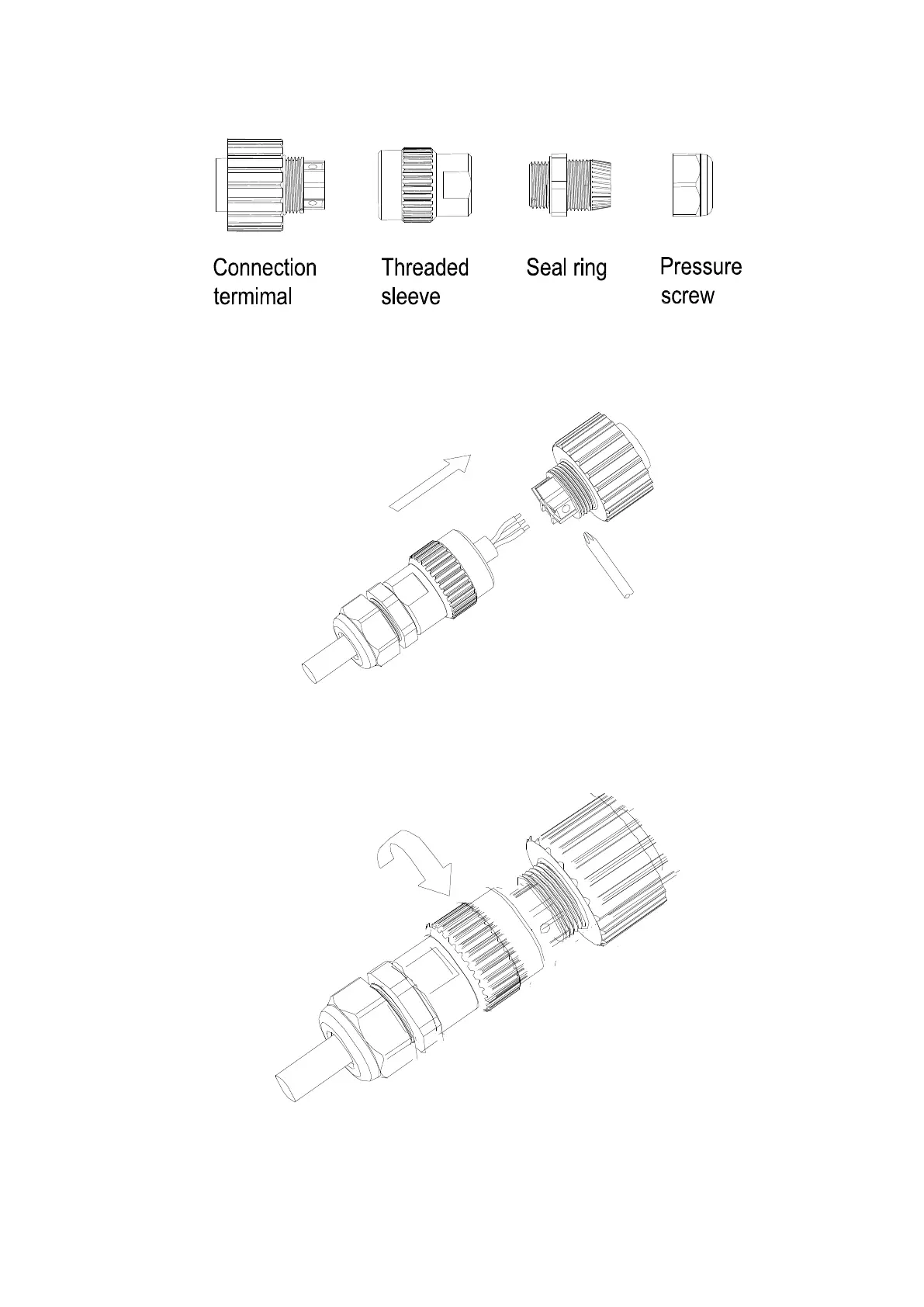

Step 1: Uninstall the AC terminal as above chart.
Chart5.12
Step 2: Thread cables through pressure screw, seal ring, threaded sleeve in sequence, insert cables into
connection terminal according to polarities indicates on it and tighten the screws.
Chart 5.13
Step 3: Push threaded sleeve on to connection terminal until both are locked tightly.

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
