Dimensions
24
SMART Digital S
5
5. Dimensions
DDA and DDC

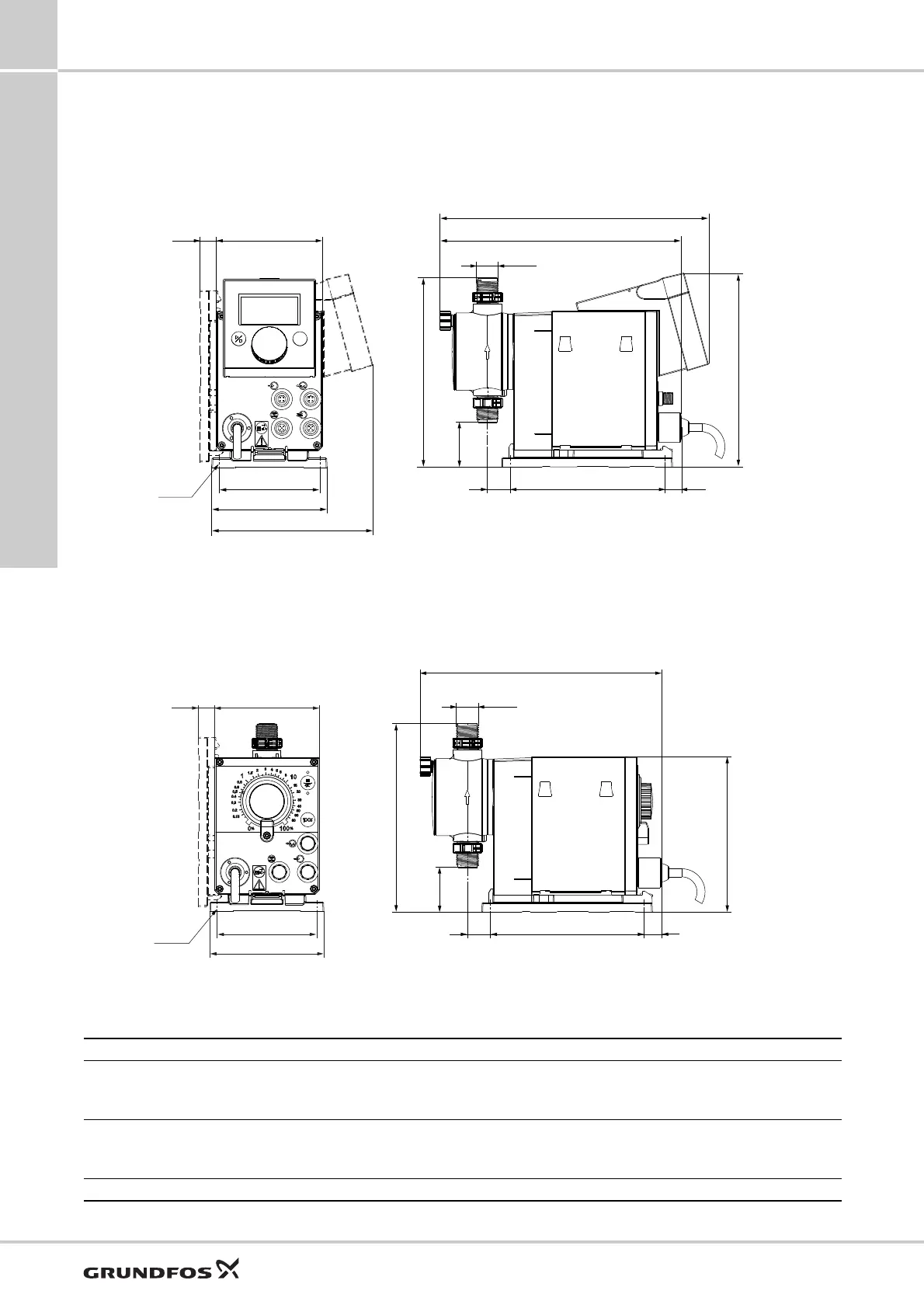

Fig. 21 DDA and DDC with front-fitted or side-fitted control cube
DDE
Fig. 22 DDE-PR with front-fitted control elements
TM04 1487 0710
100%
110
4 x Ø6
105
120
17.5
168
161
D
B
C
A1
G 5/8
A
200.8
17
TM04 1598 0312
161 17D
A1
B
C
161.5
G 5/8
4 x Ø6
110
105
120
17.5
Pump type A [mm] A1 [mm] B [mm] C [mm] D [mm]
DDA 7.5-16
DDC 6-10
DDC 9-7
DDE 6-10
280 251 196 46.5 24
DDA 12-10
DDA 17-7
DDC 15-4
DDE 15-4
280 251 200.5 39.5 24
DDA 30-4 295 267 204.5 35.5 38.5
