Accessories for small dosing pumps up to 60 l/h
55
Accessories for dosing pumps
8
Water meter
The in-line water meter with potential-free pulse signal
is suitable for use in flow-proportional dosing
applications.
• Qn 1.5 and Qn 2.5 meters are of the multi-jet, dry
dial type, for cold water up to 30 °C, or hot water up
to 90 °C.
• Qn 15 meters and up are of the helical vane type,
for cold water up to 50 °C, or hot water up to 120 °C.
• Max. pressure: 16 bar.
If the water meter is connected directly to the pump
pulse input, use a control plug (PN 96698715).
• Qn 1.5 to Qn 15 meters are threaded.
• Qn 40 to Qn 150 meters are flanged.
• Cable length: 3 m.

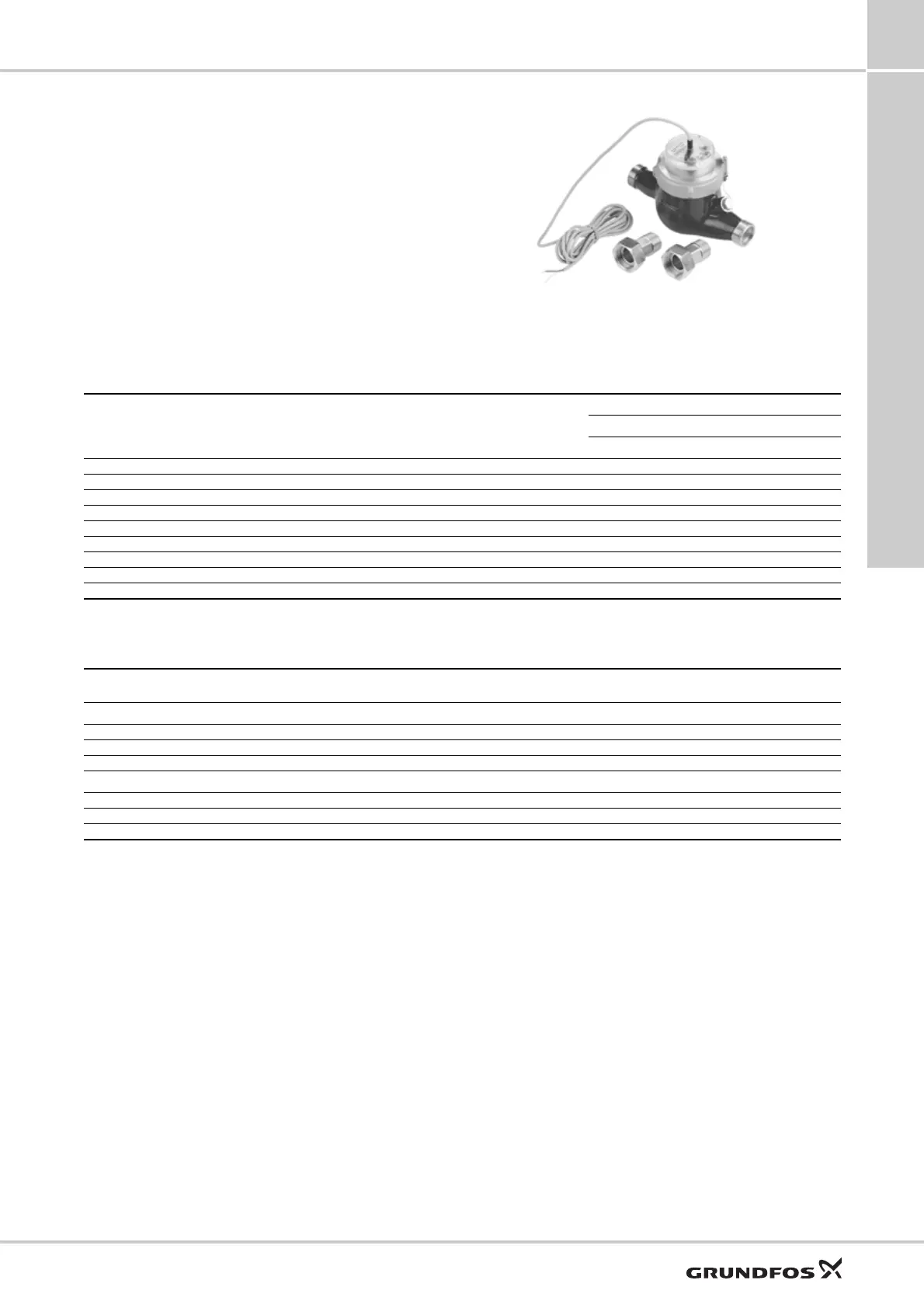

Fig. 59 Water meter
* Maximum load, Reed contact: 30 VAC/VDC, 0.2 A.
** Maximum load, Namur contact: 8-12 VDC, 1 kOhm (requires external power supply).
Dimensions
TM04 8317 0411
Qn
[m
3
/h]
Pulse rate
[l/pulse]
Maximum
short-period
capacity
[m
3
/h]
Maximum
pressure
[bar]
Transitional
capacity with
error ± 2 %
[l/h]
Minimum
capacity with
error ± 5 %
[l/h]
Product number
Maximum water temperature
30 °C 50 °C 90 °C 120 °C
1.5* 1 3 16 120 50 96446846 - 96446897 -
2.5* 2.5 5 16 200 70 96446847 - 96446898 -
15* 10 30 16 3000 450 - 96446848 - 96446899
1.5* 0.25 3 16 120 50 96482640 - 96482643 -
2.5* 0.25 5 16 200 70 96482641 - 96482644 -
15* 2.5 30 16 3000 450 96482642 - 96482645 -
40** 100 80 10 4000 700 - 96446849 - 96446900
60** 25 120 10 6000 1200 - 96446850 - 96446901
150** 100 300 10 12000 3000 - 96446851 - 96446902
Size Connections Installation kit connection
Port-to-port length
[mm]
Port-to-port length incl. kit
[mm]
Threaded connection
Qn 1.5 G 3/4" G 1/2" 165 245
Qn 2.5 G 1" G 3/4" 190 288
Qn 15 G 2.5 G 2" 300 438
Flanged connection
Qn 40 DN 80 225 -
Qn 60 DN 100 250 -
Qn 150 DN 150 300 -
