Grundfos DDC Data Booklet

Accessories for small dosing pumps up to 60 l/h
54
Accessories for dosing pumps
8
Collecting tray
The collecting tray is available in several sizes to suit
the respective dosing tank size. It collects chemicals
that might leak out of the tank, and protects the
environment.
• Material: PE
• Colour: transparent.

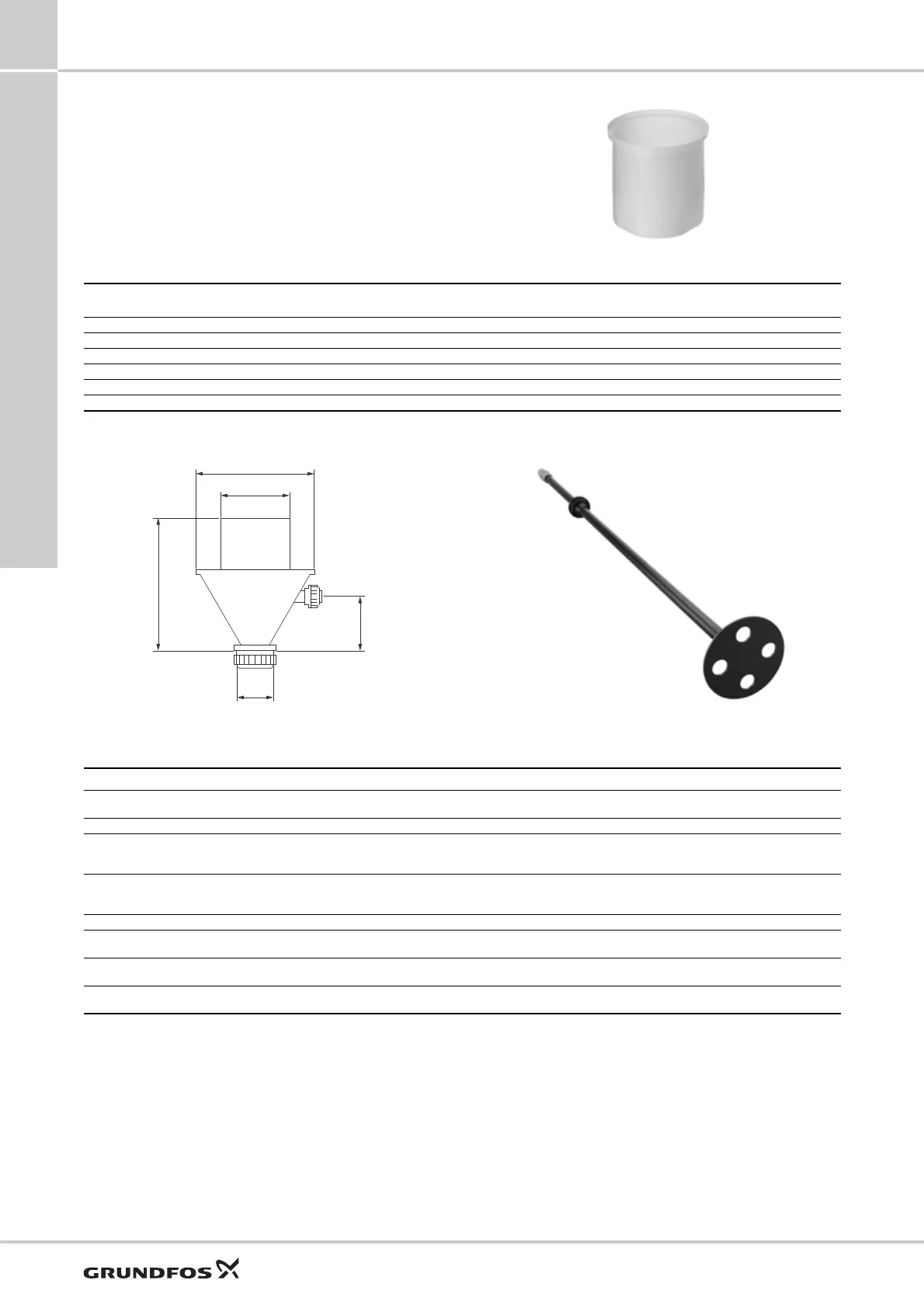

Fig. 56 Collecting tray
Accessories for dosing tanks
Fig. 57 Dissolving hopper, dimensions Fig. 58 Handheld mixer
Technical data
TM04 8316 0411
For tank size
[l]
Volume
[l]
Dimensions (diameter x height)
[mm]
Product number
60 80 500 x 545 96726831
100 120 500 x 700 96726832
200 210 770 x 595 98150059
300 400 770 x 960 96726834
500 500 860 x 980 95701272
1000 1000 1150 x 1080 96726836
TM04 8318 0411
Ø 270
Ø 140
Ø 70
283
120
TM04 8477 0512
Description Specifications Material Product number
Drain valve for installation in the threaded
sleeve of the dosing tank
Dosing tank connection G 3/4" PVC 96689132
Ventilation valve Spring-loaded, opening pressure 0.05 bar PVC / FKM / glass 96694401
Dissolving hopper for washing powders into
the dosing tank
Dosing tank connection: DN 40 through-bolt;
water connection: G 5/4", with union nut and inlay for PVC
pipe (cementing diameter 25 mm)
PVC 96726979
Handheld mixer for use in dosing tanks
Shaft length 1200 mm, length can be adapted to the
corresponding dosing tank, with DN 15 through-bolt for
connection at the dosing tank
PE 98133793
Set of floor-mounting brackets 4 floor-mounting brackets with fixing screws 98149921
Set of screws for mounting a pump on a
100-litre square tank
For pump types DDA, DDC, DDE Stainless steel 95730862
Set of screws for mounting a pump on a 60-,
100-, 200-, 300-, or a 500-litre cylindrical tank
For pump types DDA, DDC, DDE, DDI, DMX model 221 Stainless steel 98159495
Set of screws for mounting a pump on a
40-litre or a 1000-litre cylindrical tank
For pump types DDA, DDC, DDE, DDI, DMX model 221 PP 95730864

Grundfos DDC Specifications

General

Brand	Grundfos
Model	DDC
Category	Water Pump
Language	English
