Accessories for small dosing pumps up to 60 l/h
34
Accessories for dosing pumps
8
Installation kits for dosing pumps
An installation kit includes the following parts:
• Injection unit with spring-loaded non-return valve
(see page 43)
• PE outlet hose, 6 m
• PVC inlet hose, 2 m
• PVC deaeration hose, 2 m
• PE foot valve with strainer and weight, without or
with level indication (see page 38).

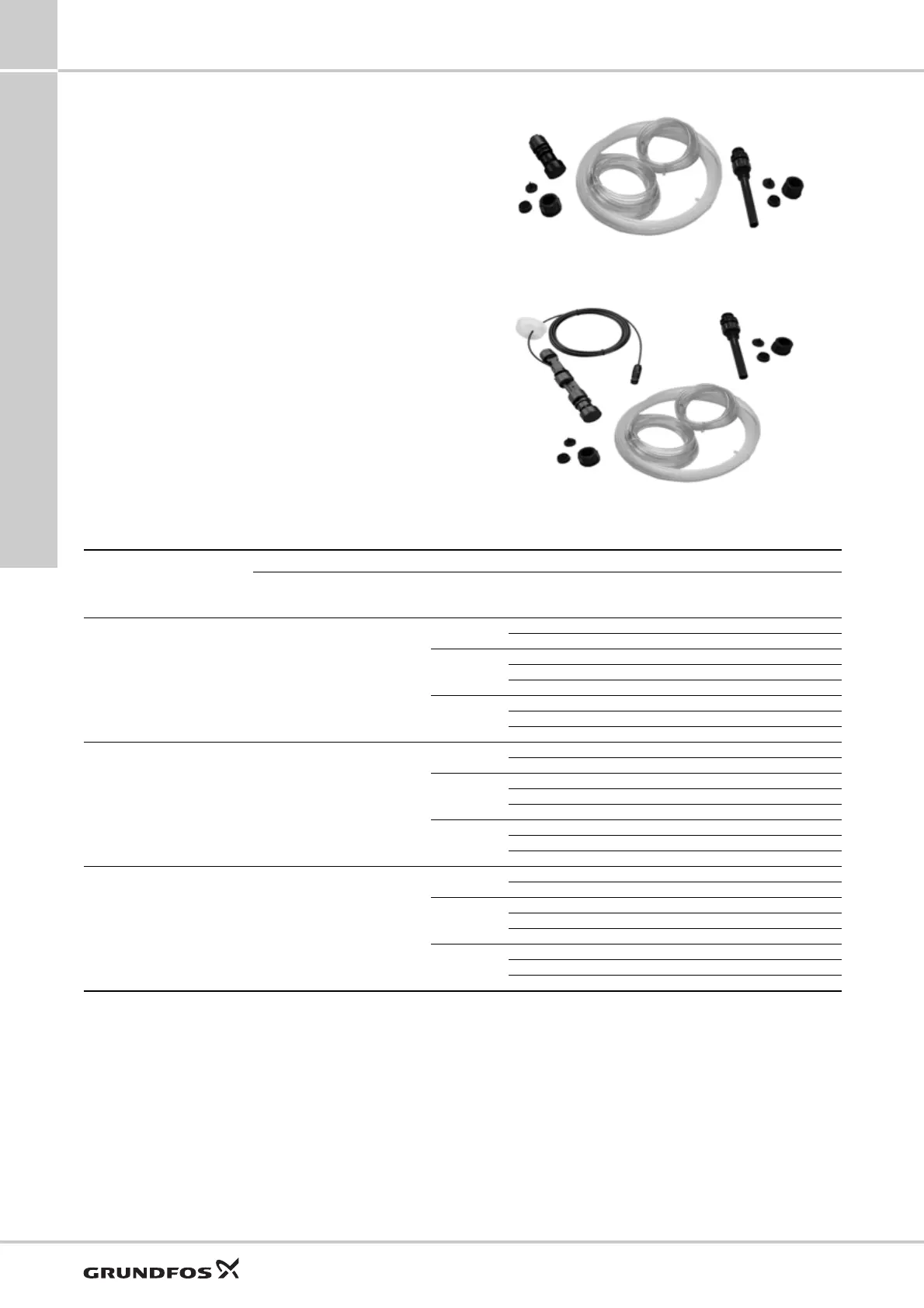

Fig. 24 Installation kit with foot valve without level
indication
Fig. 25 Installation kit with foot valve with level indication
Technical data
* Viscosity similar to water
TM04 1600 0312TM04 8469 0512
Max. flow rate*
[l/h]
Max. pressure
[bar]
Size Material of injection unit Product number
Inlet / outlet
hose
[mm]
Deaeration
hose
[mm]
Body Gasket Ball
Foot valve
without level
indication
Foot valve
with level
indication
7.5 13 4/6 4/6
PP
FKM Ceramic 95730440 95730464
EPDM Ceramic 95730441 95730465
PVC
FKM Ceramic 95730442 95730466
EPDM Ceramic 95730443 95730467
PTFE Ceramic 95730444 95730468
PVDF
FKM Ceramic 95730445 95730469
EPDM Ceramic 95730446 95730470
PTFE Ceramic 95730447 95730471
30 12 6/9 4/6
PP
FKM Ceramic 95730448 95730472
EPDM Ceramic 95730449 95730473
PVC
FKM Ceramic 95730450 95730474
EPDM Ceramic 95730451 95730475
PTFE Ceramic 95730452 95730476
PVDF
FKM Ceramic 95730453 95730477
EPDM Ceramic 95730454 95730478
PTFE Ceramic 95730455 95730479
60 99/124/6
PP
FKM Ceramic 95730456 95730480
EPDM Ceramic 95730457 95730481
PVC
FKM Ceramic 95730458 95730482
EPDM Ceramic 95730459 95730483
PTFE Ceramic 95730460 95730484
PVDF
FKM Ceramic 95730461 95730485
EPDM Ceramic 95730462 95730486
PTFE Ceramic 95730463 95730487
