Accessories for dosing pumps
8
Cables and plugs
The listed cables and plugs are suitable for the
connection of a pump to external control devices, such
as process controllers, flow meters, start/stop contacts
and level sensors.

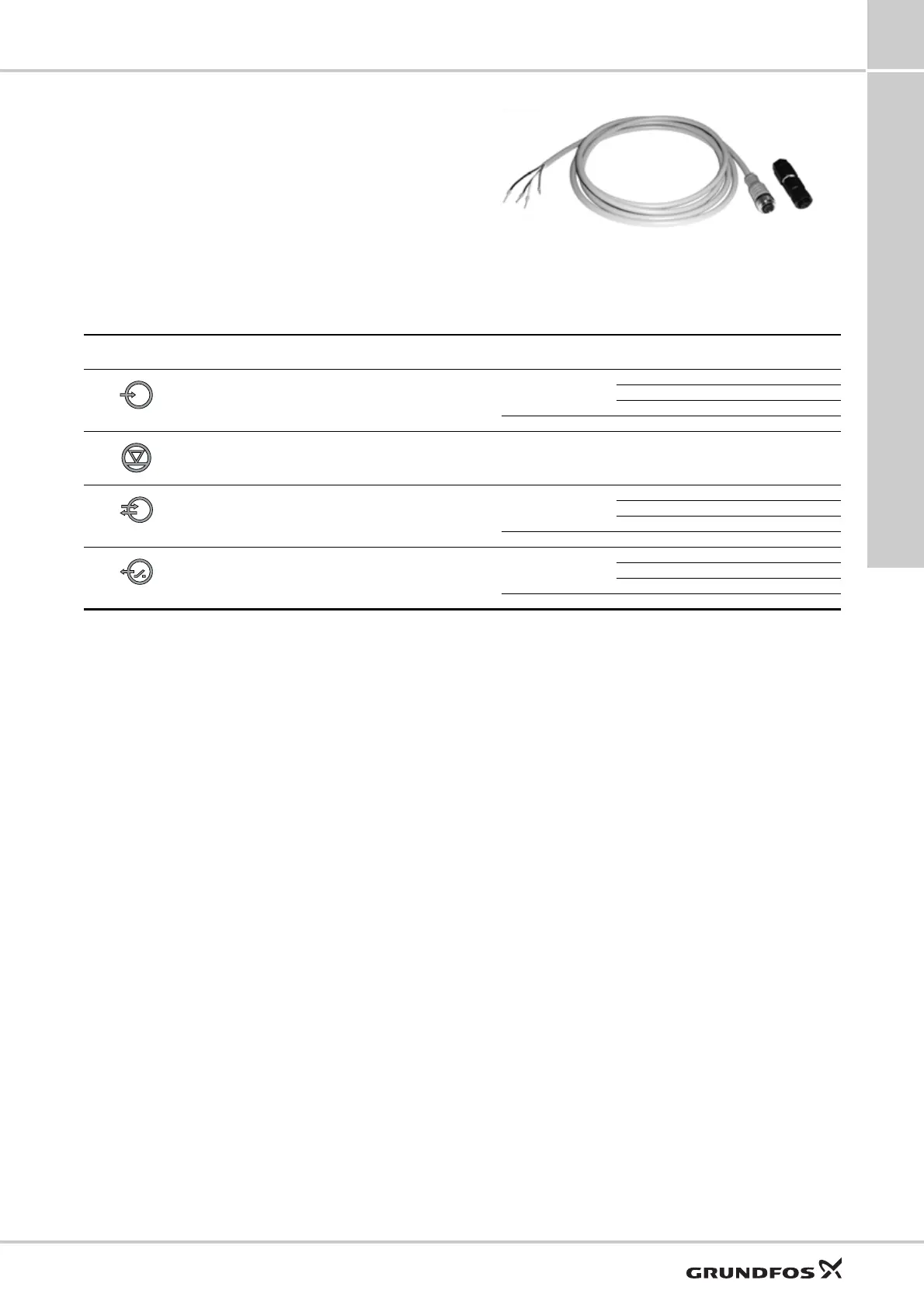

Fig. 26 Cable and plug
Technical data
• Cable material: PVC, 0.34 mm
2
• Plug size: M 12
TM04 8267 0411
Socket Application Pins Plug type
Cable length
[m]
Product number
Input
Analog pulse
External stop
4
Straight
2 96609014
5 96609016
No cable 96698715
Angled 2 96693246
Input
Low level
Empty tank
4 Straight No cable 96698715
Output Analog 5
Straight
2 96632921
5 96632922
No cable 96609031
Angled 2 96699697
Output
Relay 1
Relay 2
4
Straight
2 96609017
5 96609019
No cable 96696198
Angled 2 96698716
