Grundfos DDC Data Booklet

Accessories for small dosing pumps up to 60 l/h
48
Accessories for dosing pumps
8
Pump connection kits and inlay
kits
Retrofit pump connection kits and inlay kits for the
integration of Grundfos standard dosing pumps into
installations with various sizes of hoses or pipes.
A pump connection kit includes:
• 1 set of inlays
• 1 union nut.
The inlay kits are used to connect pumps and
accessories to pipes or hoses that differ from Grundfos
standard sizes.
An inlay kit includes:
• 2 sets of inlays.

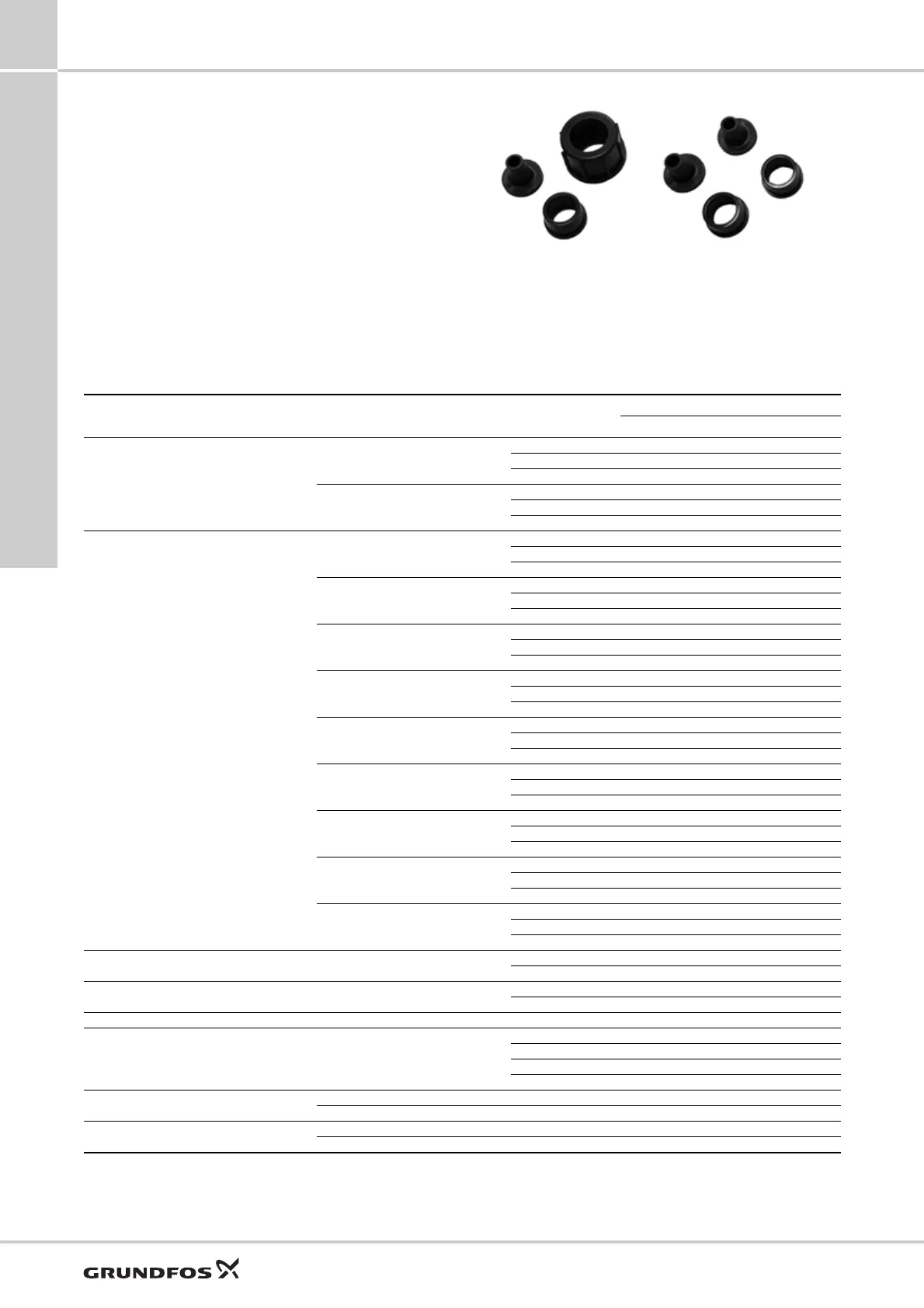

Fig. 47 Left: pump connection kit; right: inlay kit
Technical data
TM04 8294 0411 TM04 8295 0411
Connection type Size Material
Product number
Connection kit Inlay kit
Hose (cone and ring)
4/6 mm, 6/9 mm, 6/12 mm, 9/12 mm
PP 97691902 -
PVC 97691903 -
PVDF 97691904 -
0.17" x 1/4", 1/4" x 3/8", 3/8" x 1/2"
PP 97691905 -
PVC 97691906 -
PVDF 97691907 -
Hose (cone and ring)
4/6 mm, or 0.17" x 1/4"
PP 97702474 95730984
PVC 97702485 95730720
PVDF 97702495 95730729
4/9 mm
PP 98153922 98153977
PVC 98153944 98154006
PVDF 98153949 98154029
5/8 mm
PP 97702475 95730711
PVC 97702486 95730721
PVDF 97702496 95730730
6/8 mm
PP 97702476 95730712
PVC 97702487 95730722
PVDF 97702497 95730731
6/9 mm
PP 97702477 95730713
PVC 97702488 95730723
PVDF 97702498 95730732
6/12 mm
PP 97702478 95730714
PVC 97702489 95730724
PVDF 97702499 95730733
9/12 mm
PP 97702479 95730715
PVC 97702490 95730725
PVDF 97702500 95730734
1/4" x 3/8
PP 97702482 95730718
PVC 97702492 95730727
PVDF 97702503 95730737
3/8" x 1/2"
PP 97702483 95730719
PVC 97702493 95730728
PVDF 97702504 95730738
Hose (cutting ring type) 1/8" x 1/4"
PP 97702481 95730717
PVDF 97702502 95730736
Pipe welding External diameter 16 mm
PP 97702480 95730716
PVDF 97702501 95730735
Pipe cementing Internal diameter 12 mm PVC 97702491 95730726
Pipe, external thread 1/2" NPT
PP 97702484 -
PVC 97702494 -
PVDF 97702505 -
Stainless steel 97702508 -
Pipe, internal thread
Rp 1/4" Stainless steel 97702472 95730739
1/4" NPT Stainless steel 97702473 95730740
Pipe (cutting ring type)
4/6 mm Stainless steel 97702506 -
8/10 mm Stainless steel 97702507 -
