Only values corresponding to complete dosing
strokes (according to the calibration factor) can be
selected.
Example: If the calibration factor is 23.3 (= 0.233 ml/
stroke), the minimum settable value in timer or batch
mode will be 0.233 ml -> the next will be 0.466 ml ->
the next will be 0.699 ml, etc.
These steps will continue up to a value correspond-
ing to 100 dosing strokes. Above this value, the set-
ting range has standard steps as in other operating
modes.
If the calibration factor is changed after setting of
timer or batch mode, the pump will automatically
recalculate a new amount of dosing strokes per
batch and change the display value to the nearest
possible value compared to the first one set.

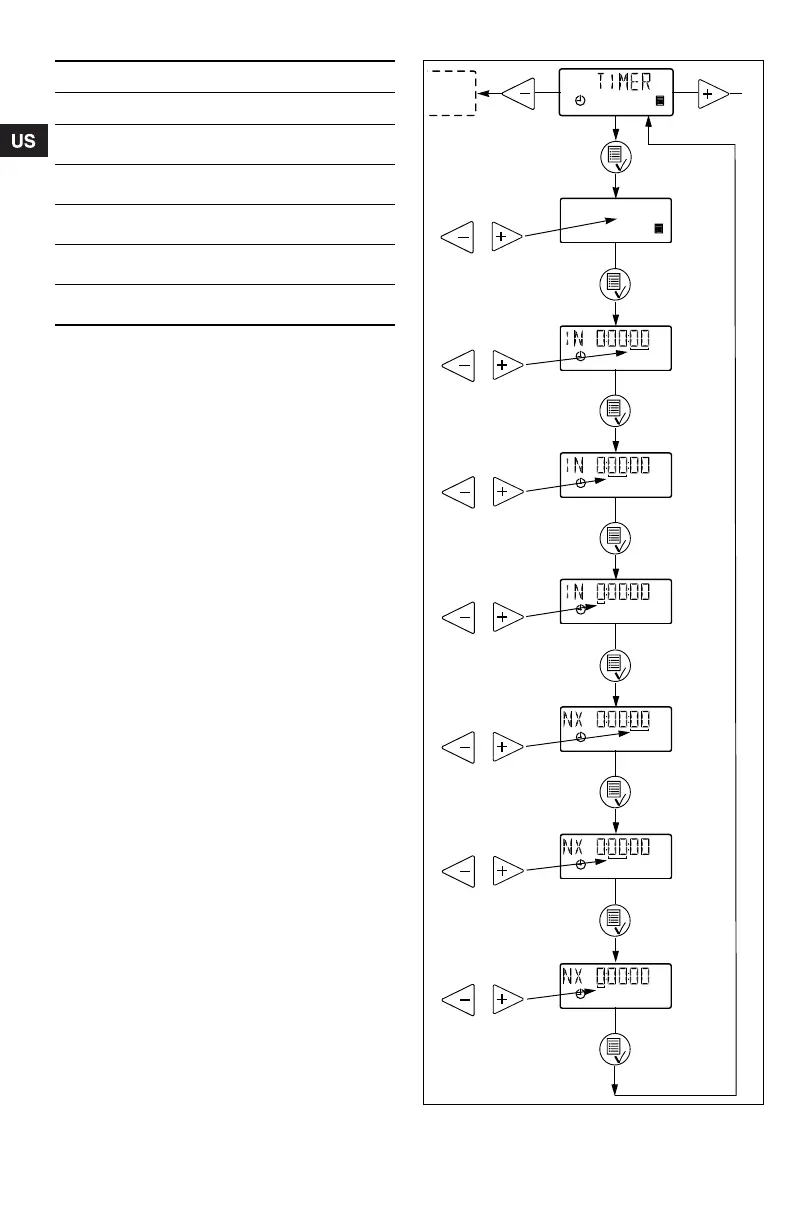

Fig. 12 Timer mode
Setting range
U.S. Gallons Metric
DME 2
0.0000067 -
1.32 gallons/batch
0.23 ml/batch -
5 l/batch
DME 8
0.00018 -
3.96 gallons/batch
0.69 ml/batch -
15 l/batch
DME 12
0.00029 -
6.34 gallons/batch
1.11 ml/batch -
24 l/batch
DME 19
0.00053 -
9.77 gallons/batch
2.04 ml/batch -
37 l/batch
DME 48
0.00132 -
25.36 gallons/batch
5.3 ml/batch -
96 l/batch
Set quantity
per batch
Set IN value
in minutes
Set IN value
in hours
Set IN value
in days
Set NX value
in hours
Set NX value
in minutes
Set NX value
in days
