Grundfos MAGNA3 Series User Manual

English (US)
12

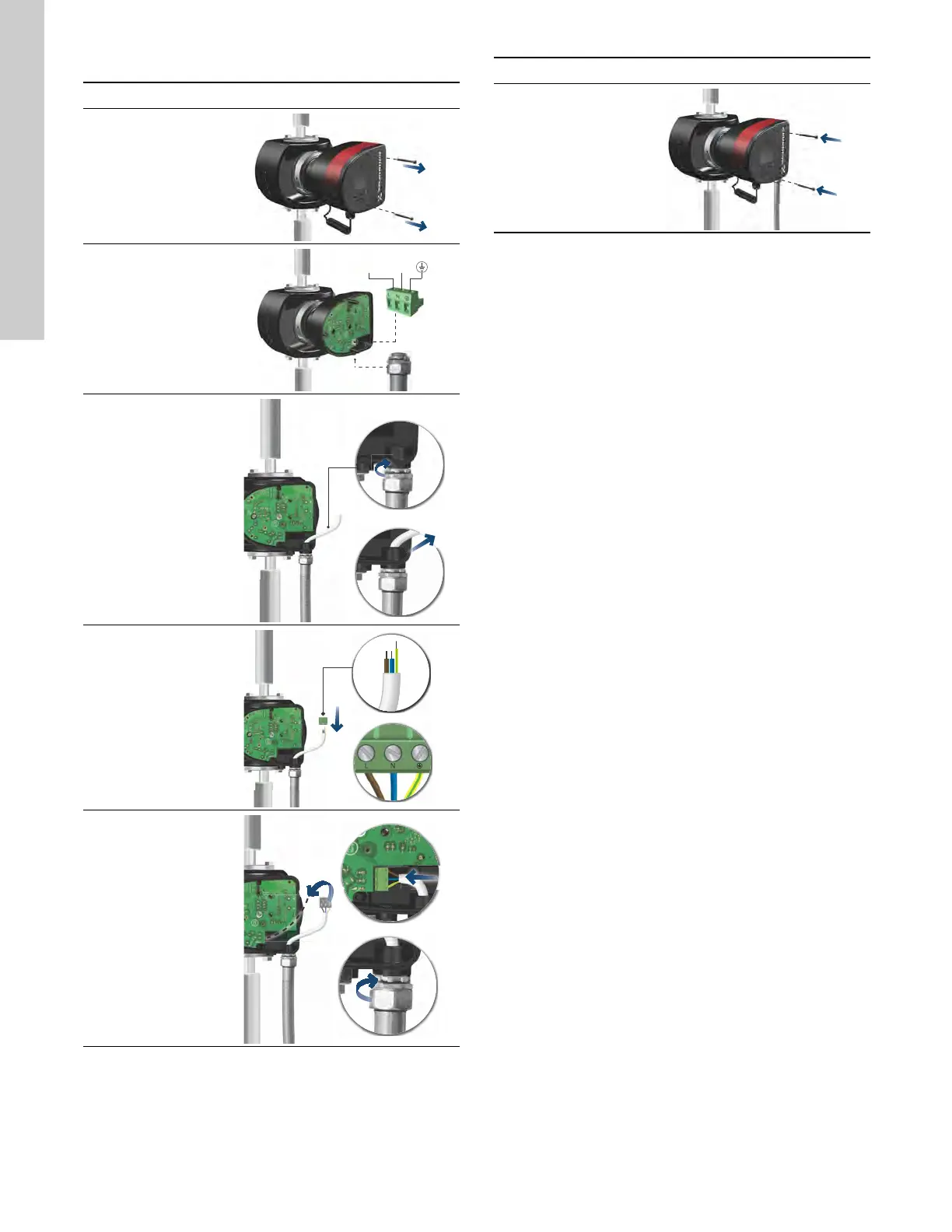

5.3 Connection to the power supply (models 32-XX)
Step Action Illustration
1
Remove two
screws.
Remove the front
cover from the
control box and
access the power
connection.
TM06 1102 1614
2
Locate the power
plug inside.
TM06 1103 1614
3
Connect the
conduit to the
control box.
Pull the power
supply cable
through the
conduit.
TM06 1104 1614
5
Strip the cable as
illustrated.
Connect the cable
conductors to the
power supply plug.
L - L or L1
Ground - Ground
N - N or L2
TM06 1105 1614
6
Insert the power
plug into its mating
connector.
Tighten the
conduit.
TM06 1106 1614
L (L1) N (L2)
7
Refit the front
cover.
TM06 1107 1614
Step Action Illustration

Grundfos MAGNA3 Series Specifications

General

Temperature Range	-10 °C to +110 °C
Insulation Class	F
Series	MAGNA3
Max. Liquid Temperature	110 °C
Power Supply	1x230V, 3x400V
Approvals	CE
Pump Housing	Cast iron
Installation	Inline
Communication	Modbus RTU, BACnet MS/TP
Ambient Temperature	0 °C to 40 °C
Material	Cast iron
