18.3 Fitting the CIM module

Warning

Before fitting the module, switch off the power supply. Make sure that the power supply cannot be accidentally

switched on.

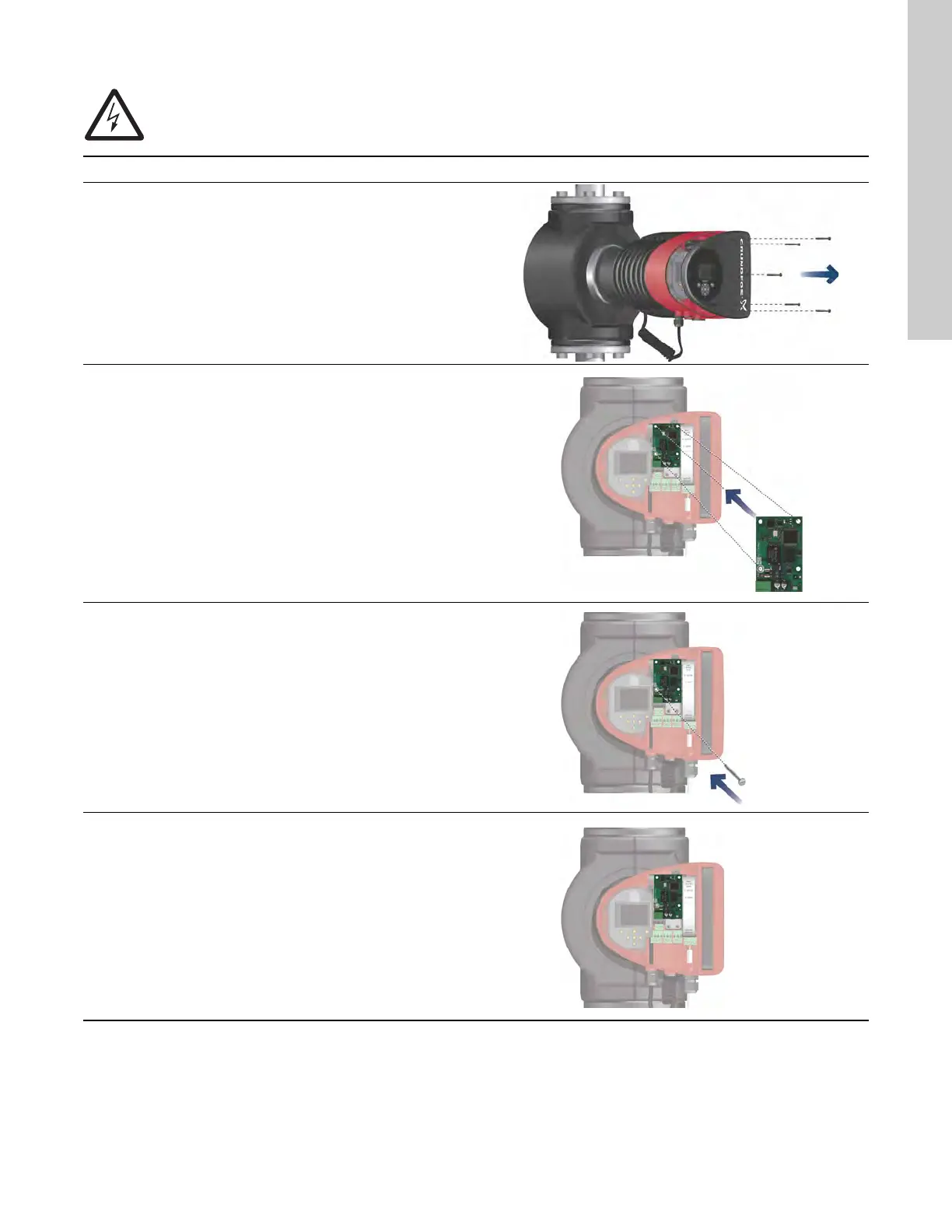

Step Action Illustration

1 Remove the front cover from the control box.

TM05 2875 0912

2 Fit the CIM module as illustrated and click it on.

TM05 2914 1112

Fit and tighten the screw holding the CIM module and

secure the earth connection.

TM05 2912 1112

For connection to fieldbus networks, see separate

installation and operating instructions for the desired CIM

module.

TM05 2913 1112
