Performance curves and technical data
9
55

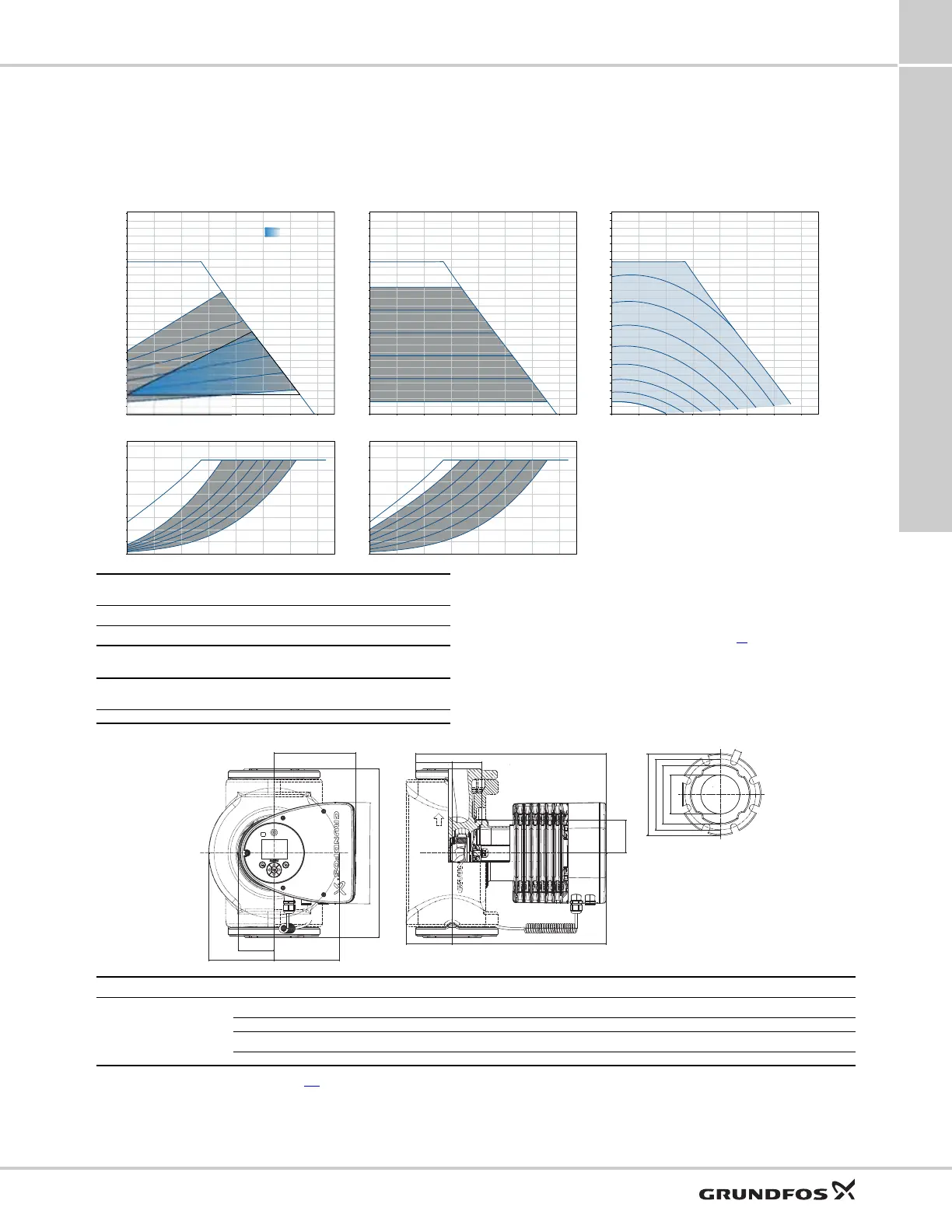

MAGNA3 Performance curves and technical data
MAGNA3 100-120 F (N) 1 x 230 V, 60 Hz
For product numbers, see page 62.
H
[ft]
0
4
8
12
16
20
24
28
32
36
40
44
48
Q [US gpm]0 50 100 150 200 250 300
2 V
3 V
4 V
5 V
6 V
7 V
8 V
9 V
10 V
H
[ft]
0
4
8
12
16
20
24
28
32
36
40
44
48
Q [US gpm]0 50 100 150 200 250 300
P1
[W]
0
200
400
600
800
1,000
1,200
1,400
1,600
H
[ft]
0
4
8
12
16
20
24
28
32
36
40
44
48
Q [US gpm]0 50 100 150 200 250 300
P1
[W]
0
200
400
600
800
1,000
1,200
1,400
1,600
AUTOADAPT
Proportional pressure Constant pressure 0-10 volts*
Speed
P1 [W]
230 V
I
1
[A]
230 V
Min. 31 0.32
Max. 1564 6.78
The pump incorporates overload protection.
Net weights
[lb (kg)]
Ship. vol.
[ft
3
(m
3
)]
76.8 (34.8) 3.53 (0.1)
* External setpoint influence shown with a
setpoint of H
max
Connections: GF100 flanges.
See Pipe connections, page 61.
System pressure: Max. 175 psi (1.2 MPa) (12 bar).
Liquid temperature: 14 to 230 °F (-10 to +110 °C) (TF 110).
Specific EEI: 0.17.
TM05 7650 1413
B2
L5 L1
B7
B4
B6
H3
H1 H6
H4 H2
B1
D4 D3 D2 D1
D5
Pump type Dimensions [in (mm)]
MAGNA3 100-120 F (N)
L1 L5 B1 B2 B4 B6 B7 D1 D2
17.72 (450) 8.03 (204) 3.31 (84) 6.46 (164) 2.87 (73) 7.01 (178) 7.01 (178) 3.94 (100) 6.14 (156)
D3 D4 D5 H1 H2 H3 H4 H6
7.52 (191) 8.66 (220) 0.75 (19) 4.02 (102) 12.99 (330) 17.01 (432) 4.72 (120) 3.11 (79)

Grundfos magna3 Specifications

General

Liquid Temperature Range	-10°C to +110°C
Max Operating Pressure	16 bar
Type	Circulator Pump
Series	MAGNA3
Operating Temperature Range	-10°C to +110°C
Ambient Temperature Range	0°C to +40°C
Protection Class	IPX4D
Power Supply	1 x 230 V, 3 x 230 V, 3 x 400 V
Control Mode	Constant pressure, Proportional pressure
Communication	Modbus RTU
Pump Housing	Cast Iron
Impeller	Composite
Enclosure Class	X4D
Approvals	CE, EAC
Connection	Flange
Weight	Varies depending on model
Power Consumption	Varies depending on model
