3.2 Dimensions

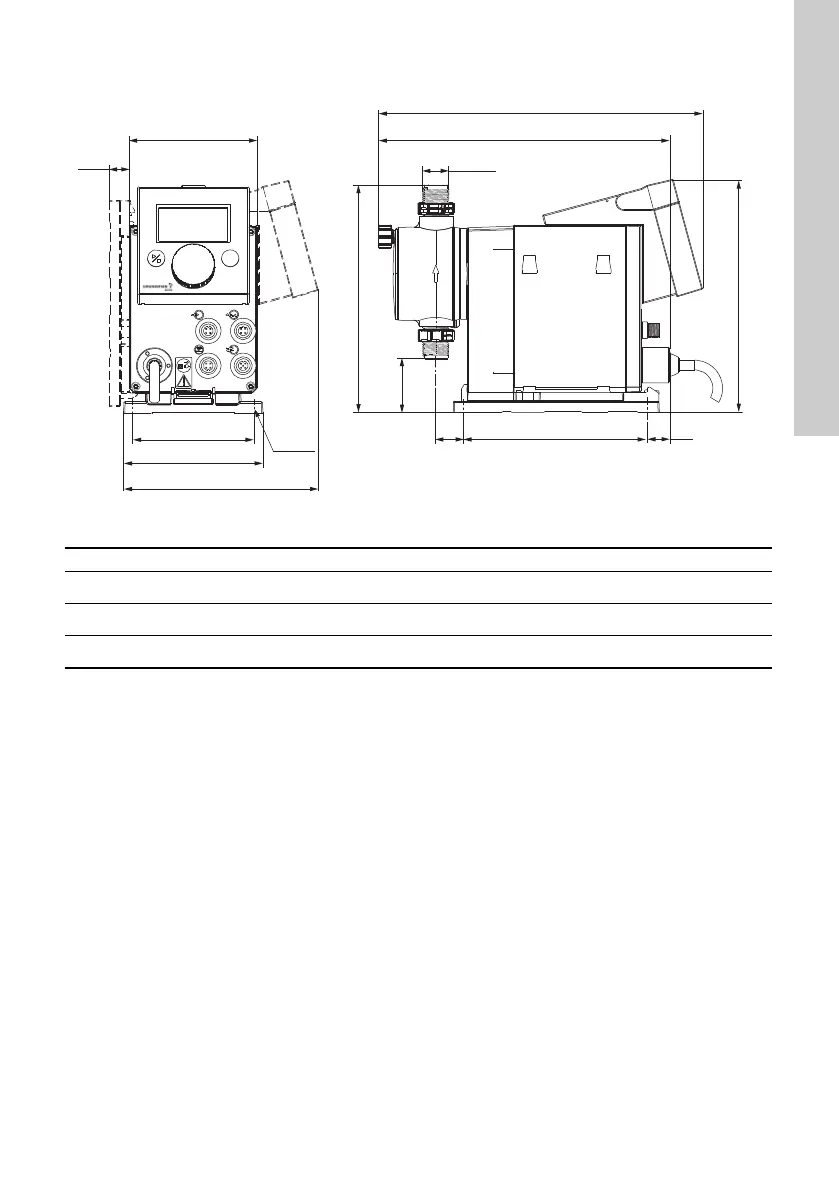

Fig. 4 Dimensional drawing
TM04 1103 0110
161
17
D
B
C
A1
G 5/8"
A
200.8
100%
110
4 x Ø6
105
120
17.5
168
Pump type A [mm] A1 [mm] B [mm] C [mm] D [mm]
DDA 7.5 - 16 280 251 196 46.5 24
DDA 12-10/17-7 280 251 200.5 39.5 24
DDA 30-4 295 267 204.5 35.5 38.5
