English (GB)
23

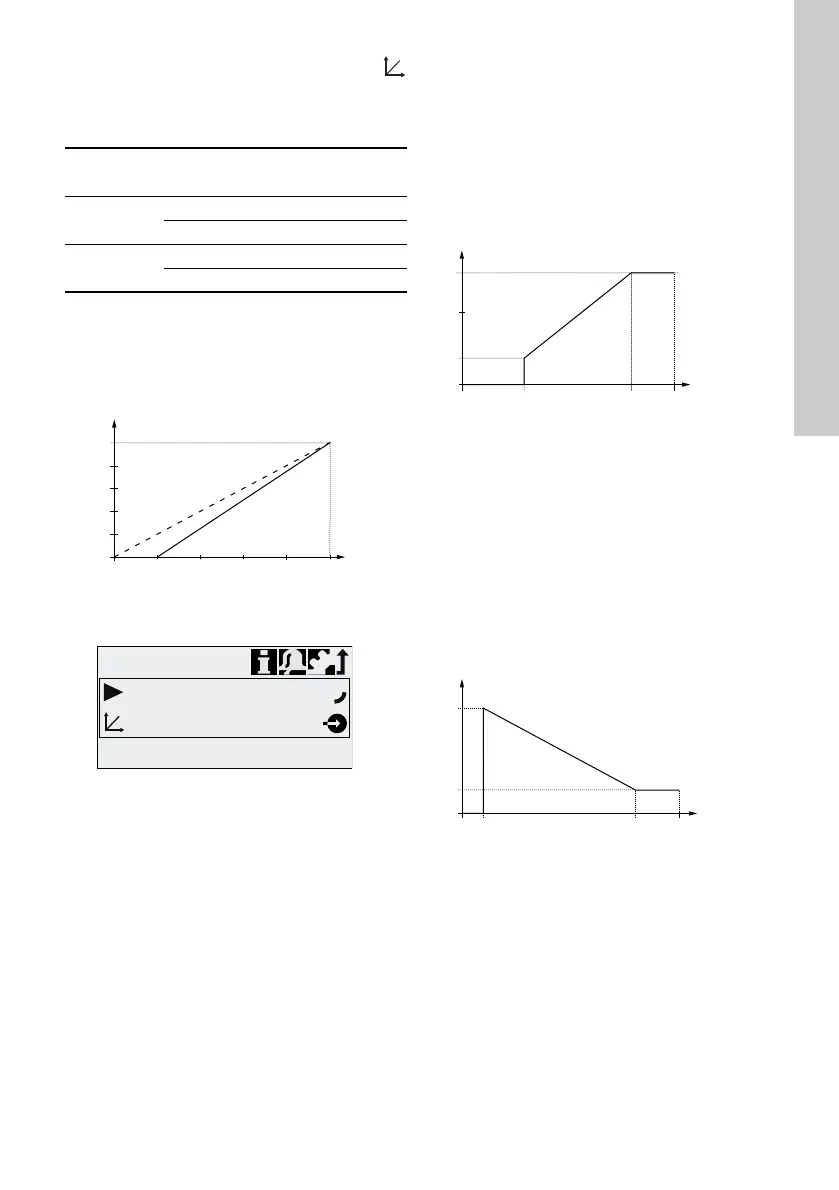

6.4.3 Analog 0/4-20 mA
In this operation mode, the pump doses
according to the external analog signal. The
dosing volume is proportional to the signal input
value in mA.
If the input value in operation mode 4-20 mA falls
below 2 mA, an alarm is displayed and the pump
stops. A cable break or signal transmitter error has
occured. The ’Cable break’ symbol is displayed in
the ’Signal and error display’ area of the display.
Fig. 17 Analog scaling
Fig. 18 Analog operation mode
Set analog scaling
Analog scaling refers to the assignment of the
current input value to the dosing flow.
Analog scaling passes through the two reference
points (I
1
/ Q
1
) and (I
2
/ Q
2
), which are set in the
’Setup > Analog scaling’ menu. The dosing flow is
controlled according to this setting.
Example 1 (DDA 7.5 - 16)
Analog scaling with positive gradient:
Fig. 19 Analog scaling with pos. gradient
In example 1, the reference points I
1
=6mA,
Q
1
= 1.5 l/h and I
2
= 16 mA, Q
2
= 7.5 l/h have been
set.
From 0 to 6 mA analog scaling is described by a line
that passes through Q = 0 l/h, between 6 mA and
16 mA it rises proportionally from 1.5 l/h to 7.5 l/h
and from 16 mA onwards it passes through
Q=7.5l/h.
Example 2 (DDA 7.5-16)
Analog scaling with negative gradient
(Operation mode 0 - 20 mA):
Fig. 20 Analog scaling with neg. gradient
In example 2, the reference points I
1
= 2 mA,
Q
1
= 7.5 l/h and I
2
= 16 mA, Q
2
= 1.3 l/h have been
set.
From 0 to 2 mA analog scaling is described by a line
that passes through Q = 0 l/h, between 2 mA and
16 mA it drops proportionally from 7.5 l/h to 1.3 l/h
and from 16 mA onwards it passes through
Q
2
=1.3l/h.
Operation
mode
Input value Dosing flow
4 - 20 mA
≤ 4.1 mA 0 %
≥ 19.8 mA 100 %
0 - 20 mA
≤ 0.1 mA 0 %
≥ 19.8 mA 100 %
TM04 1120 2010
TM04 1127 1110
0
Q [%]
0 - 20 mA
4 - 20 mA
[mA]
4
2081216
100
80
0
60
40
20
Operation
6.5
ml/h
0-20 mA 17.14 mA
TM04 1160 2010
TM04 1101 2010
Q [l/h]
16
1.5
6
7.5
5
0
020I [mA]
0
0
20
16
1,3
2
7,5
I [mA]
Q [l/h]
