GSi Chain Disk APCD-500 User Manual

16
APCD-500, rev10
APCD-500

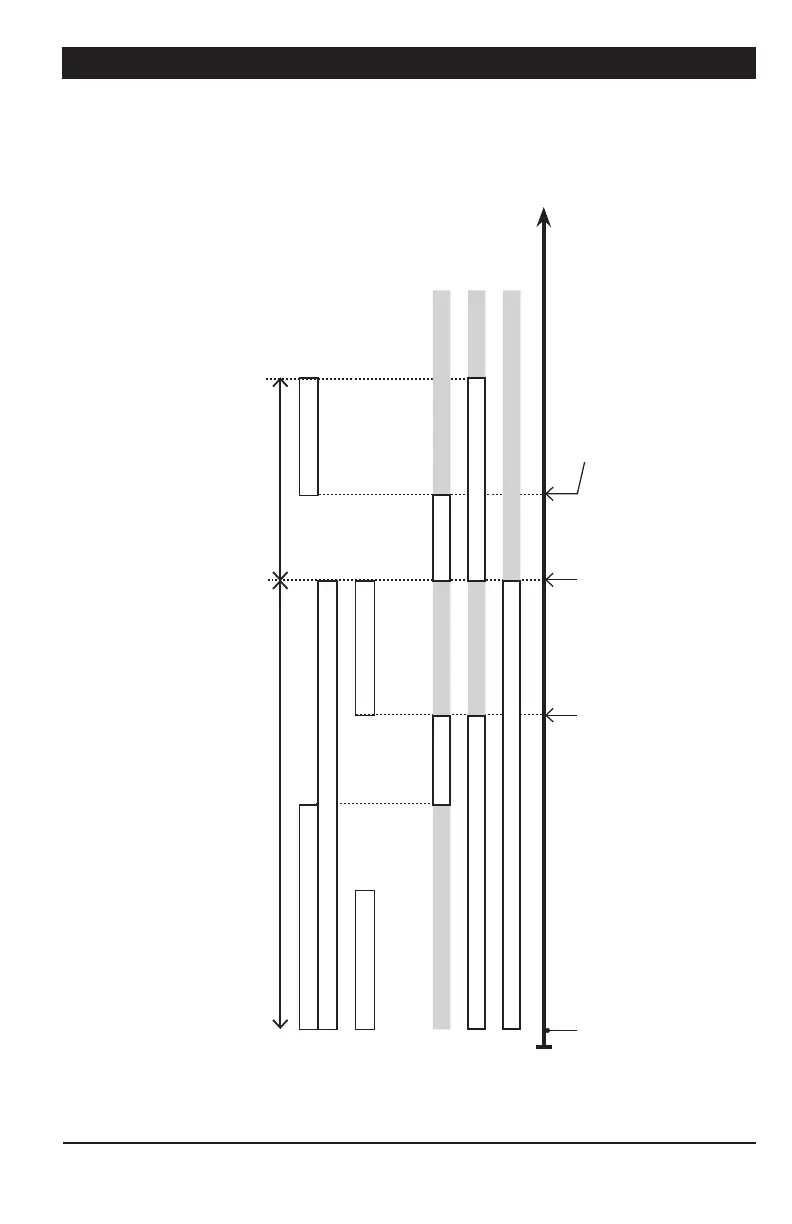

The proximity sensor on the Master Chain Disk System line after the last drop detects feed for 5 seconds
Time
(MA) Auger delay (MA) Shutdown delay (MA) Feed bypass delay (automatically dened by the controller) (SL) Feed bypass delay (SL) Shutdown delay OFF ON OFF ON OFF ON OFF ON OFF ON OFF
The proximity sensor
on the slave Chain
Disk System line after
the last drop detects
feed for 5 seconds
The same process is repeated to fill the next slave Chain Disk System (if applicable)
A new feed cycle starts (Cycle Time is reached)
APCD-500
Parameters
The Master Chain Disk System is
being filled
Mstr ChainD
Status
Slave ChainD
Status
Bin Auger
Status
GRAPH B Chain Disk Setup : Cascaded Chain Disk Systems Feed Distribution Mode : Timer Proximity sensor? : Yes
Slave Chain Disk Systems are being
filled in turns, starting with the
farthest one
