4.2.2. Independent Chain Disk
Systems with a Common Auger

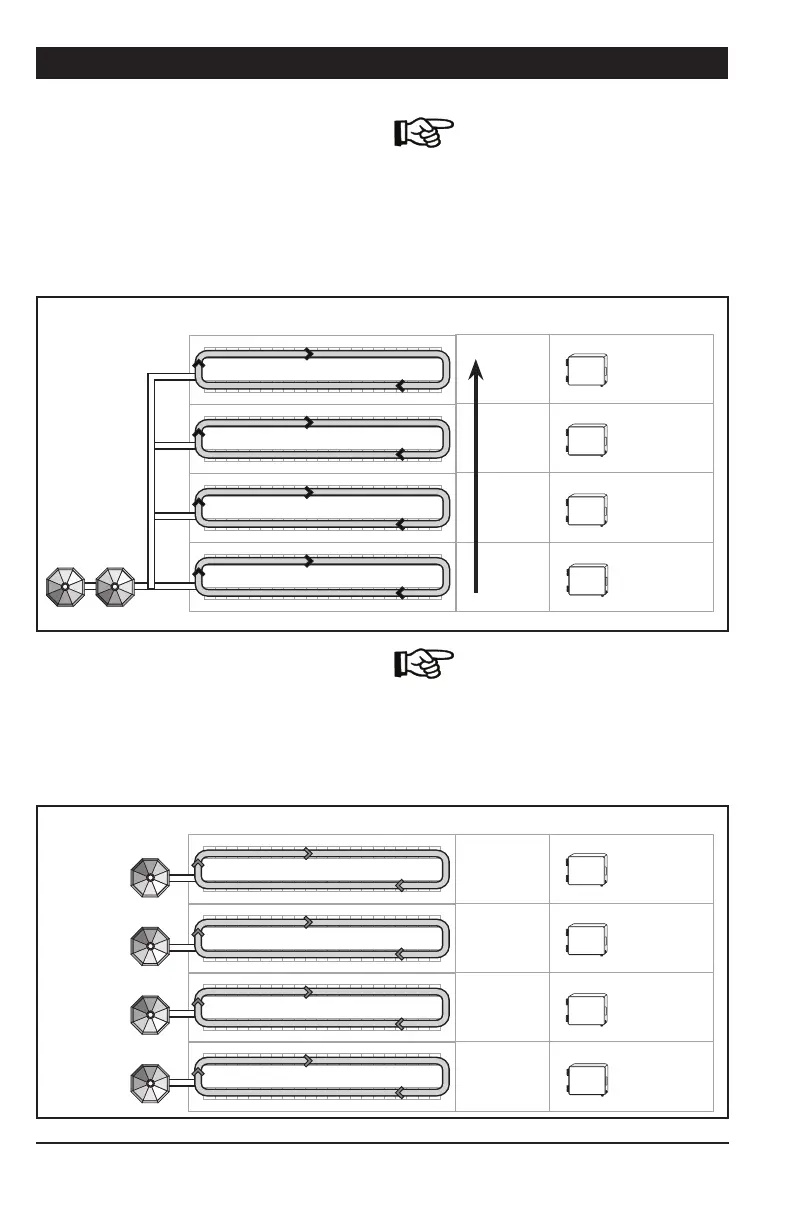

Independent Chain Disk Systems that share a
common bin auger are filled following the nu-
merical order: the master Chain Disk System
is filled first, followed by Slave System #1,
Slave System #2, etc.
Refer to section 4.4.3 & 4.4.4 to get
information about the filling process
in this Chain Disk System setup.
Refer to section 4.4.4 & 4.4.5 to get
information about the filling process
in this Chain Disk System setup.
Last
Third
Second
First
APCD-500-S
ID 3
APCD-500-S
ID 2
APCD-500-S
ID 1
APCD-500
MASTER
Chain Disk Systems Filling Order Controller & ID#
Bins
4.2.3. Independent Chain Disk
Systems with Individual Augers
Independent Chain Disk Systems that all have
their own bin auger are being filled simultane-
ously when a feed cycle starts. Each Chain
Disk System filled according to its respective
parameter settings.
Simultaneous
Simultaneous
Simultaneous
Simultaneous
APCD-500-S
ID 3
APCD-500-S
ID 2
APCD-500-S
ID 1
APCD-500
MASTER
Chain Disk Systems Filling Order Controller & ID#
Bins
