APCD-500, rev10
APCD-500
GRAPH G
Chain Disk Setup : Independent Chain Disk Systems
Bin Auger Setup : Individual augers
Feed Distribution Mode : Continuous
Proximity sensor? : Yes
(MA) Continuous feeding delay (MA) Auger delay (MA) Shutdown delay
(MA) Feed bypass delay
OFF ON OFF
OFF ON OFF
(SL) Continuous feeding delay (SL) Auger delay (SL) Shutdown delay
(SL) Feed bypass delay
OFF ON OFF
OFF ON OFF
The slave’s proximity
sensor detects feed for
5 seconds
The master’s proximity
sensor detects feed for
5 seconds
Time
APCD-500
Parameters
APCD-500
Parameters

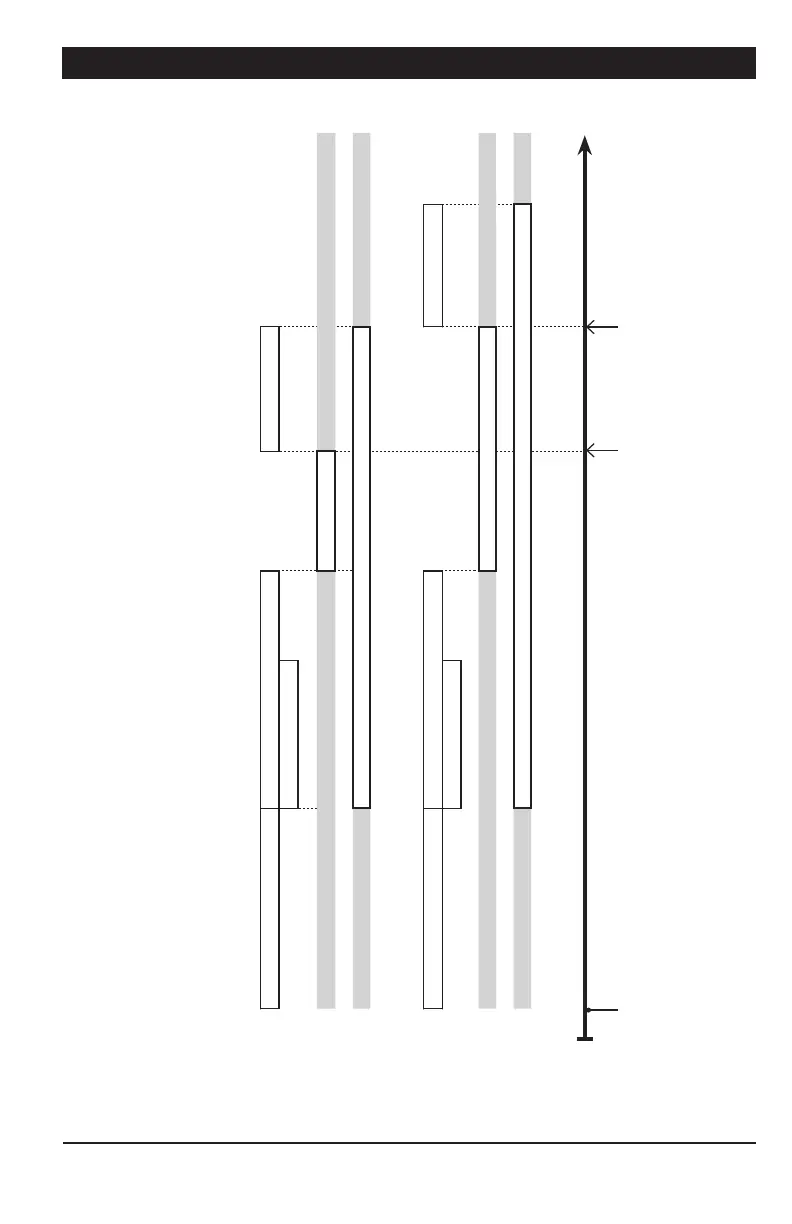

Mstr ChainD
Status
Slave ChainD
Status
Slave Bin
Auger Status
Master Bin Auger
Status
A new feed cycle starts
The master proximity stops detecting feed
(if proxy is in the drop)
or
Right after the end of the previous cycle
(if proxy is on the Master Chain Disk System
line after the last drop).
