APCD-500, rev10
APCD-500

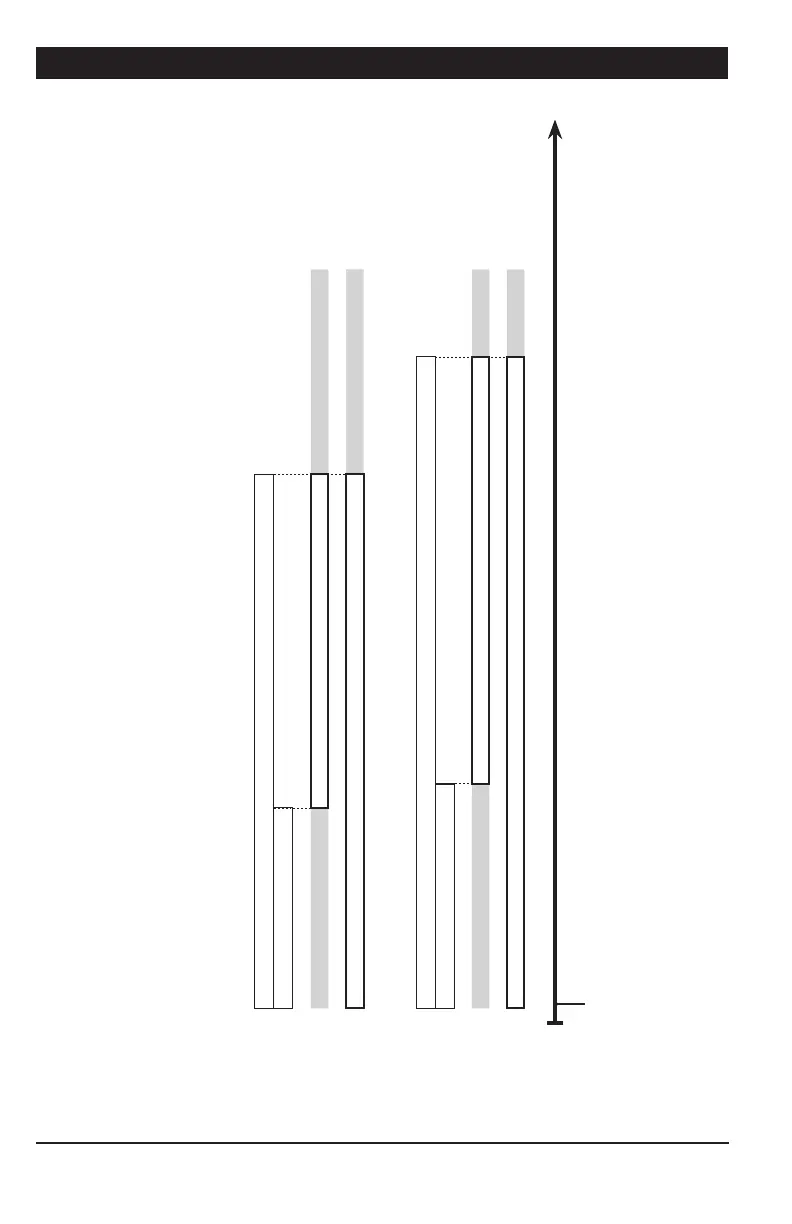

GRAPH I Chain Disk Setup : Independent Chain Disk Systems Bin Auger Setup : Individual augers Feed Distribution Mode : Timer Proximity sensor? : No
(Master) Run Time (Master) Auger Delay OFF ON OFF ON OFF (Slave) Run Time (Slave) Auger Delay OFF ON OFF ON OFF
Time
APCD-500
Parameters
APCD-500
Parameters
Mstr ChainD
Status
Slave ChainD
Status
Slave’s Bin
Auger Status
Master Bin Auger
Status
INDEPENDENT MODE, INDIVIDUAL AUGER, WITH TIMER
A feed cycle starts (Cycle Time is reached)
