6. Parts List

70 PNEG-1156ETL Design III Series Grain Stir-Ator CSA

DMC 440V - Gear Motor (502A0045)

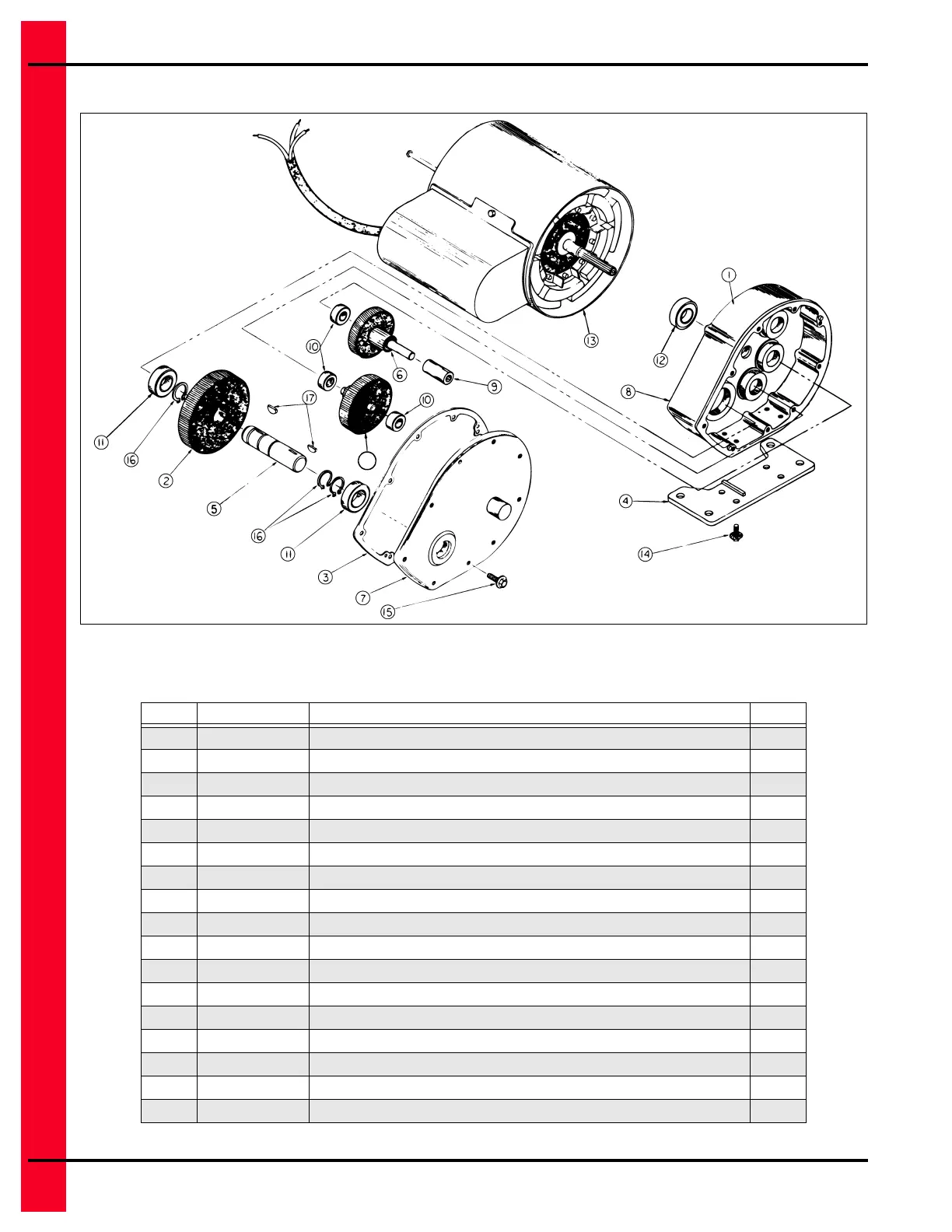

DMC 440V - Gear Motor (502A0045) Parts List

(NOTE: This gear motor no longer used in new production beginning October 2008.)

Ref # Part # Description Qty

1 501A0016 Gear Assembly, 18T and 60T 1

2 501A0017 Gear, 80T 1

3 501A0018 Cover Gasket 1

4 502A0001 Gear Motor Base 1

5 502A0002 Output Shaft 1

6 502A0006 Gear Assembly, 15T and 63T 1

7 502A0008 Cover, with Roller Clutch and Bearing 1

8 502A0031 Transmission Gear Housing 1

9 PT0241 Roller Clutch and Bearing, 3/8" 1

10 PT0361 Bearing, 3/8" 3

11 PT0376 Output Shaft Bearing, 3/4" 2

12 PT0377 Radial Ball Bearing, 17 mm (36' Diameter Bin and Larger Only) 1

13 3EL4009 Motor Assembly, 1/8 HP - 440 Volt 1

14 S-8857 Flange Bolt, 1/4"-20 x 1/2" ZN Grade 5 4

15 S-9063 Flange Bolt, 1/4"-20 x 1" ZN Grade 5 9

16 3FH0562 Retaining Ring, 3/4" 3

17 S-8105 Woodruff Key, 3/16" x 5/8" 2
