4. Assembly and Installation
20 PNEG-1156ETL Design III Series Grain Stir-Ator CSA
Track Installation

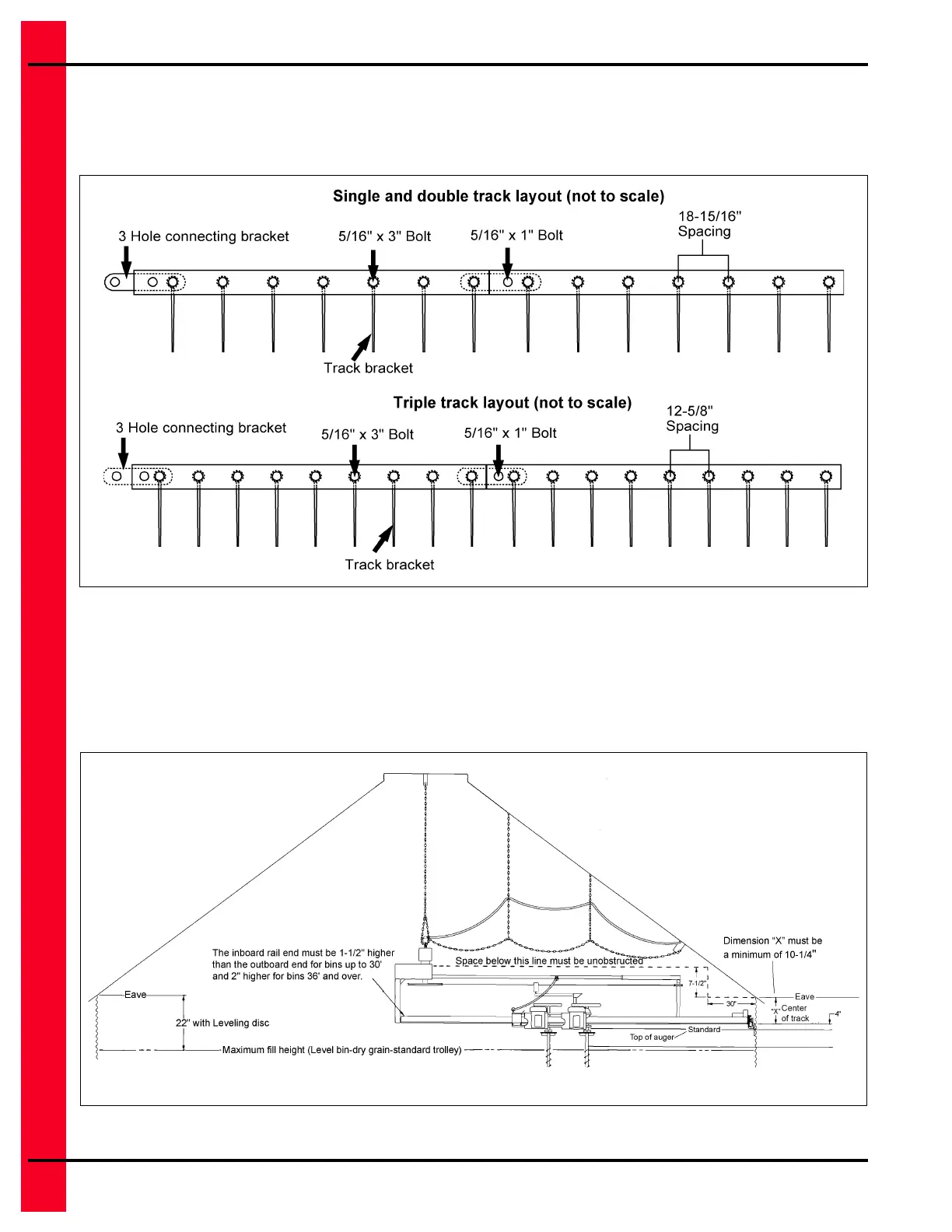

NOTE: The wall track has two (2) different hole spacings: 18-15/16" on the single and double auger units
and 12-5/8" on the triple auger units. (See Figure 4A.)
Figure 4A
1. The track is installed 10-1/4" distance from the eave of the bin to the center line of the track. Bins with
steeply pitched or domed roofs may allow the 10-1/4" distance to be reduced; roofs with low or flat
profiles may require more clearance. Reinforcements to the roof or roof ladder which might interfere
with the movement of the Stir-Ator should be trimmed. (See Figure 4B.) If this cannot be done, the
10-1/4" distance from the eave to the track bolt center line must be increased proportionately.
Figure 4B
Design III Stir-Ator
