4. Assembly and Installation
PNEG-1156ETL Design III Series Grain Stir-Ator CSA 37
Track Gear Motor
1. Cut lead-in wire loose from yoke pipe by cutting the zip tie. Be careful not to damage the wire.
2. Unwrap gear motor wire from the yoke tube and strip the end. Remove the fuse cover from the
junction box using a phillips screwdriver. Insert wire through connector and connect the wire with fuse
holder wires using yellow wire connectors. Replace cover assembly and secure the wire to the frame
rails with cord clips which push over the frame rail flange. Wire black to black, white to white and
green to green. (See Figure 4AG.)

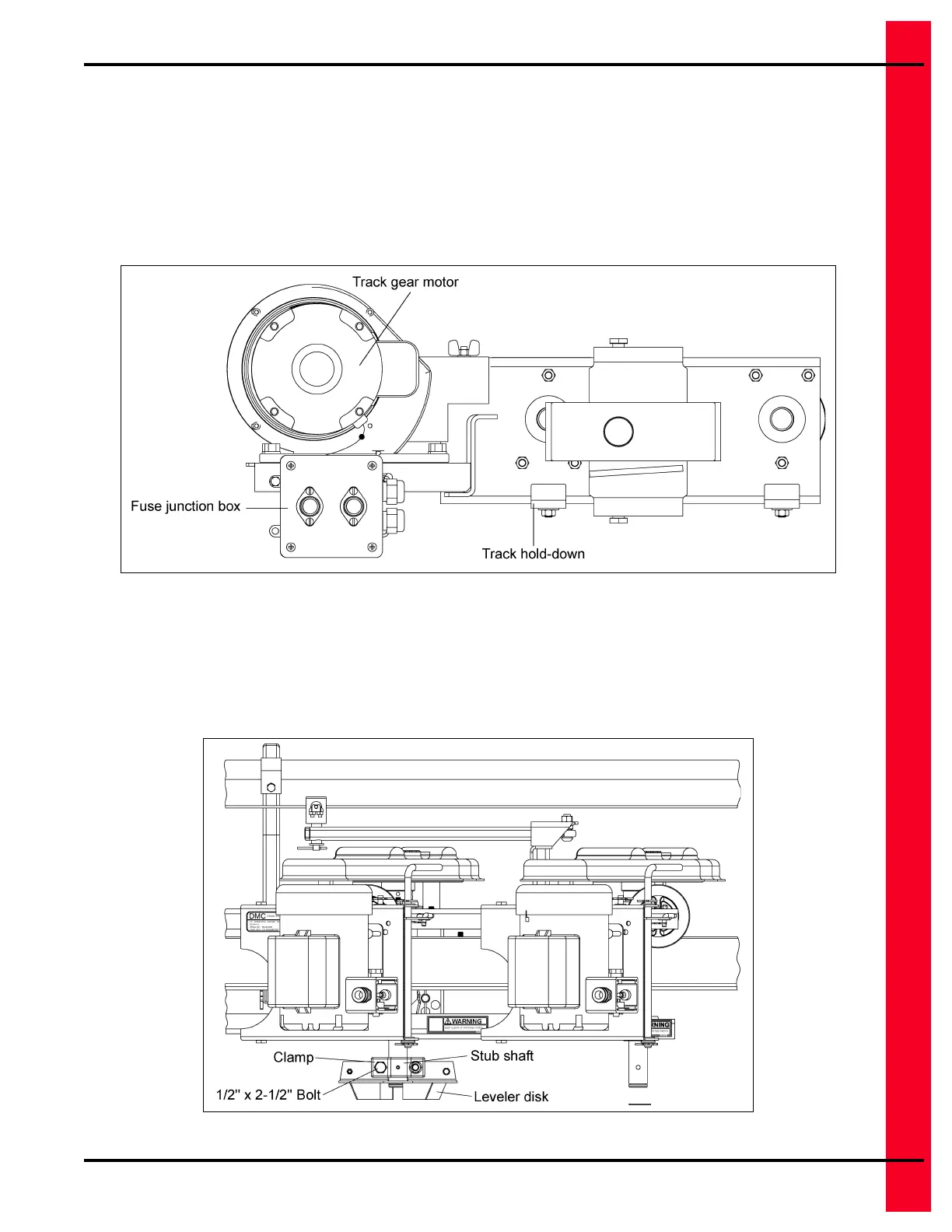

Figure 4AG
Leveler Disks
1. Loosen the 1/2" x 2-1/2" bolts on the leveler disk. Slide into the stub shaft with the clamp portion up.
Hold the leveler disk in position by placing the snap ring onto the stub groove cut into the stub shaft
by tapping it with a hammer. (See Figure 4AH.)
Figure 4AH
