PNEG-1156ETL Design III Series Grain Stir-Ator CSA 73

7. Service and Maintenance

Cable Tension

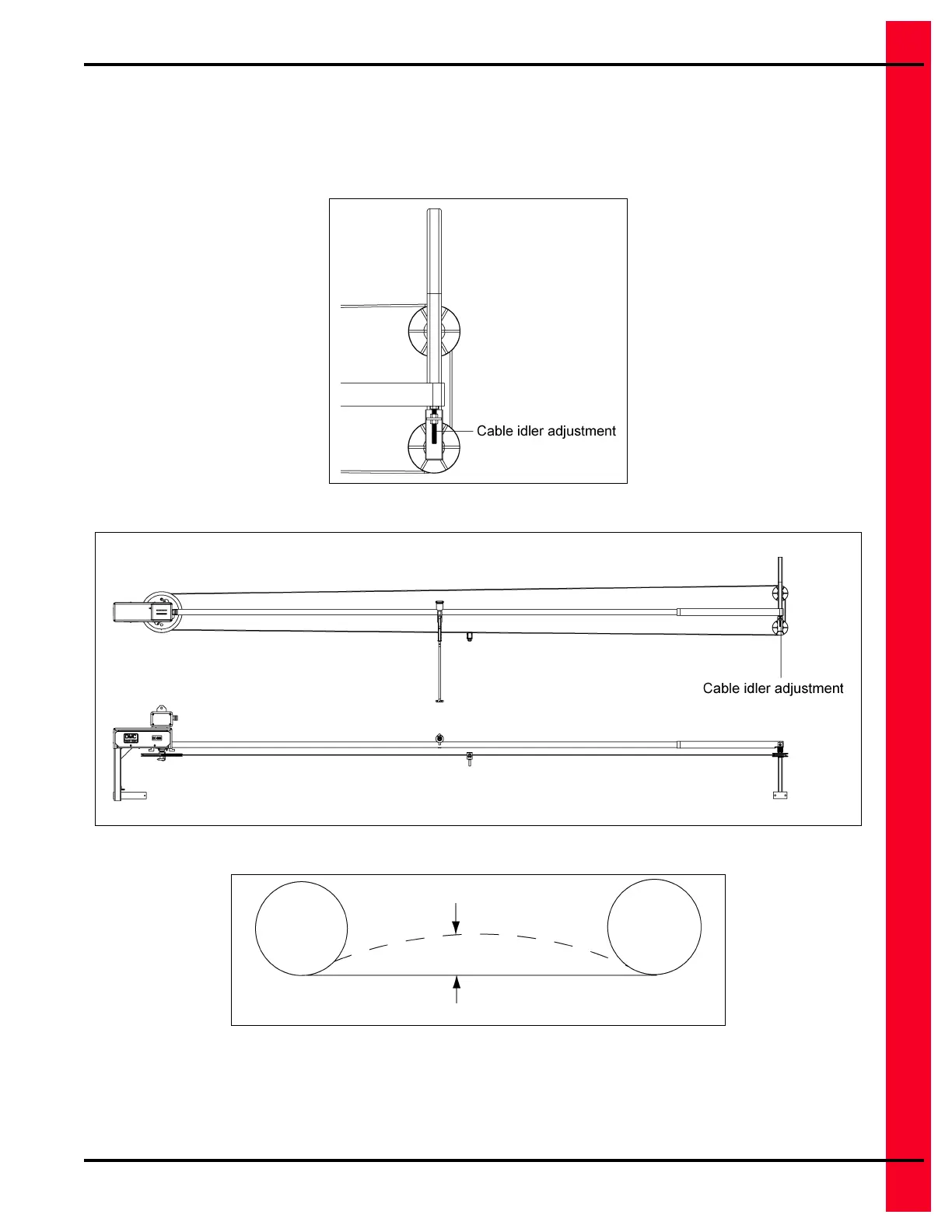

To adjust the Stir-Ator cable tension, stop the unit so the trolley is not at the bin wall. Use the two (2)

3/8" nuts to adjust the cable idler in or out to increase or decrease the tension on the cable.

(See Figures 7A,

7B and

7C.)

Figure 7A

Figure 7B

Figure 7C

Check the tension between the idler pulleys on all units by using 20-25 pounds of pressure to move the

cable 3/8" midway between the idlers. (See Figure 7C.)

3/8" Deflection requires 20-25# pressure
