4. Assembly and Installation

PNEG-1156ETL Design III Series Grain Stir-Ator CSA 35

Trolley Drive Arm to Cable

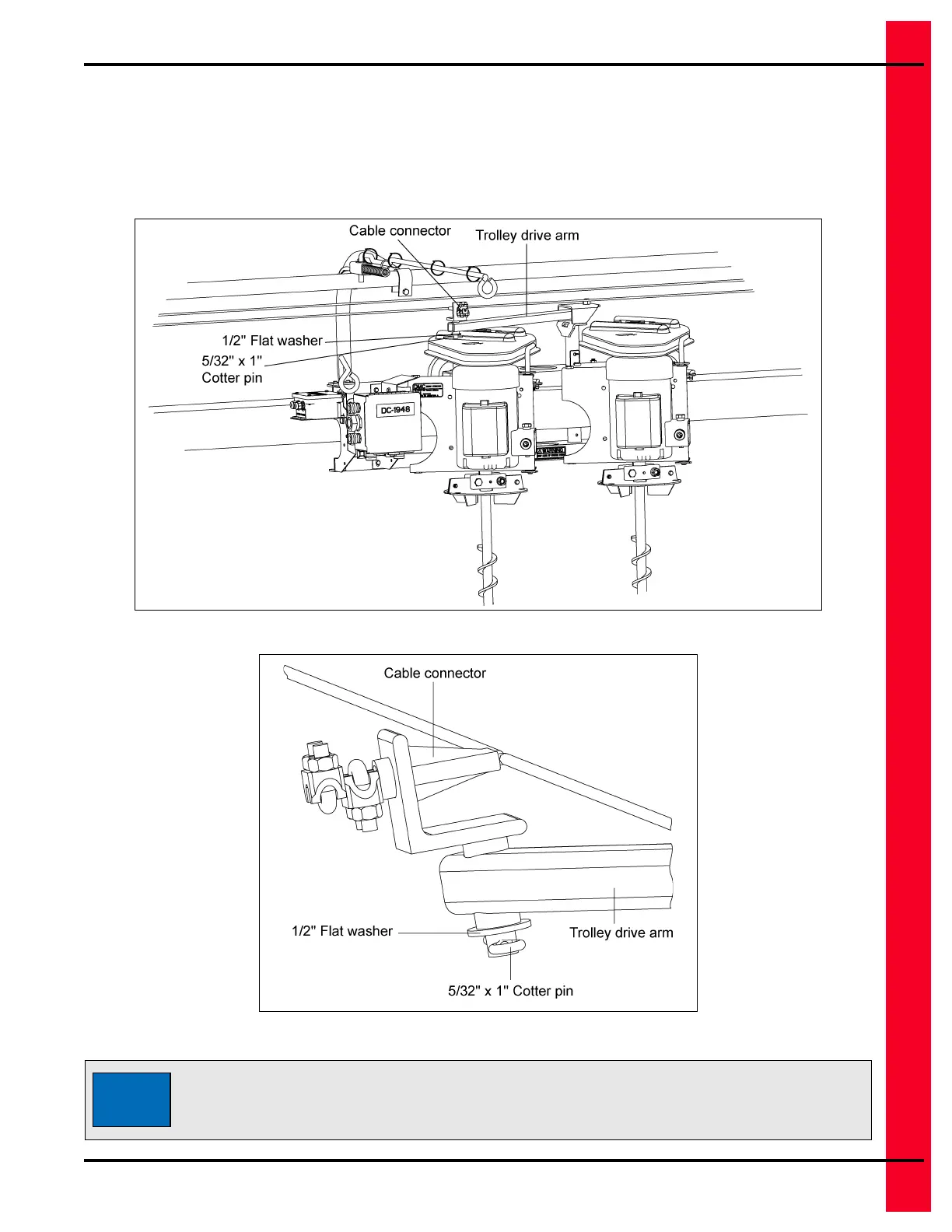

1. Connect trolley drive arm to cable connector using one 1/4" SAE (Society of Automotive Engineers

standard) flat washer and 5/32" x 1" cotter pin. (See Figure 4AC and Figure 4AD.) Be sure cable

connector is as shown in Figure 4AD. If assembled incorrectly, connector will not go around

cable pulleys.

Figure 4AC

Figure 4AD

Be sure the trolley drive arm points to the center of the bin.

Double check that the trolley unit on the main frame has been installed correctly.
