4. Assembly and Installation

30 PNEG-1156ETL Design III Series Grain Stir-Ator CSA

Yokes

1. The yoke assembly is attached to the frame rails by placing the pivot tube into the center frame

support. If the pivot tube does not slide in readily, file any burrs and grease the inside of the center

frame support. Secure by placing a 1/4" x 3" cotter pin through the tube. Open the end of the cotter

pin. The end yoke is bolted to the left frame rail with two (2) 3/8" x 1" carriage bolts, lock washers and

hex nuts. Bolt from the inside out. Tighten with socket head on impact wrench. (See Figure 4T, Figure

4U below, Figure 4V and Figure 4W on Page 31.)

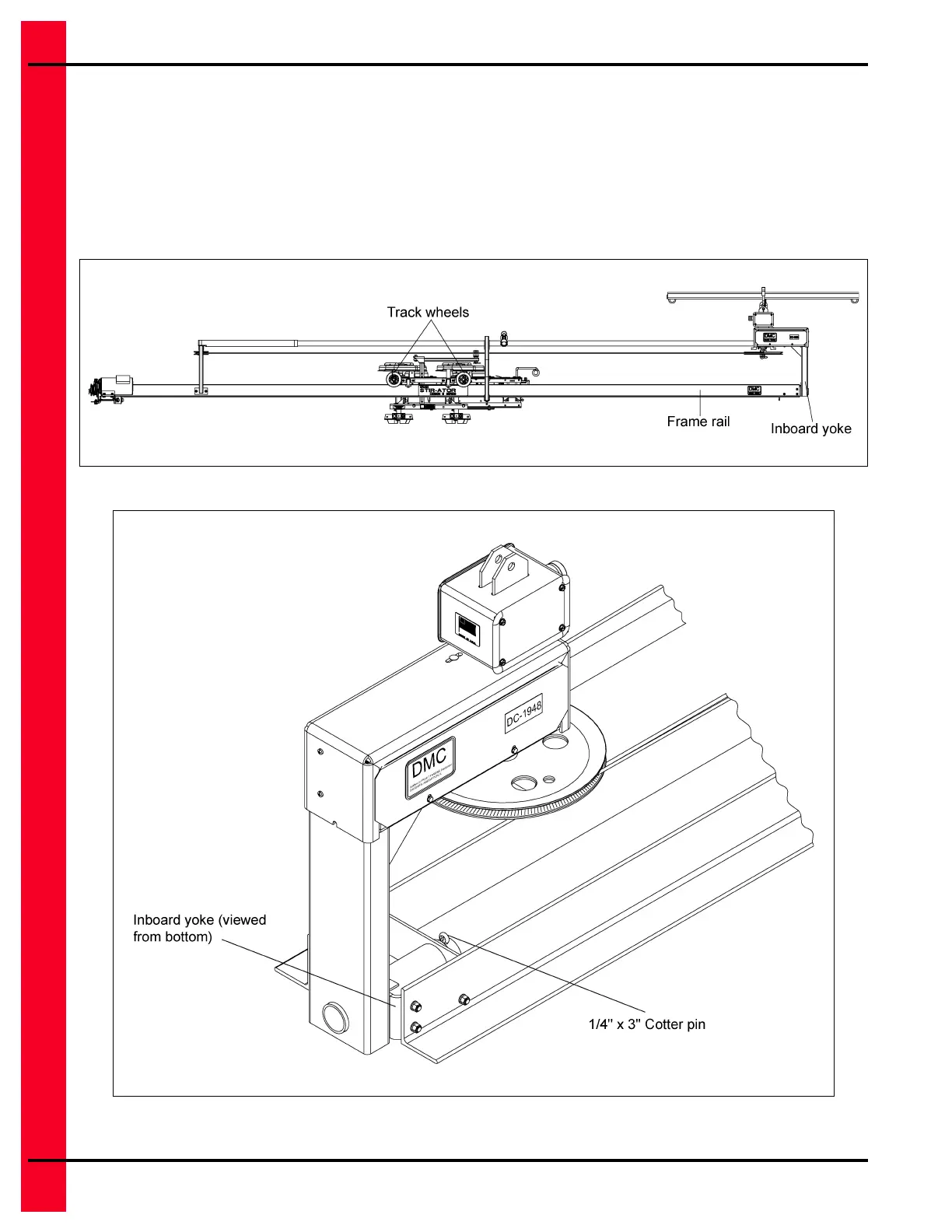

Figure 4T

Figure 4U
