4. Assembly and Installation
PNEG-1156ETL Design III Series Grain Stir-Ator CSA 29
NOTE: Two (2) hole locations are provided. The upper hole is used on single auger units only, as
indicated on the decal. For double and triple auger units, use the lower hole. (See Figure 4R.)

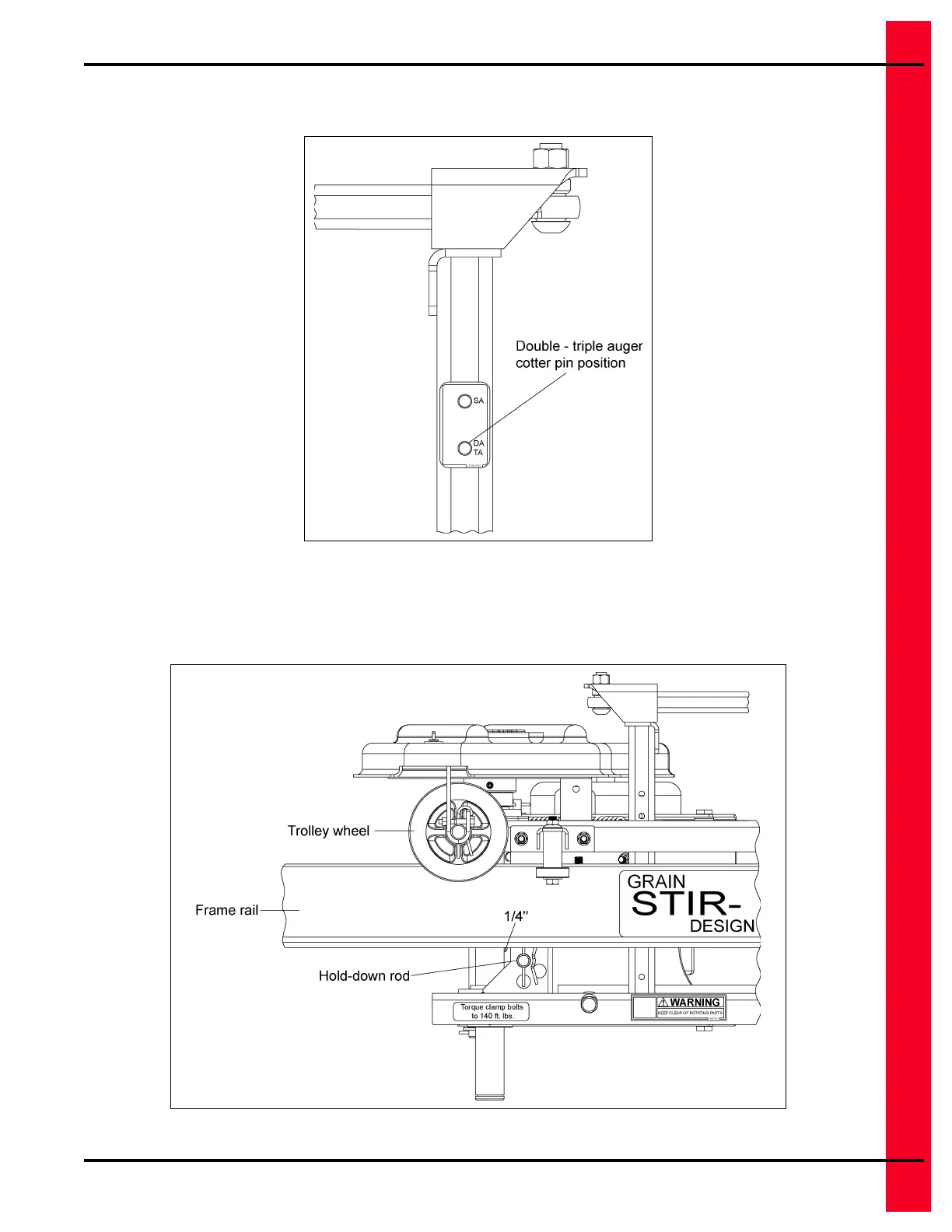

Figure 4R Double and Triple Auger Position
4. Check that the trolley is level and that the hold-down rods and wheels are properly positioned.
There should be approximately 1/4" between the top of the hold-down rods and the bottom of the
frame rails. (See Figure 4S.)
Figure 4S
