GSi DMC Design III Series User Manual

4. Assembly and Installation
PNEG-1156ETL Design III Series Grain Stir-Ator CSA 23
Suspension Chains
1. The bin roof is then assembled and the suspension chains are dropped through the fill-hole. Two (2)
chains are used on the single and double auger units and three (3) chains are used on the
triple auger units. Space the suspension hooks equally apart around the center fill-hole collar,
placing them in reference to the manhole where the shut off switch box is to be located. Place chains
through the hole and then slide the chain down into the slot. (See Figure 4F and Figure 4G.) A hole
in the suspension hooks is provided if bolting the hooks in position is desired. NOTE: For GSI
bins larger than 33' diameter an alternate method of mounting is to attach suspension chain
to intermediate center collar. (See Figure 4H on Page 24.)

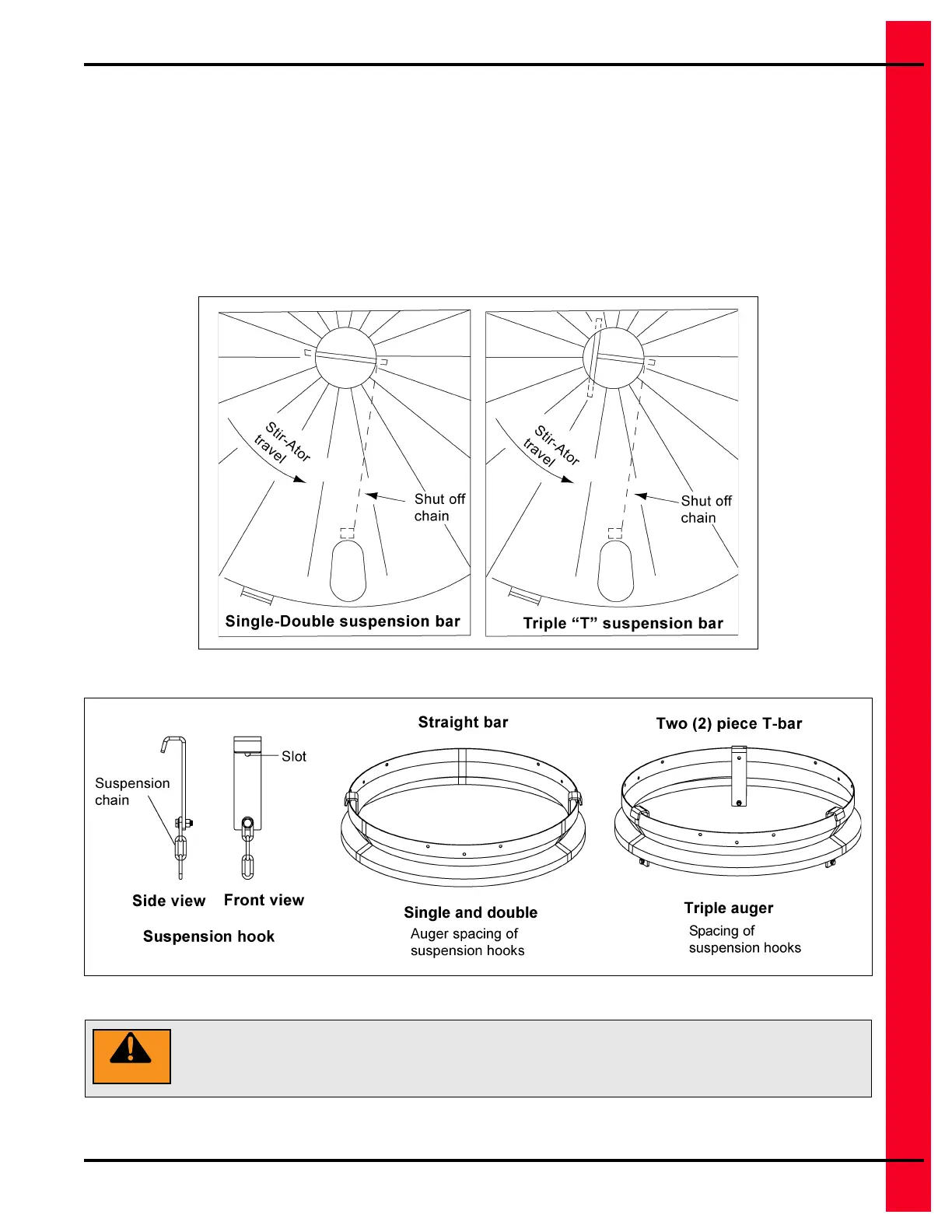

Figure 4F Viewed from top of bin
Figure 4G
Do not use the bolt in the suspension hook to support the entire unit. The outside
end of the Stir-Ator should be supported by the track.
WARNING
