4. Assembly and Installation

PNEG-1156ETL Design III Series Grain Stir-Ator CSA 21

2. The Stir-Ator wall track is installed as follows:

a. Fasten the 3 hole connector to track using a 5/16" x 1" bolt through the first hole and a 5/16" split

locking washer and hex nut. (This bolt does not go through the bin.) Tighten with socket head on

impact wrench. (See Figure 4C.)

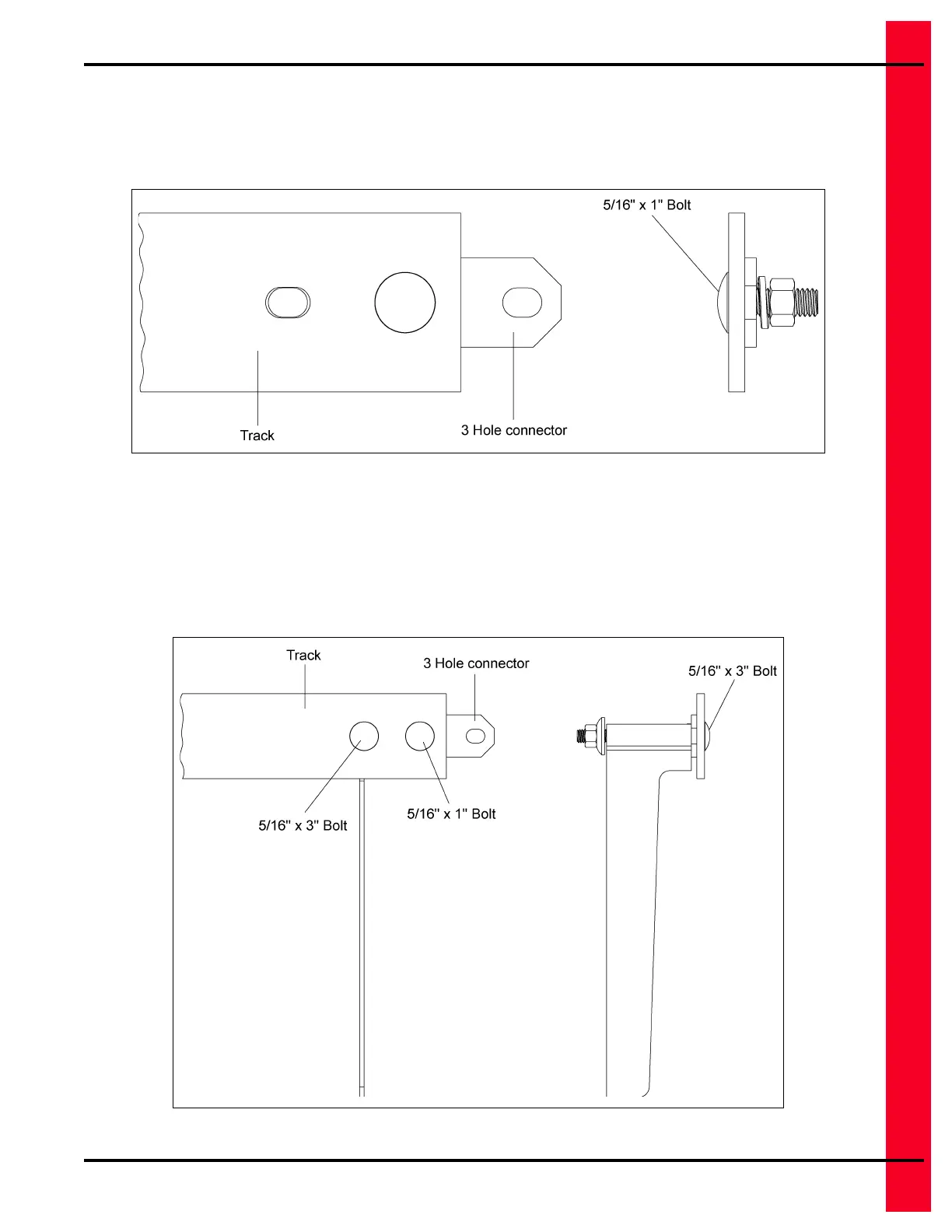

Figure 4C

b. Drill or punch 5/16" holes for the track bolts progressively around the bin wall, located 10-1/4"

from the eave. Start with the double hole end of the track section, then drill or punch a hole

through the bin wall at the second hole location. Attach the track piece to the wall using a

5/16" x 3" bolt. The bolt should go through the track, 3 hole connector, track bracket and bin wall.

Fasten with a cup washer and a hex nut. Tighten with socket head on impact wrench.

(See Figure 4D.)

Figure 4D
