Chapter 2: Installation Guidelines

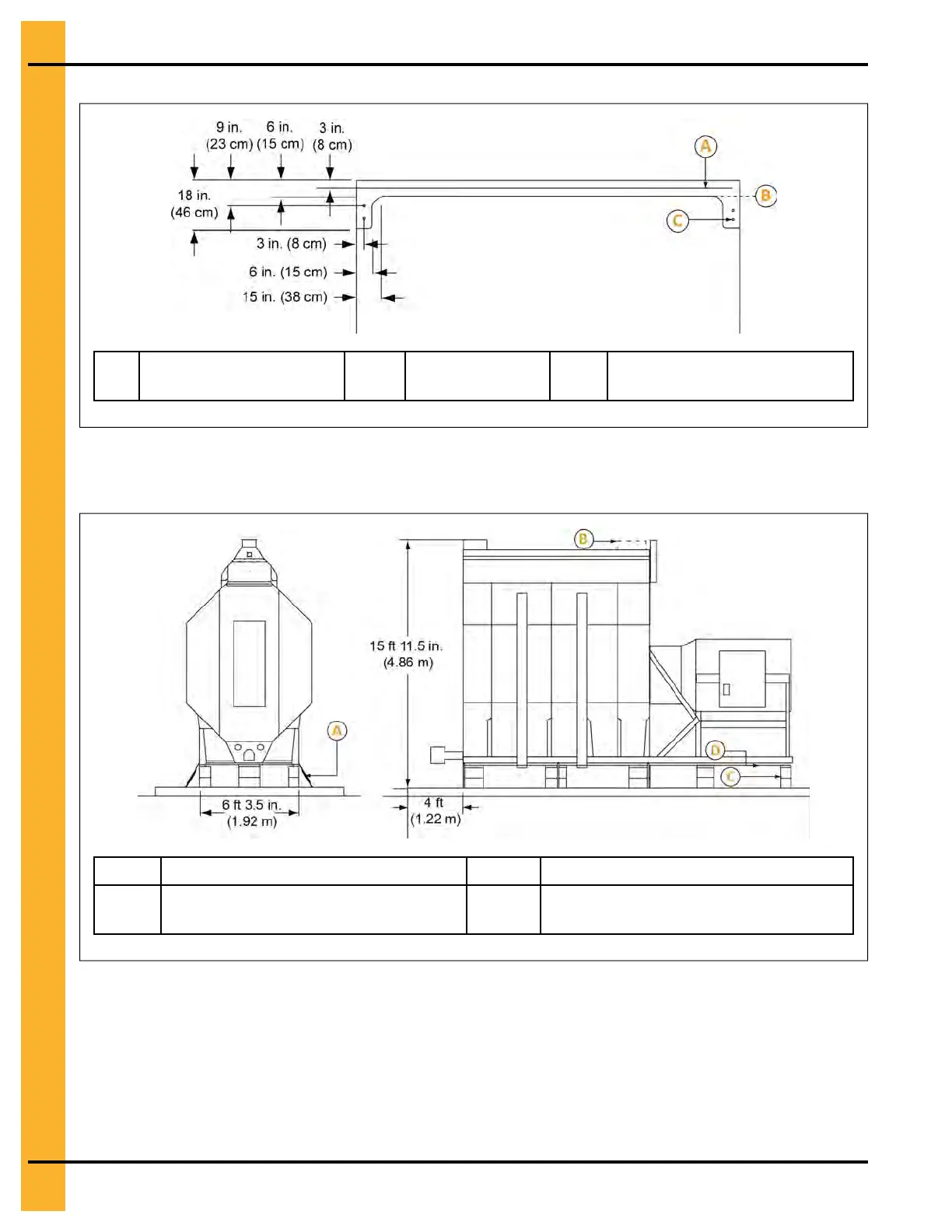

Figure 2-4 Cross-section of the concrete for single-module dryers
A
6 in. x 6 in. (15.2 cm x 15.2
cm) reinforcing mesh wire
B
Grade level C 0.5 in. (1.3 cm) number 4 rein-
forcing bar
Figure 2-5 Side and rear view of the portable dryer
A Turnbuckle B
Front fill option
C 8 in. X 8 in. X 16 in. (20.3 cm x 20.3 cm x
40.6 cm) concrete blocks
D
2 in. x 6 in. (5.8 cm x 15.2 cm) board
22
PNEG–2088 Quiet Portable Dryer
