Chapter 4: Hitch Ladder
Installing the Hitch Ladder Support Bracket to the Hitch Channel
The hitch ladder is used to access the front of the dryer opposite of the control box side of the dryer.
1. Install the hitch ladder support bracket (A) to the center hole pattern on the hitch channel.
2. Fasten bracket (A) to the hitch channel, using flange bolts (B) and flange nuts (C).

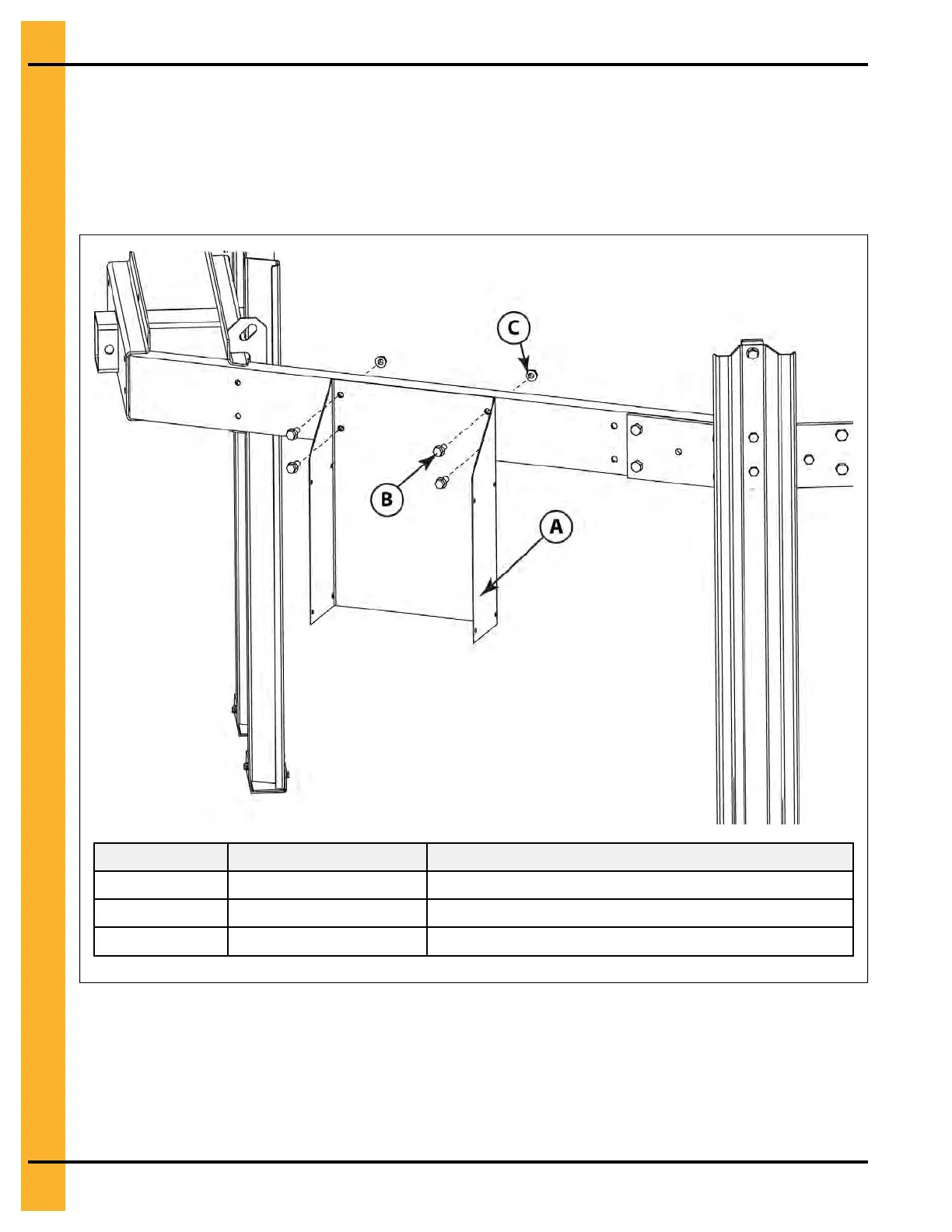

Figure 4-1 Installing the hitch ladder support bracket to the hitch channel
Callout
Part number Description
A D01–2755 Hitch ladder support bracket
B
S-9062 1/2 in. - 13 X 1 1/4 in. zinc grade 5 flange bolt
C S-8506 1/2 in. - 13 zinc flange nut
30
PNEG–2088 Quiet Portable Dryer
