Chapter 3: Dryer Supports

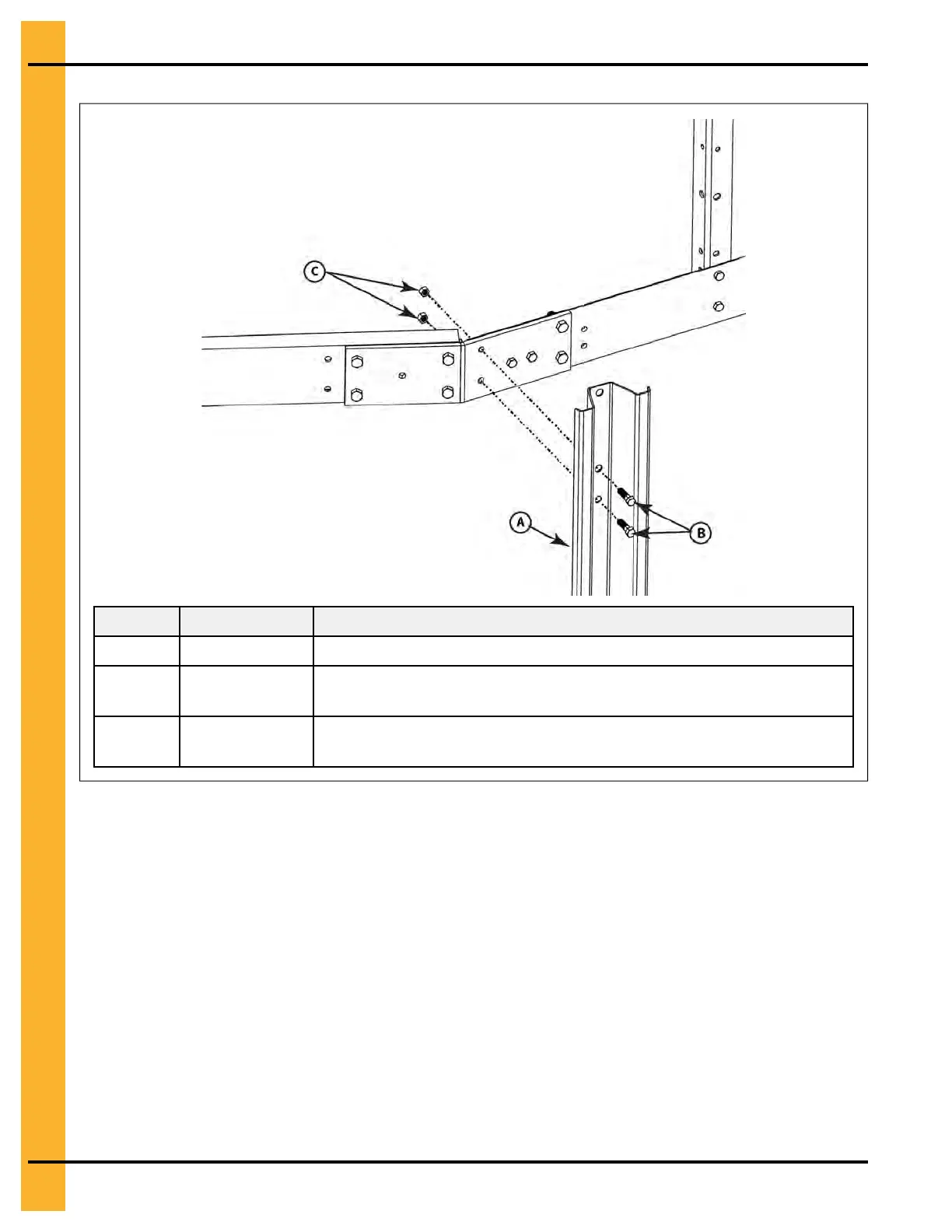

Figure 3-3 Installing the fan and heater support leg
Callout
Part number Description
A D01–xxxx For leg stand, refer to Leg Stand Height Options
B S-3883 Original bolts installed on dryer (1/2 in. - 13 X 1 3/4 in. YDP grade 8
HHTB bolt)
C S-6493 Original nuts installed on dryer (1/2 in. - 13 zinc grade 2 deformed
lock nut)
Installing a Leg Stand Along the Dryer Frame
If not using concrete blocks, you must install leg stands to the dryer frame to support the dryer.
1. Remove the two bolts and nuts from the dryer frame at the location where the leg stand is to be
installed (A and B).
2. Align the holes in the leg stand (G) with the holes in the dryer frame, and fasten in place using the
bolts and nuts that were previously removed (A and B).
3. Align the top hole in the leg stand (G) with the hole in the basket leg (F).
4. Fasten the legs together using a bolt (E), shim (C), and nut (D).
5. For a secure fit, use the shim plates (H) to make any minor adjustments to the leg height.
