Chapter 9: Fuel Supply
Guidelines for Connecting Natural Gas to a Dryer
When initially installing the dryer, you must connect a fuel source before you can operate the dryer. Natu-
ral gas (NG) is one possible fuel choice.
• Operate the dryer on natural gas with a heat value of approximately 1000 BTU (880 kWper cubic
foot).
NOTE: The dryer is equipped with a natural gas supply pipe system connected to the heater sole-
noid valves.
• You must provide a regulated pressure of 15 PSI at the connection to the dryer with sufficient gas
available to maintain this operating pressure.

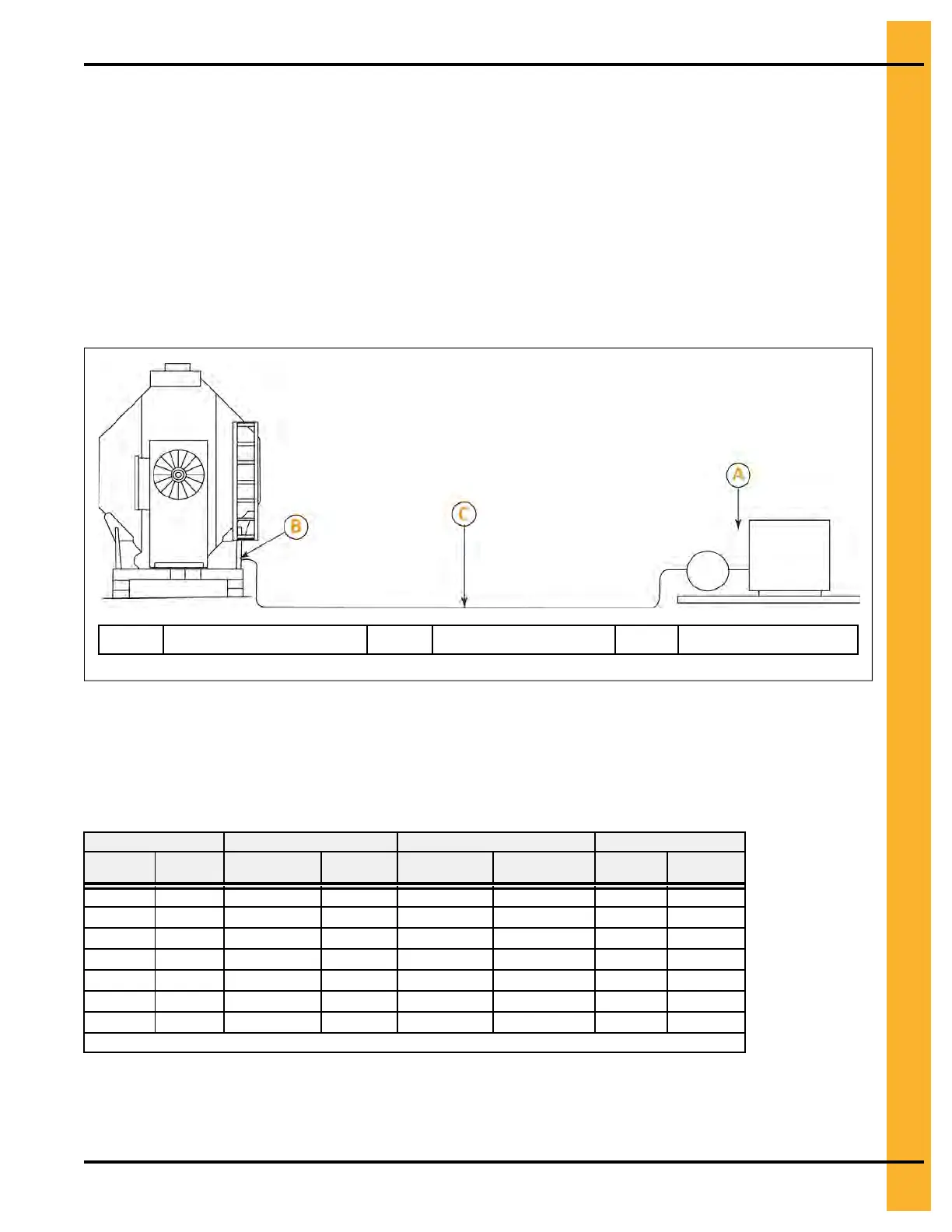

Figure 9-2 Grain dryer connected to a natural gas supply tank
A
Gas meter and regulator
B
Natural gas manifold C
Fuel supply pipe
Natural Gas Recommendations for Quiet Dryers
The fuel line size and heater orifice size are determined by the dryer model heat capacity and fuel flow
rate. Use the specifications chart that follows to select the appropriate equipment for your dryer.
Table 9-2 Specifications for natural gas (NG)
Dryer Model # Maximum Heat Capacity
Maximum Fuel Flow
Fuel Line Size*
GSI FFI BTU Per Hour
Kilowatt
Hours
Cubic Feet Per
Hour (ft3/h)
Cubic Meters
Per Hour (m3/h)
Inches Millimeters
Q112 Q270
4,500,000 1,319 4,500
127 1.5
38
Q114 Q320
5,750,000 1,685 5,750
163 1.5
38
Q116 Q370
5,750,000 1,685 5,750
163 1.5
38
Q118 Q400
6,750,000 1,978 6,750
191 2
51
Q120 Q460
7,500,000 2,198 7,500
212 2
51
Q122 Q511
8,750,000 2,564 8,750
248 2
51
Q126 Q601
10,250,000 3,004 10,250
290 2
51
* Minimum line size for a 100 ft (30.5 m) distance.
