Chapter 6: Installing the Wet Bin
Securing the Dryer Wet Bin Sides
After having raised the load auger, you must install the side panels so that the dryer wet bin can receive
and hold the incoming grain.
1. At each end of the dryer, attach the end plate connectors to the corners of the dryer wet bin, (see
Figure 6-4, page 41).
2. Raise the dryer wet grain bin sides (B) and secure them to the end plate connectors (A), (see Figure
6-5, page 42).
NOTE: Do not connect the side of the dryer wet bin that is adjacent to the load auger motor. Leave
this side open to allow for easy access when attaching the belt guard body.

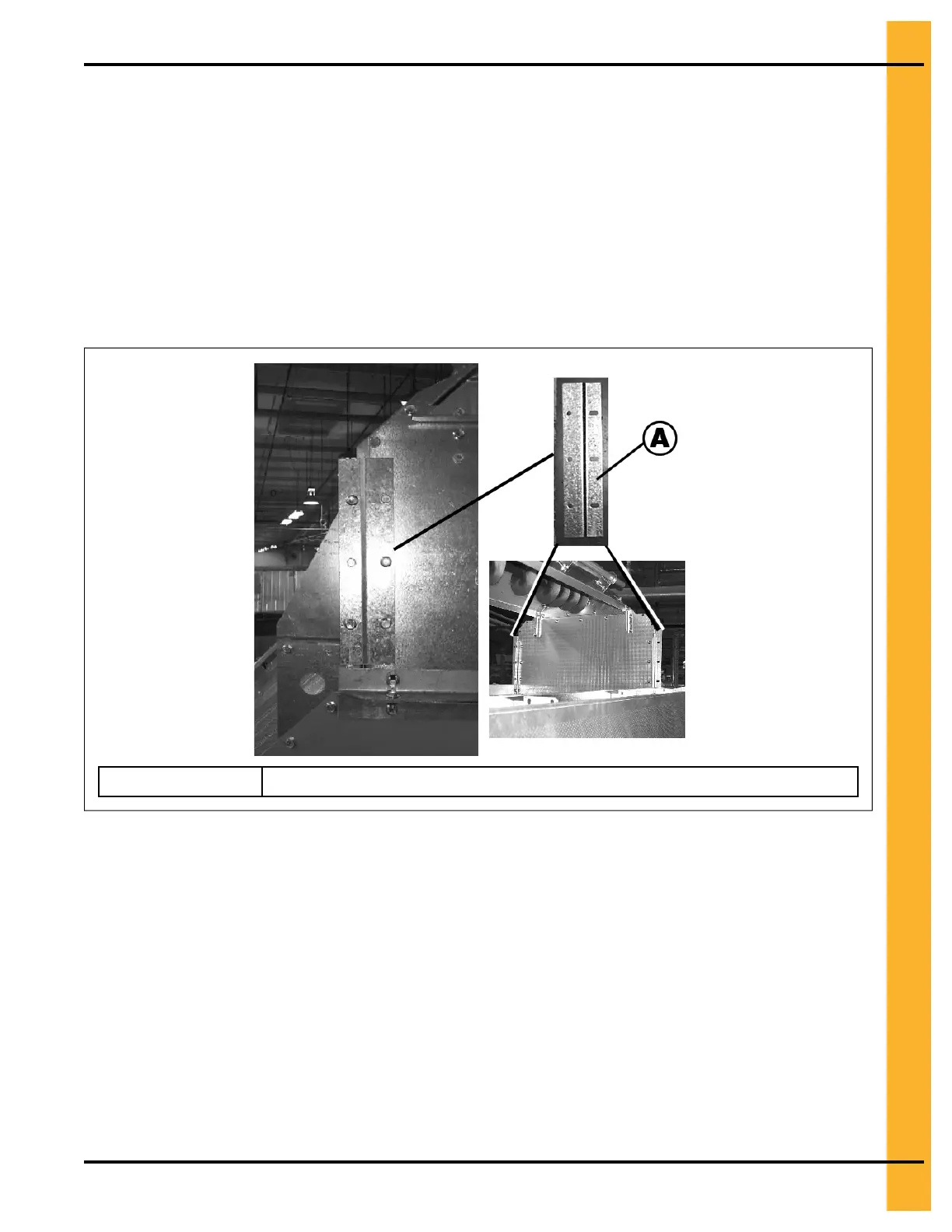

Figure 6-4 The end plate connectors of the dryer wet bin
A End plate connector
PNEG–2088 Quiet Portable Dryer
41
