Chapter 5: Rear Access Ladder
Installing the Ladder Standoff Brackets to the Rear Ladder Support
Brackets
The ladder standoff brackets allow the ladder to be easily adjusted and secured to the dryer.
1. Install the ladder standoff brackets (A) to the lower rear ladder support bracket (D), using carriage
bolts (B) and flange nuts (C).
2. Install the ladder standoff brackets (A) to the upper rear ladder support brackets (E), using carriage
bolts (B) and flange nuts (C).
3. Install the ladder to standoff brackets, (see Installing the Ladder to the Ladder Standoff Brackets,
page 32).
4. Install the end caps to the ends of the ladder, (see Installing the End Cap to the Ladder, page 32).

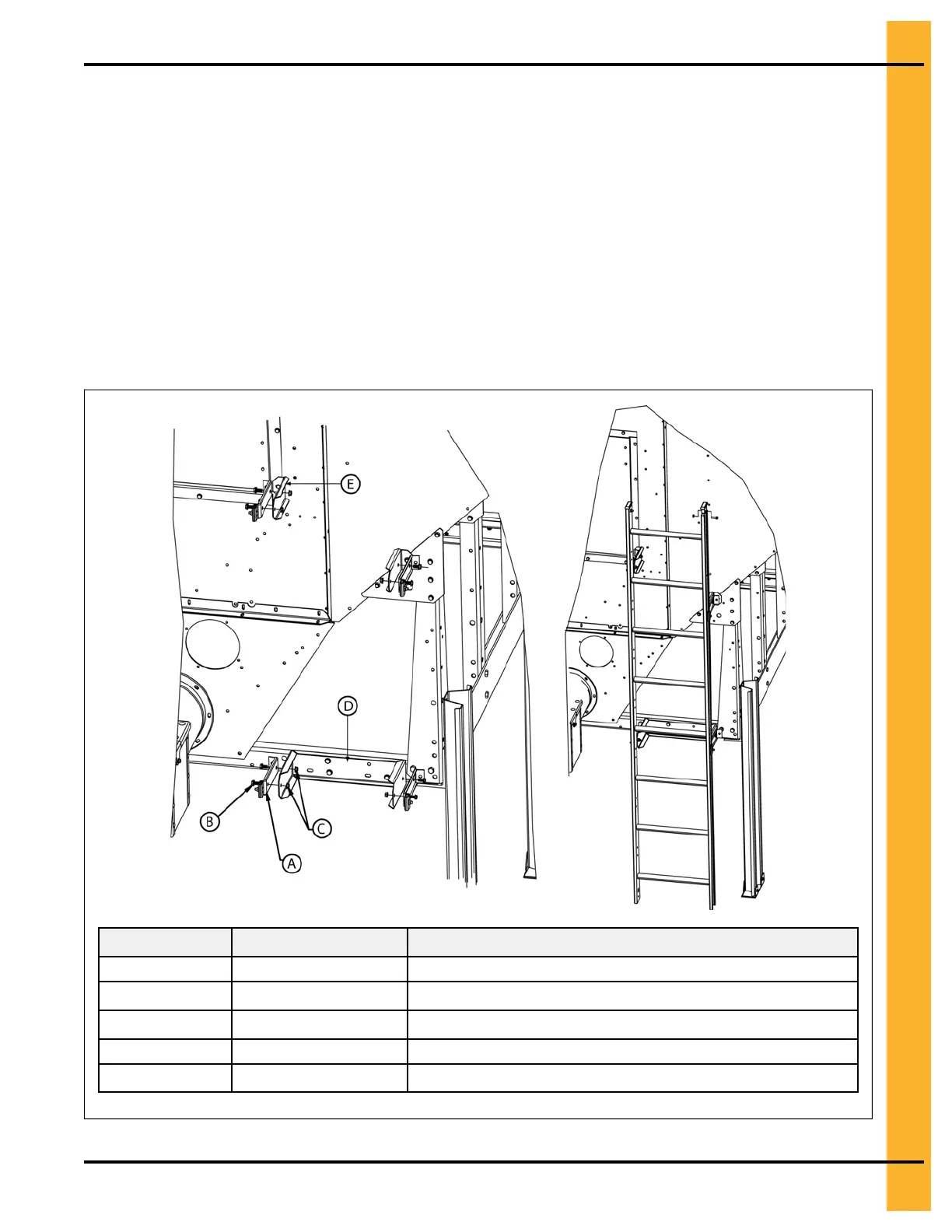

Figure 5-2 Installing the ladder standoff bracket to rear ladder support bracket
Callout
Part number Description
A LDR-4341
Standoff bracket
B
S-3550 5/16 in. X 1 in. carriage bolt
C S-3611 5/16 in. - 18 grade 2 flange nut
D D01–2692 Lower rear ladder bracket
E D01–2691 Upper rear ladder bracket
PNEG–2088 Quiet Portable Dryer
37
