Chapter 5: Rear Access Ladder

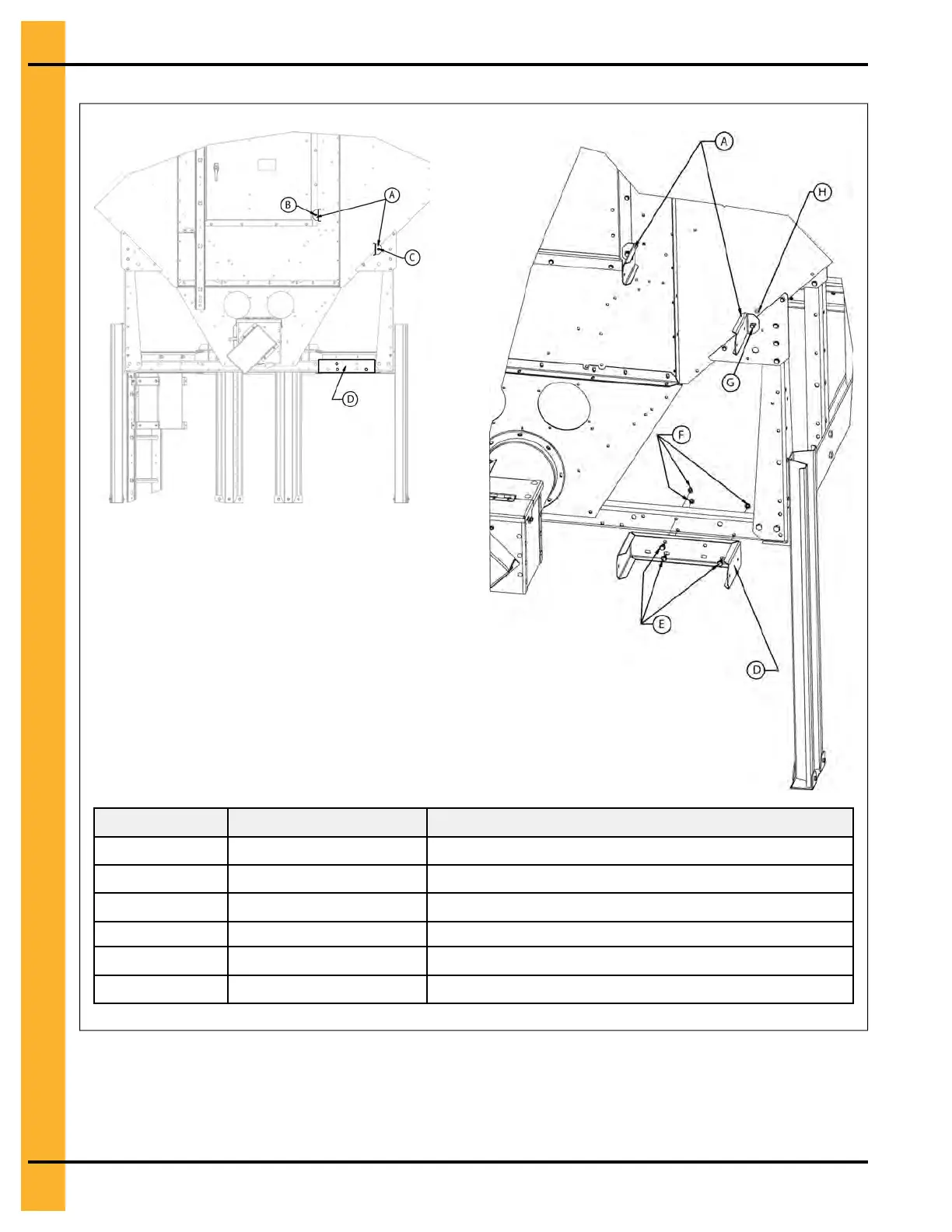

Figure 5-1 Installing the rear ladder support brackets
Callout
Part number Description
A D01–2691 Upper rear ladder bracket
B NA
Existing hardware — bottom bolt in door frame
C
NA Existing hardware — lower rear bracket
D D01–2692 Lower rear bracket
E
S-9067 3/8 in. - 16 X 3/4 in. zinc grade 5 flange bolt
F
S-968 3/8 in. -16 zinc grade 5 flange nut
36
PNEG–2088 Quiet Portable Dryer
