Chapter 6: Installing the Wet Bin

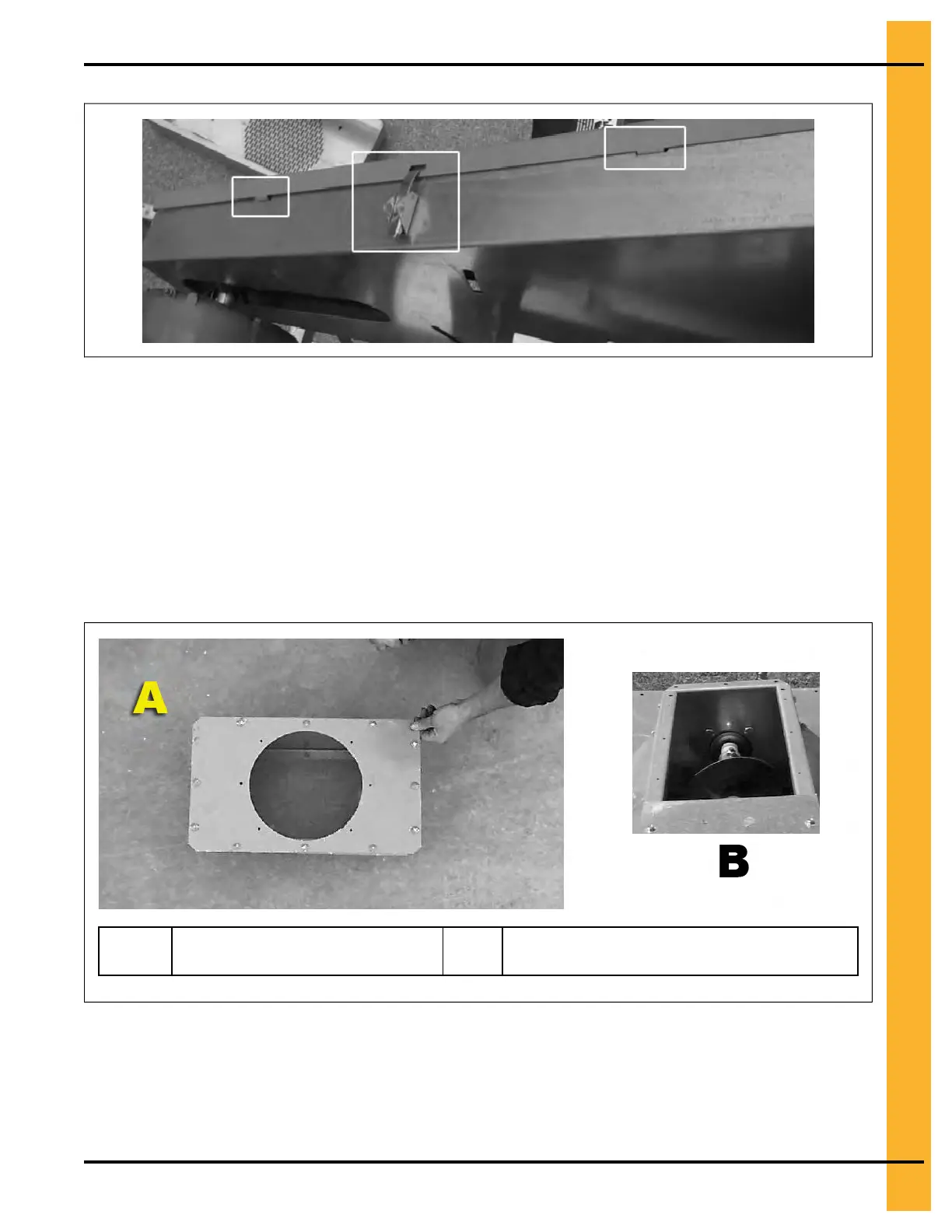

Figure 6-8 Latches for the belt guard cover
Installing the Grain Intake Hopper
To ensure that the dryer receives the incoming wet grain, you must connect the grain intake hopper
between the dryer wet bin and the equipment that supplies the wet grain.
1. Locate the hopper assembly (D01–0193) over the grain intake opening at the top rear of the dryer.
2. Connect the hopper assembly to the dryer wet grain bin by using six 1/4 in. x 3/4 in. self-drilling
screws (S-6497), six 5/16 in. x 3/4 in. flange bolts (S-6606), and six 5/16 in. flange nuts (S-3611).
Figure 6-9 Hopper assembly and hopper installation location
A
Hopper assembly (D01–0193)
B
Hopper installation location on load auger
assembly
PNEG–2088 Quiet Portable Dryer
