Chapter 4: Hitch Ladder
Installing the Ladder Standoff Bracket to the Hitch Ladder Support
Bracket
The ladder standoff brackets secures the ladder to the ladder support bracket, thus ensuring safe access
to the front of the dryer.
1. Align the holes in the ladder standoff brackets (B) with the holes on the side of the hitch ladder sup-
port bracket (A).
2. Fasten the four standoff brackets (B) to the hitch ladder support bracket (A) using flange bolts (C)
and flange nuts (D.)

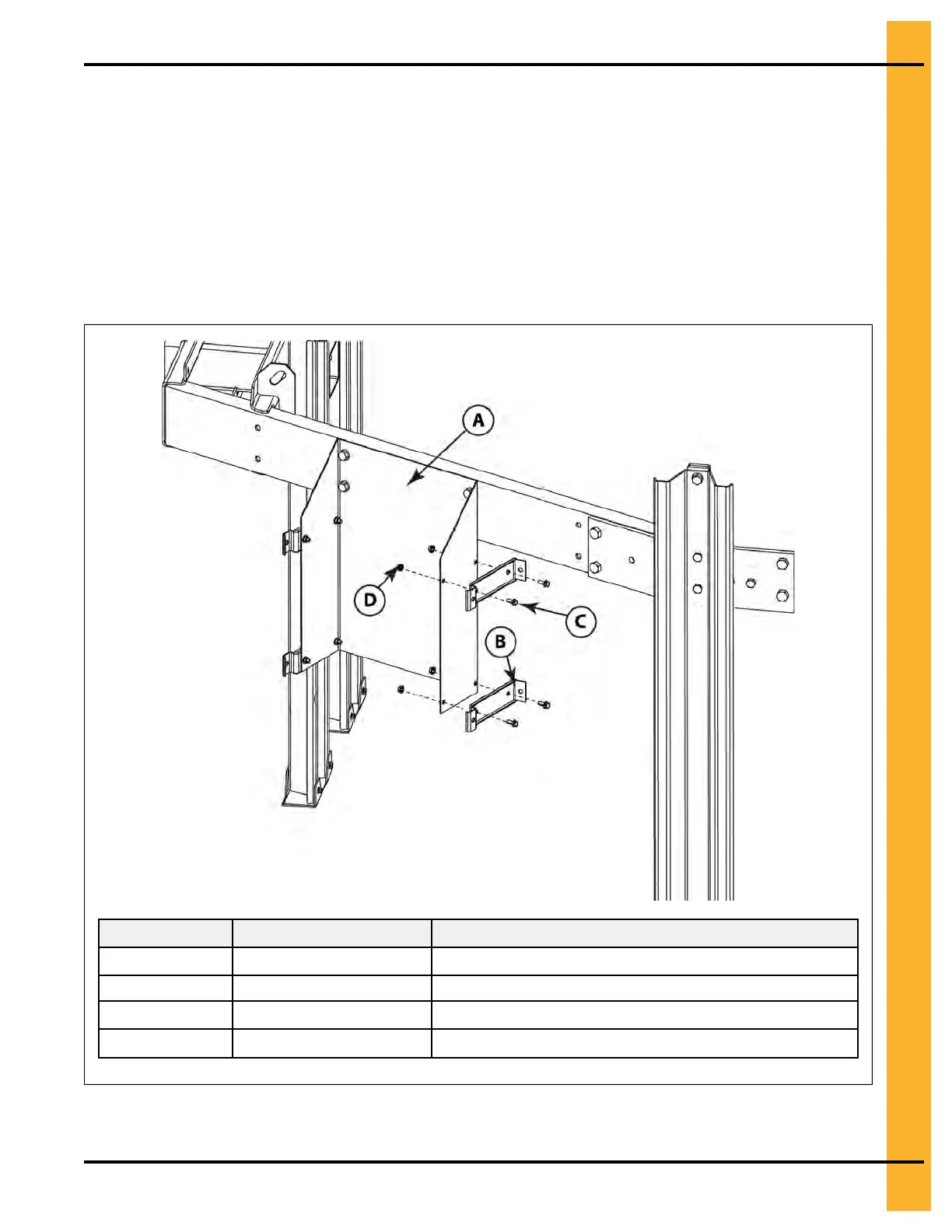

Figure 4-2 Installing the ladder standoff bracket to the hitch ladder support bracket
Callout
Part number Description
A D01–2755 Hitch ladder support bracket
B LDR-4341 Ladder standoff bracket
C S-6606 5/16 in. - 18 X 3/4 in. zinc grade 5 flange bolts
D
S-3611 5/16 in. - 18 grade 2 flange nut
PNEG–2088 Quiet Portable Dryer
