Chapter 6: Installing the Wet Bin

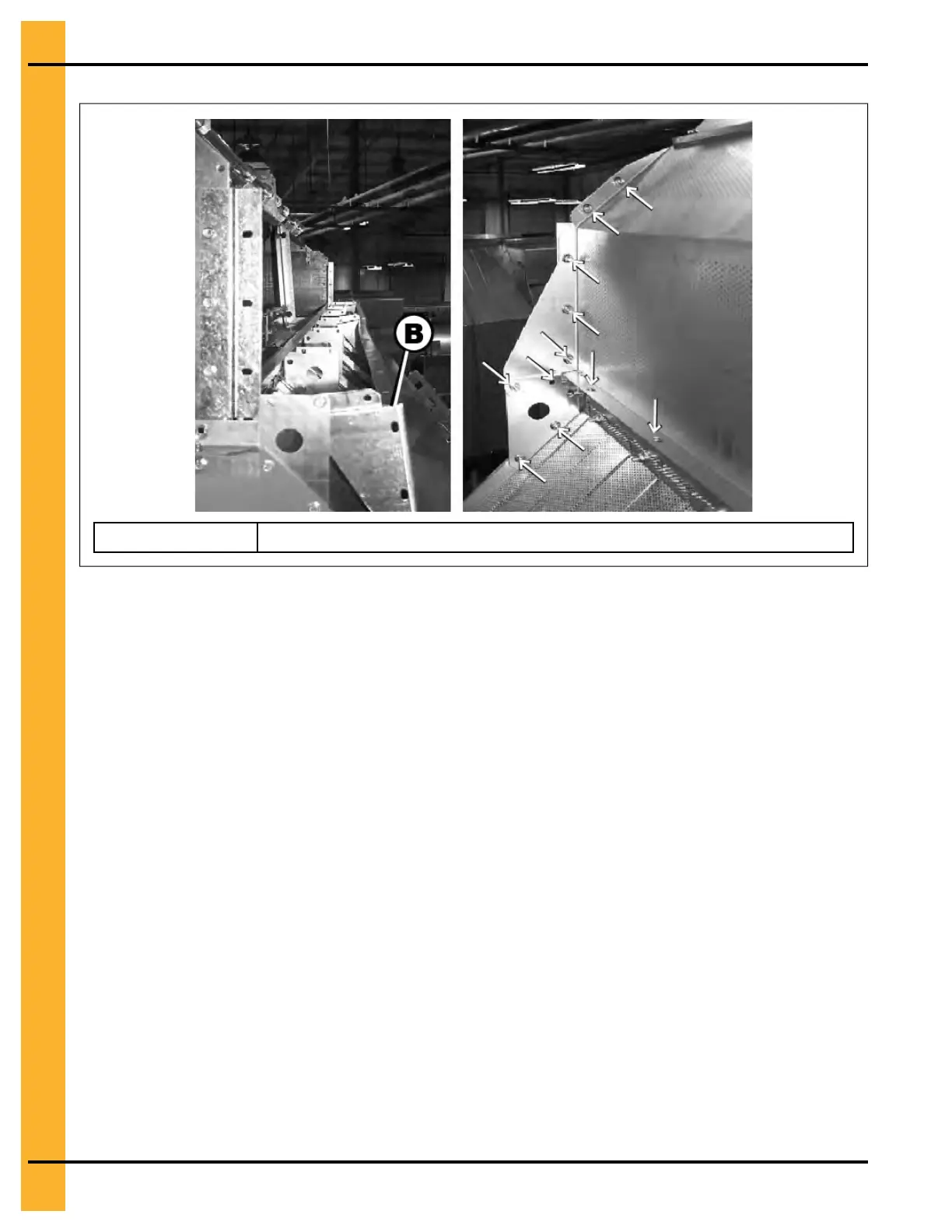

Figure 6-5 Connections for the dryer wet bin sides
B Dryer wet bin side
Installing the Belt Guard and Load Motor
To protect you from the load motor belt, you must install the belt guard after installing the load motor.
1. Install the belt guard mounting bracket to the top of the dryer wet bin.
2. Lift the load motor and install 0.50 in. x 6 in. turnbuckles to the motor mount (D01–0173) and motor
mount anchor bracket (D01–0170) with two turnbuckle pins and two cotter pins.
3. Install the three bolts for the belt guard body.
4. Place the belt guard body onto the bolts, centering the cutout in the belt guard body over the drive
shaft of the load motor.
5. Loosely secure with nuts. These bolts will be tightened after the belt is adjusted for clearance.
42
PNEG–2088 Quiet Portable Dryer
