Chapter 3: Dryer Supports
Installing the Leg Stands to the Hitch Frame
Leg stands must be used to support the dryer.
1. Position the leg stands (E) to the sides of the hitch frame and align them with the first set of hole
towards the front.
2. Fasten the legs to the channel using two bolts (B), four washers (C), and two nuts (A) per each leg.

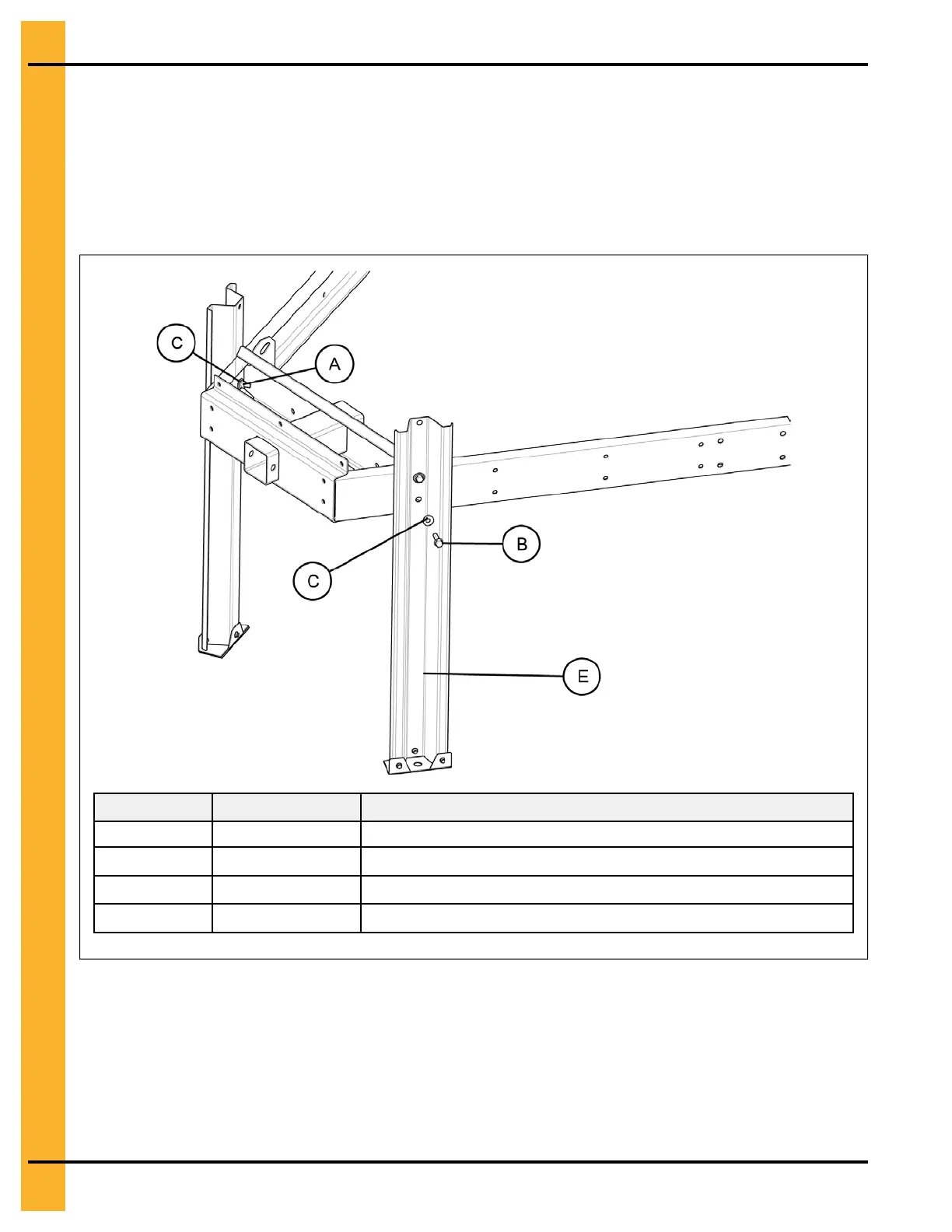

Figure 3-5 Installing leg stands to the hitch assembly
Callout
Part number Description
A
S-8315 1/2 in. -13 zinc lock nut
B
S-3728 1/2 in. - 13 X 1 1/2 in. YDP grade 8 or 8.2 HHTB bolt
C S-2121 1/2 in. X 1 3/8 in. type A plated flat washer
E D01–xxxx For leg stand, refer to Leg Stand Height Options
28
PNEG–2088 Quiet Portable Dryer
