Chapter 3: Dryer Supports

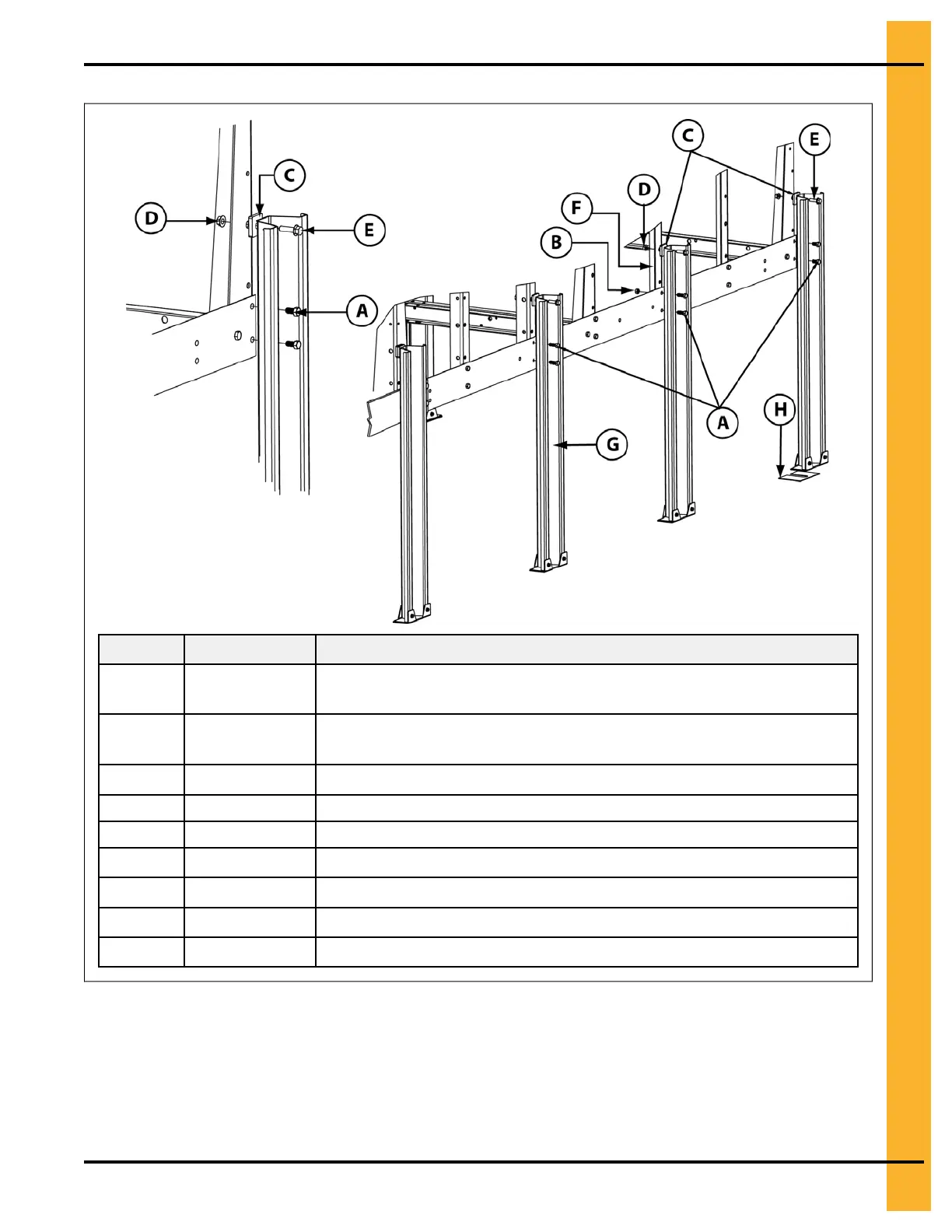

Figure 3-4 Installing leg stands along dryer frame
Callout Part number Description
A
S-3883 Original bolts installed on dryer (1/2 in. - 13 X 1 3/4 in. YDP grade 8
HHTB bolt)
B S-6493 Original nuts installed on dryer (1/2 in. - 13 zinc grade 2 deformed
lock nut)
C D01–1221 Shim dryer stand to dryer
NS S-2121 1/2 in. X 1 3/8 in. flat washer
D S-8315 1/2 in. -13 zinc lock nut
E S-3728 1/2 in. - 13 X 1 1/2 in. YDP grade 8 or 8.2 HHTB bolt
F D01–0007 Basket corner leg
G D01–xxxx For leg stand, refer to Leg Stand Height Options
H
FC-42077 Shim plate
PNEG–2088 Quiet Portable Dryer
