GSi Q112 User Manual

Chapter 11: Dryer Specifications
Transport and Installation Dimensions for GSI Quiet Dryers
The dryer dimensions that follow help you determine the area that is needed for transporting and installing
the dryer.

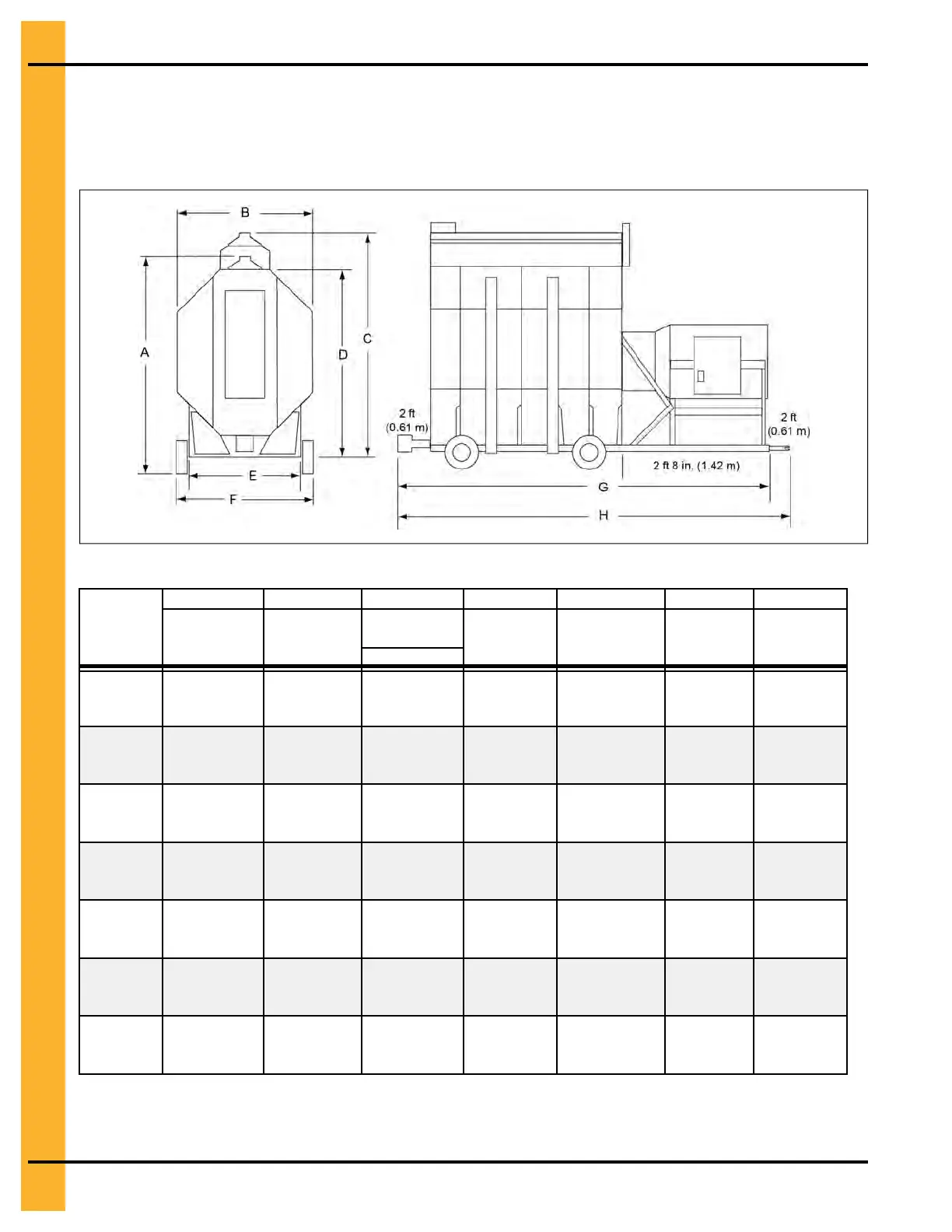

Figure 11-1 Diagram of dryer dimensions
Table 11-2 GSI quiet portable dryer transport and installation dimensions
Dryer
Basket
A B C E F G H
Transport
Height
Installed
Width
Installed
Height
Frame
Width
Transport
Width
Installed
Length
Transport
Length
Wet Bin
Q112 (12
ft) (3.66
m)
13 ft 5 in. 8 ft 14 ft 6 in. 6 ft 5 in. 8 ft 22 ft 10 in. 24 ft 10 in.
(409 cm) (244 cm) (442 cm) (196 cm) (244 cm) (696 cm) (757 cm)
Q114 (14
ft) (4.28
m)
13 ft 5 in. 8 ft 14 ft 6 in. 6 ft 5 in. 8 ft 24 ft 10 in. 26 ft 10 in.
(409 cm) (244 cm) (442 cm) (196 cm) (244 cm) (757 cm) (818 cm)
Q116 (16
ft) (4.88
m)
13 ft 5 in. 8 ft 14 ft 6 in. 6 ft 5 in. 8 ft 26 ft 10 in. 28 ft 10 in.
(409 cm) (244 cm) (442 cm) (196 cm) (244 cm) (818 cm) (879 cm)
Q118 (18
ft) (5.49
m)
13 ft 5 in. 8 ft 14 ft 6 in. 6 ft 5 in. 8 ft 29 ft 10 in. 31 ft 10 in.
(409 cm) (244 cm) (442 cm) (196 cm) (244 cm) (909 cm) (970 cm)
Q120 (20
ft) (6.10
m)
13 ft 5 in. 8 ft 14 ft 6 in. 6 ft 5 in. 8 ft 31 ft 10 in. 33 ft 10 in.
(409 cm) (244 cm) (442 cm) (196 cm) (244 cm) (970 cm) (1031 cm)
Q122 (22
ft) (6.71
m)
13 ft 5 in. 8 ft 14 ft 6 in. 6 ft 5 in. 8 ft 33 ft 10 in. 35 ft 10 in.
(409 cm) (244 cm) (442 cm) (196 cm) (244 cm) (1031 cm) (1092 cm)
Q126
(26ft)
(7.92m)
13 ft 5 in. 8 ft 14 ft 6 in. 6 ft 5 in. 8 ft 35 ft 10 in. 39 ft 10 in.
(409 cm) (244 cm) (442 cm) (196 cm) (244 cm) (1092 cm) (1153 cm)
