Chapter 6: Installing the Wet Bin

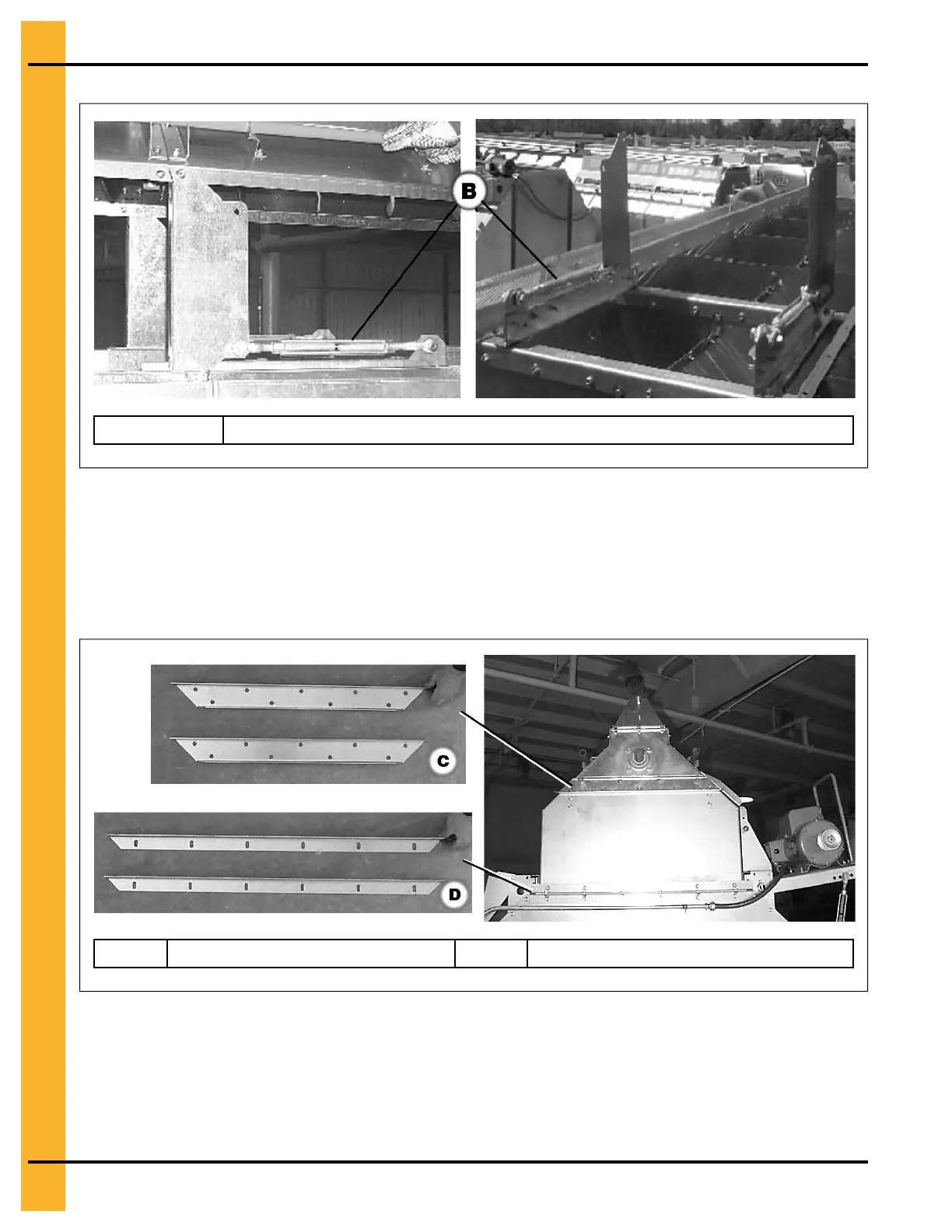

Figure 6-2 Turnbuckle location for dryers twelve ft (2.66 m) and longer
B
Lift kit turnbuckles for twelve ft (2.66 m) and longer dryers
2. Bolt the top angle brackets (D) to the angle brackets already installed, positioning the brackets
back-to-back. Brackets are located on the front and rear of the dryer, (see Figure 6-3, page 40).
3. Bolt the load auger housing channel (C) to the front and rear of the ends of the dryer wet bin.
Figure 6-3 Angle brackets and housing channels
C
Top auger housing channel D Top angle bracket
4. Once the auger assembly is securely bolted, unbolt the lift kit legs and lower them back into their
shipping position.
40
PNEG–2088 Quiet Portable Dryer
