GTO 3000XLS - Control Box & Receiver Mounting; Step 1: Control Box Mounting; Step 2: Temporary Receiver Mounting; Receiver Mounting Best Practices

GTO 3000XLS/3200XLS Instruction Manual © 01.10.12 13

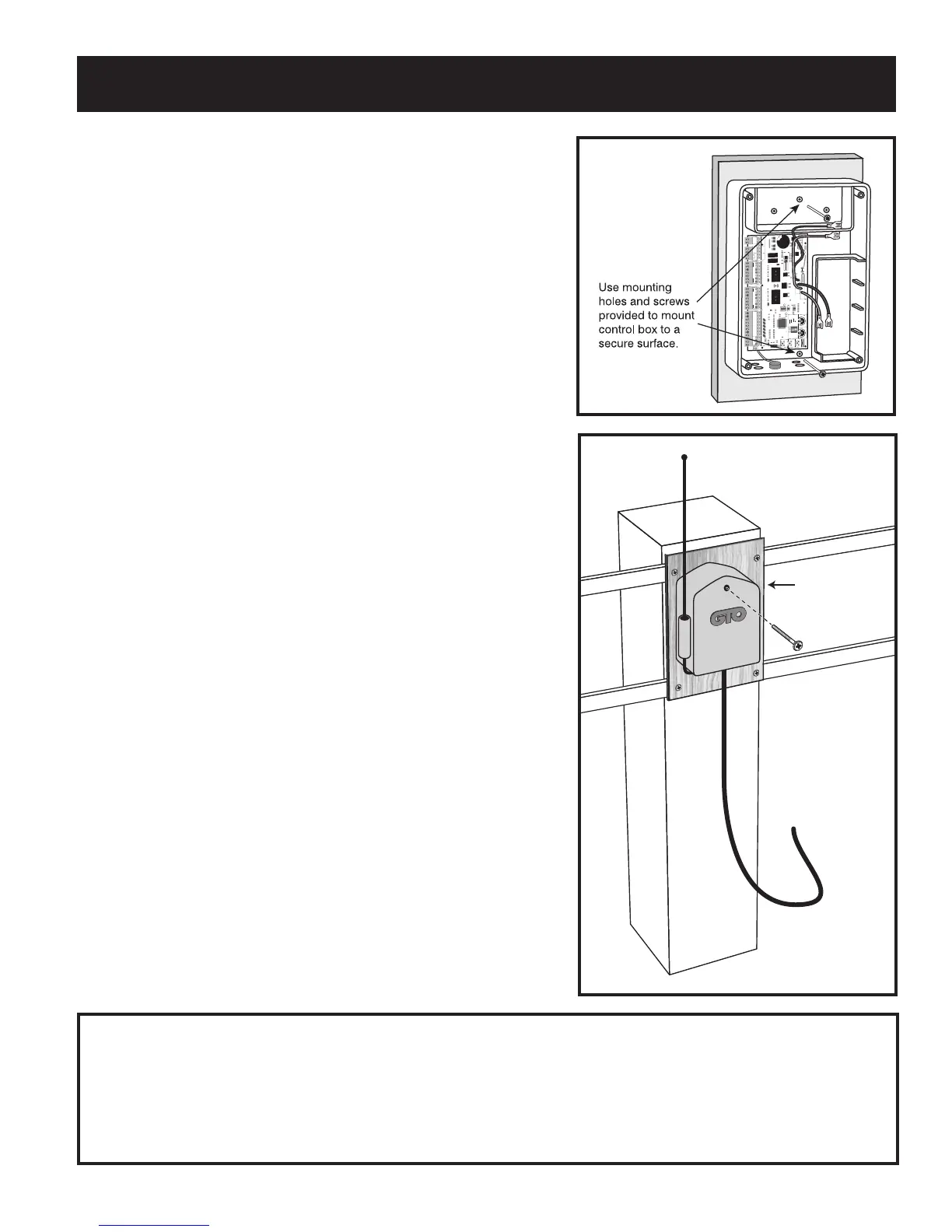

Step 1
Mount the control box using the screws (provided) or another
secure mounting method. The control box must be mounted
at least 3 feet above the ground to protect it from rain splash,
snow, etc., and at least 3 feet from an AC power source to
prevent electrical interference.
Step 2
Temporarily mount the receiver at this time.
NOTE: You will use the transmitter (page 21) to check the range
of the receiver before permanently mounting it. You may
have to try dierent locations before permanently mounting
the receiver. The receiver range can vary from 50 to 100
feet depending upon weather, topography, and external
interference.
Mount the receiver:
 •Ensuringaline-of-sightbetweentransmitterand
antenna.
 •Atleast3feetawayfromACvoltage.
 • Ashighaspossibleforoptimumrange.
 • DONOTmountreceiverupsidedown.
 •DONOTmountreceiverdirectlytometalfenceormetal
post (this will decrease signal range). Use a piece of wood
between receiver and metal surface.
The receiver cable:
 • Cablelengthis10ft.(receiverswithlongercablesare
available as special order items; call the GTO Sales
Department).
 • NEVERsplicereceivercable!
 • RunthereceivercablethroughPVCconduittoprotectit
from damage.
 • DONOTruncableinconduitcontainingACwiring.
