3.3.1 FlexxPump
3.3.1.1 Dimensions and connections 404DLS
The FlexxPump 404DLS weighs approx. 1500g and has the following dimen-
sions:
D003135
94
110
96
107
112
35,3
196
A
B

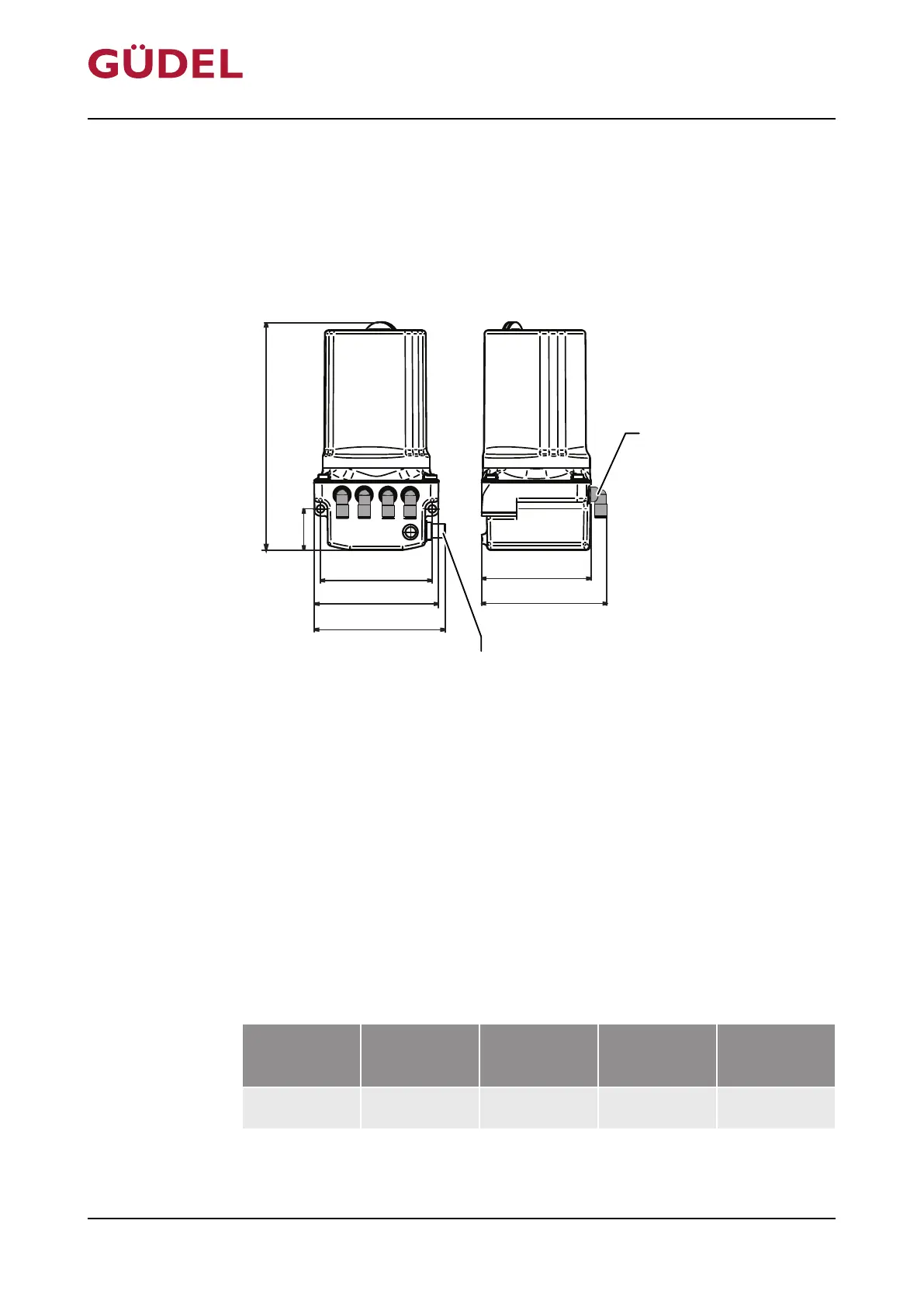

Fig.3-3 Dimensions and connections 404DLS
A Hydraulic outputs
B Connection plug M12x1
Connections
Hydraulic:
• Four connections for hydraulic hoses with a diameter of 6/3mm
Electrical: The four-pole connection size M12x1 transmits the following sig-
nals:
• Control signals
• Operating voltage
Interfaces
The FlexxPump 404DLS features an integrated microprocessor. It is con-
trolled via a programmable logic controller (PLC).
Operating voltage
Operating
voltage
Operating
power
Peak
power I
max
Standby
current
Peak out-
put power
24VDC 200mA 350mA <20mA 300mA
Table3-1 Operating voltage
