GUDEL FlexxPump 404DLS - Fig. 7 -7 Design 404 DLS 6-Fold

404DLS 6-fold
System with 6 lubrication points
D003080
A B C D
G F E

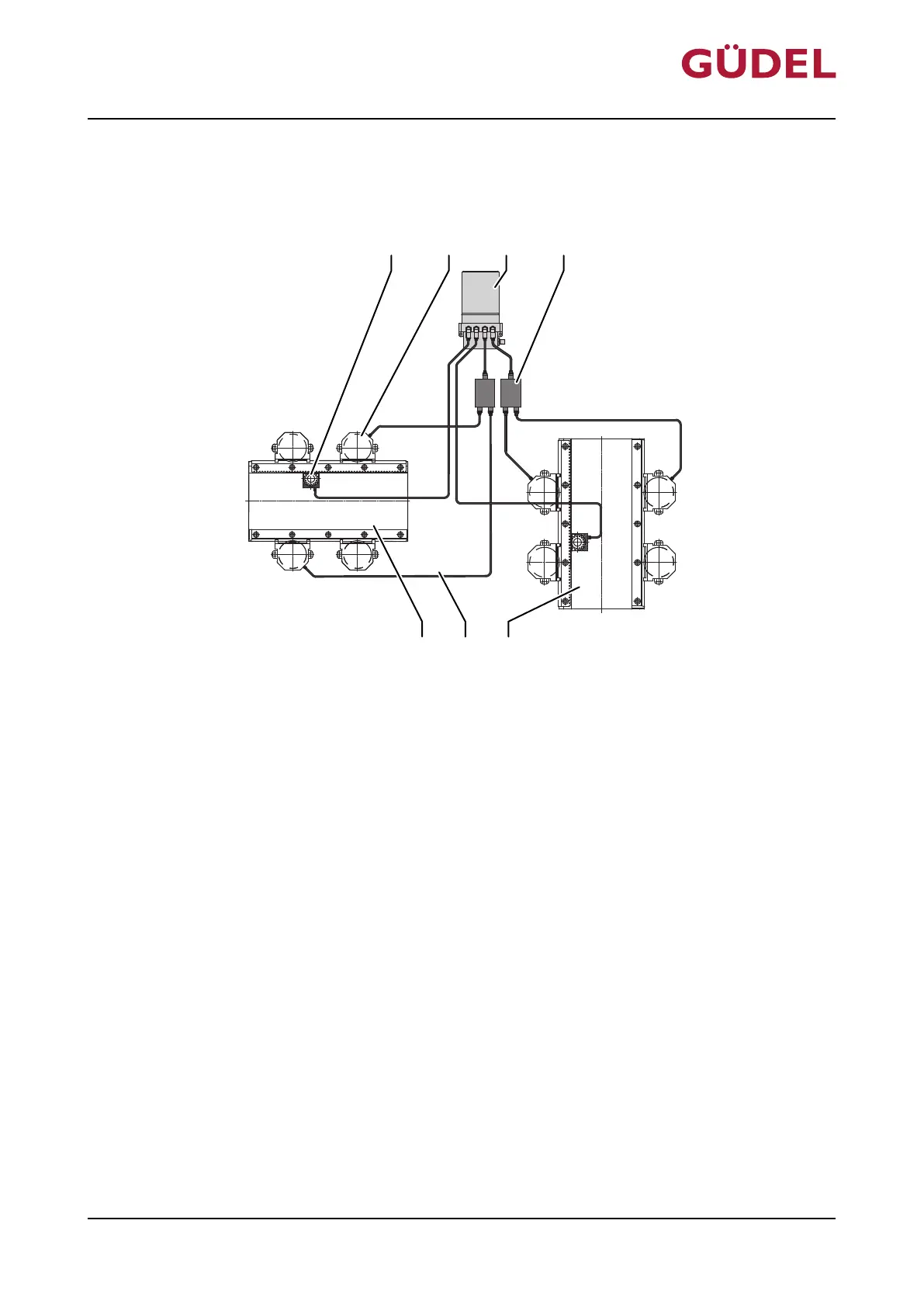

Fig.7-7 Design 404DLS 6-fold
A Lubricating pinion (not included in the
scope of delivery)
E 2nd axle (not included in the scope of
delivery)
B Lubricating element for guideway rails
(not included in the scope of delivery)
F Hydraulic hose diameter of 6/3mm
C FlexxPump 404DLS G 1st axle (not included in the scope of de-
livery)
D 2x splitter
Maintenance
OPERATING MANUAL Automatic lubrication system
FlexxPump 404DLS
99079191943154059_v10.0_EN-US
83
