GUDEL FlexxPump 404DLS - Fig. 7 -5 Installing the Flexxpump

7.3.4.2 Installing the FlexxPump
The installation position of the FlexxPump is not important.
D003085
A B C

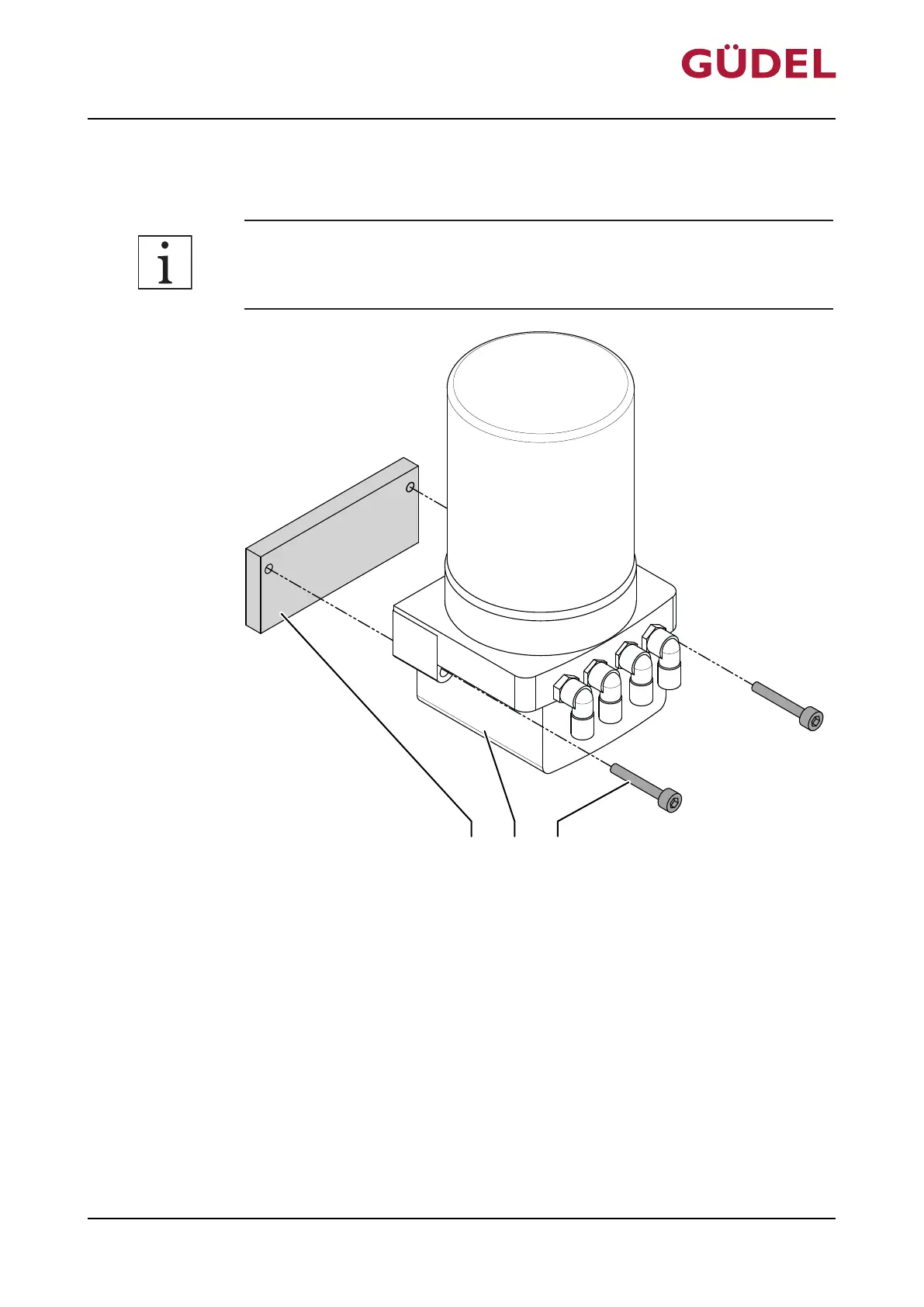

Fig.7-5 Installing the FlexxPump
A Assembly site
B FlexxPump
C Screw
Assemble the FlexxPump as follows:
1 Mount FlexxPump with two screws M6 L
min
= 40mm
(tightening torque 5 Nm)
The FlexxPump is assembled.
