5.3.4.1 Connecting the 404DLS

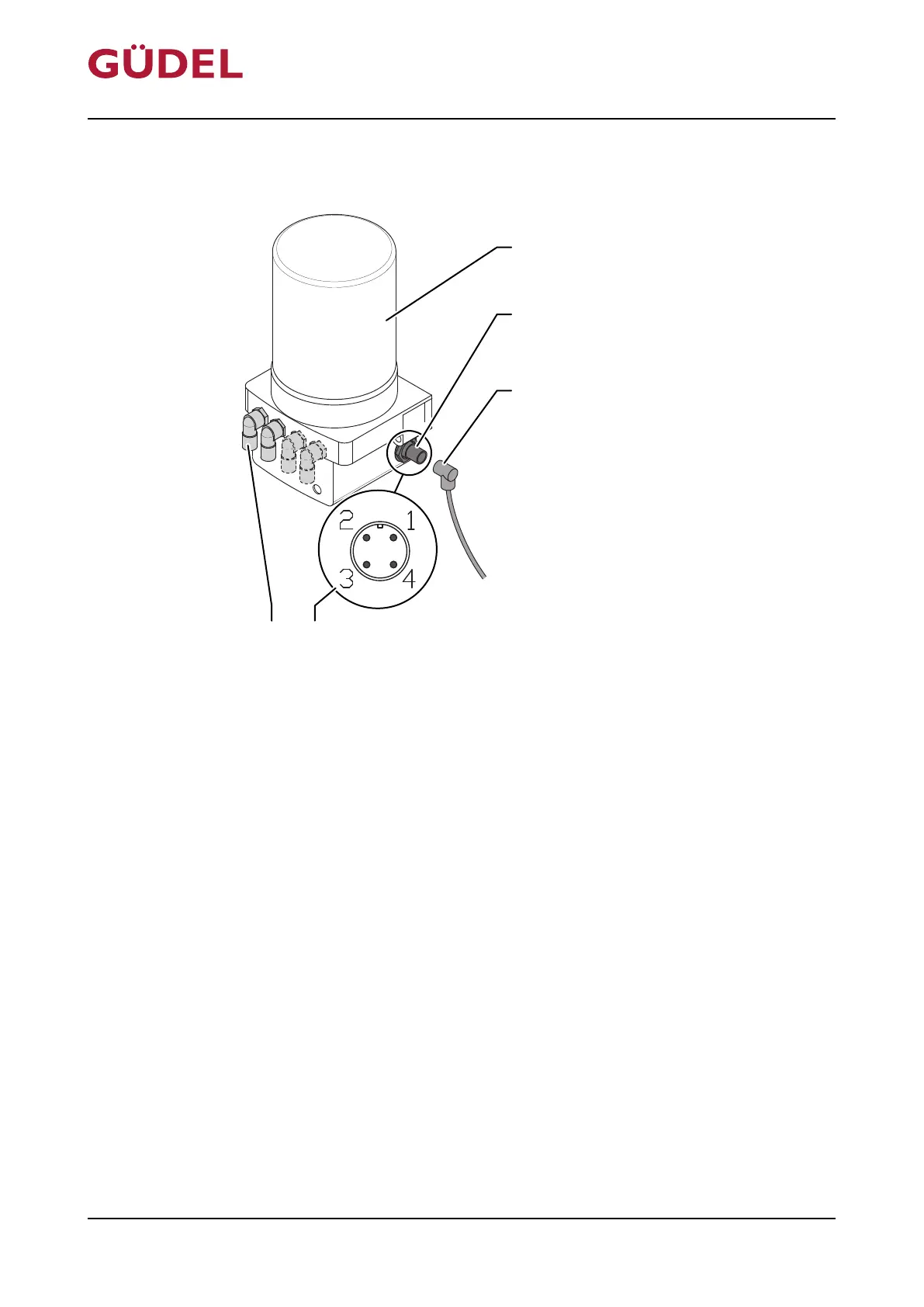

Fig.5-5 Connecting the 404DLS
A FlexxPump 404DLS D Connector pin assignment
B Connection plug for connecting cable E Hydraulic outputs
C Socket of connecting cable
Connect the product as follows:
1 Connect the hydraulic hoses Ü238
2 Screw the connecting cable to the connecting plug
3 Connecting cable
3.1 PIN 1: Input voltage 24 V DC, color: brown
3.2 PIN 2: Control of the individual pump outputs, color: white
3.3 PIN 3: Mass (GND), 0V, color: blue
3.4 PIN 4: Output signal, color: black
The product is connected
Commissioning
OPERATING MANUAL Automatic lubrication system
FlexxPump 404DLS
99079191943154059_v10.0_EN-US
42
