H3C S3100 Series Installation Manual

1-35
Table 1-17 ONU module support of the S3100 series
Switch model
Number of
ONU modules
Required or
optional
ONU module model
S3100-8C-SI 1 Optional
S3100-16C-SI 1 Optional
S3100-26C-SI 1 Optional
z 1000Base-PX10
(LS6M1PU1SA)
z 1000Base-PX20
(LS6M1PU1SB)
S3100-8C-EPON-EI 1 Required
S3100-16C-EPON-EI 1 Required
S3100-26C-EPON-EI 2
1 required
1 optional
1000Base-PX20
(LS6M2PU1SB)
All models of ONU modules look alike.
Figure 1-46 and Figure 1-47 depict the LS6M2PU1SB.

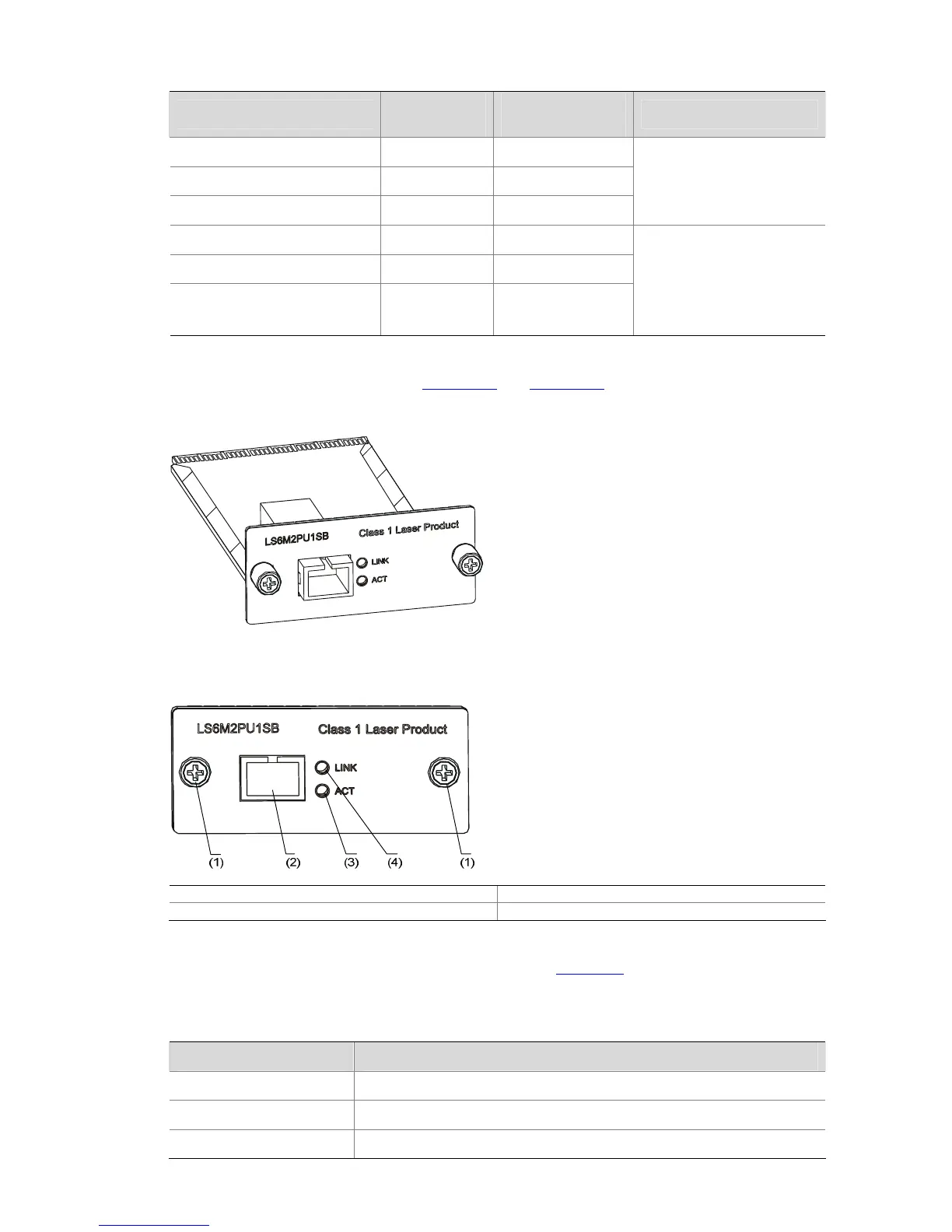

Figure 1-46 Appearance of the LS6M2PU1SB
Figure 1-47 Front panel of the LS6M2PU1SB
(1) Fastening screws (2) 1000 Mbps PON port
(3) ACT LED of the PON port (4) LINK LED for the PON port
The ONU module provides one 1000 Mbps uplink PON port.
Table 1-18 lists the technical specifications
for the PON port.
Table 1-18 Technical specifications for the ONU port
Item Specifications
Connector type SC
Number of interfaces 1
Interface speed 1000 Mbps
