H3C S5560S-EI Series User Manual

2-27
S5130S-28S-UPWR-HI

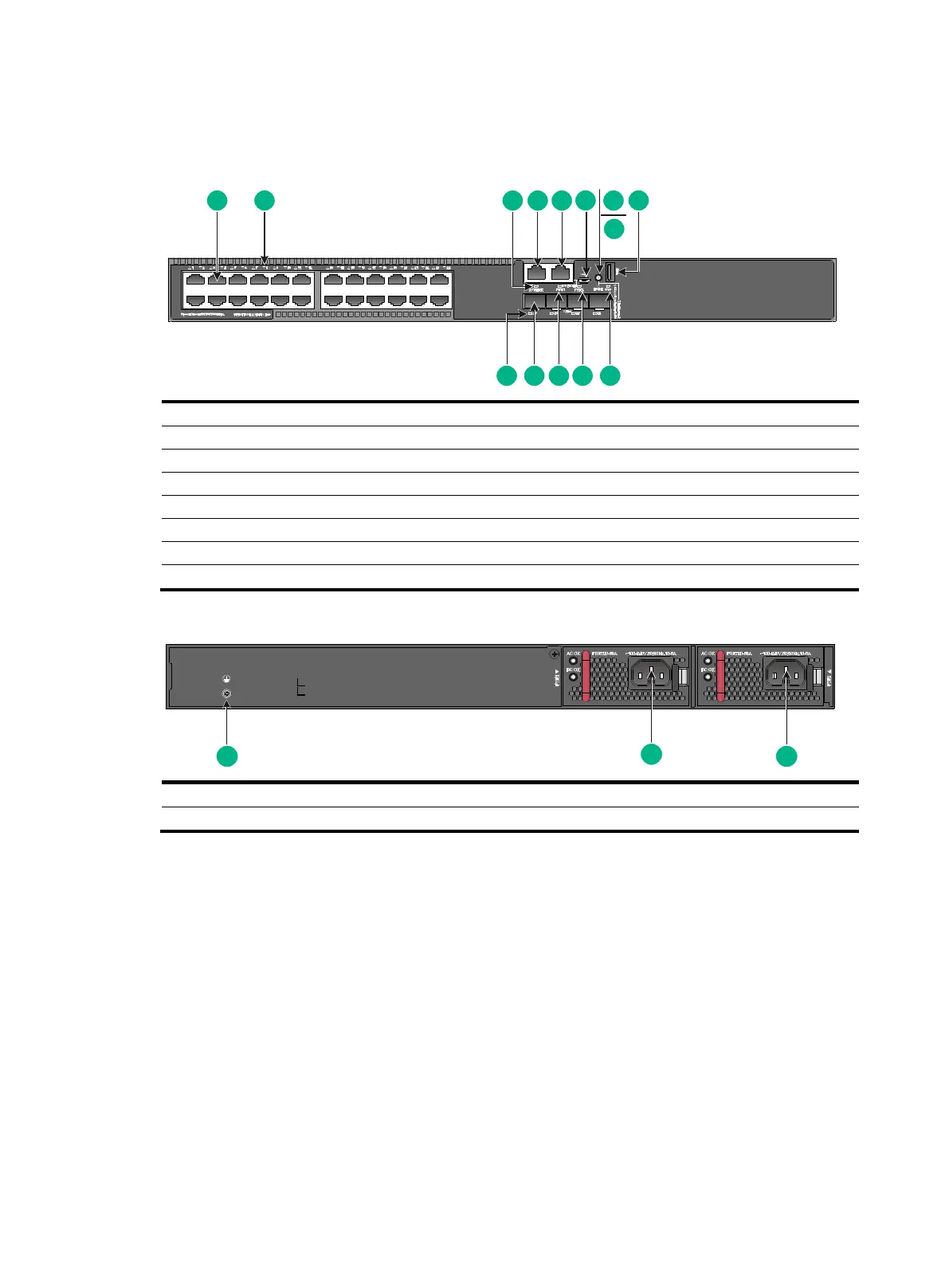

Figure2-27 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Management Ethernet port LED (ACT/LINK)
(4) Management Ethernet port
(5) Console port (CONSOLE)
(6) Micro USB console port
(7) Port LED mode switching button
(8) Mode LED (MODE)
(9) USB port
(10) System status LED (SYS)
(11) Power supply 2 status LED (PWR2)
(12) Power supply 1 status LED (PWR1)
(13) SFP+ port
(14) SFP+ port LED
Figure2-28 Rear panel
(1) Grounding screw
(2) Power supply 1
(3) Power supply 2
The S5130S-28S-UPWR-HI switch comes with power supply slot 1 empty and power supply slot 2
installed with a filler panel. You can install one or two power supplies for the switch as required. In
this figure, two PSR720-56A AC power supplies are installed in the power supply slots.
1
2
13
14
4
3
5
12
11
6
10
7
8
9
1
2
3
