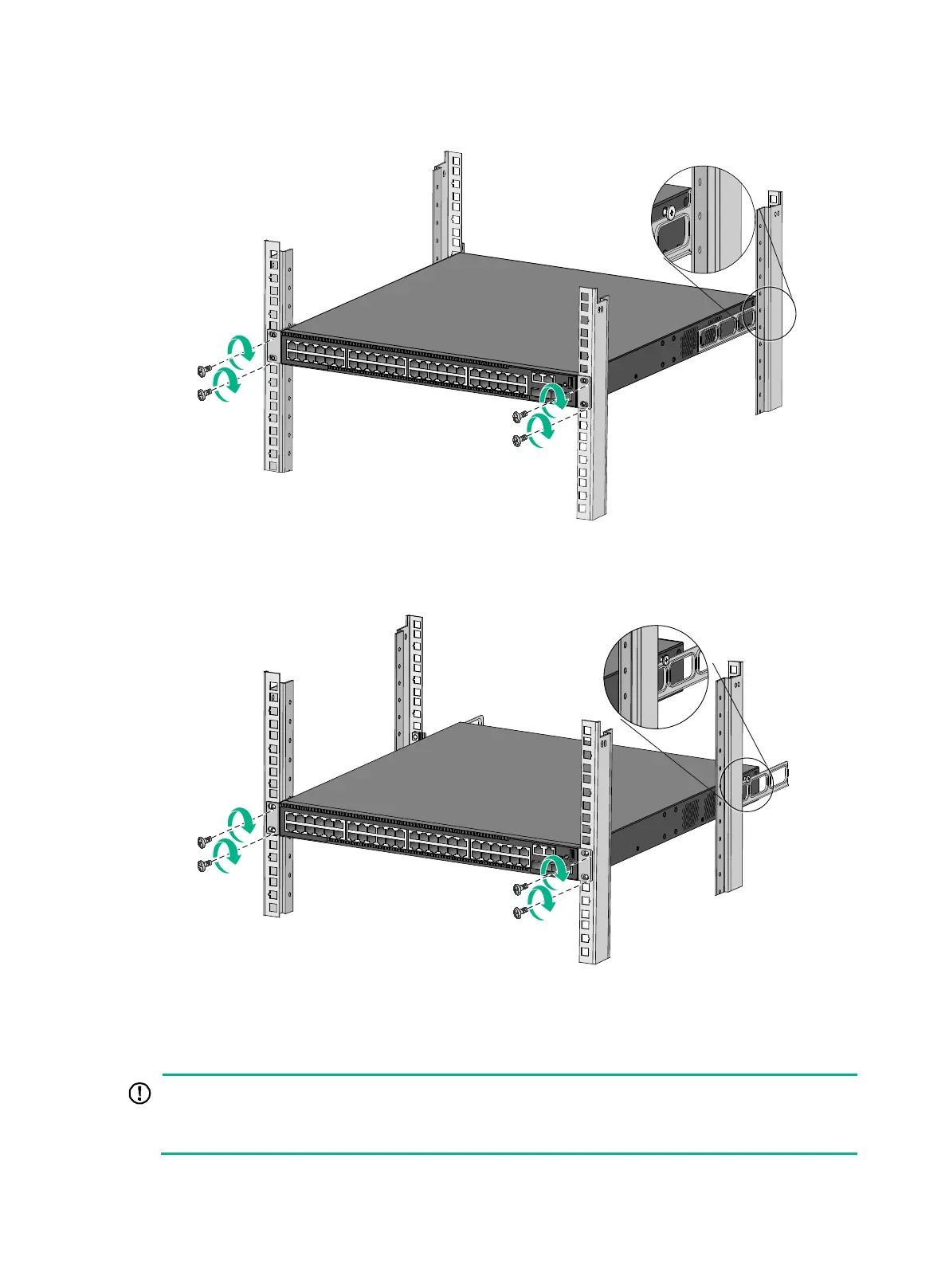

Figure 2-13 Mounting the switch in the rack (with the wide flange of the rear mounting
brackets inside the rack)
Figure 2-14 Mounting the switch in the rack (with the wide flange of the rear mounting
brackets outside the rack)
Mounting the switch on a workbench
Reserve a minimum of 10 cm (3.9 in) of clearance around the chassis for heat dissipation.
• Do not place heavy objects on the switch.
