H3C S5560S-EI Series - Rack-Mounting the Switch by Using Front Mounting Brackets

2-9

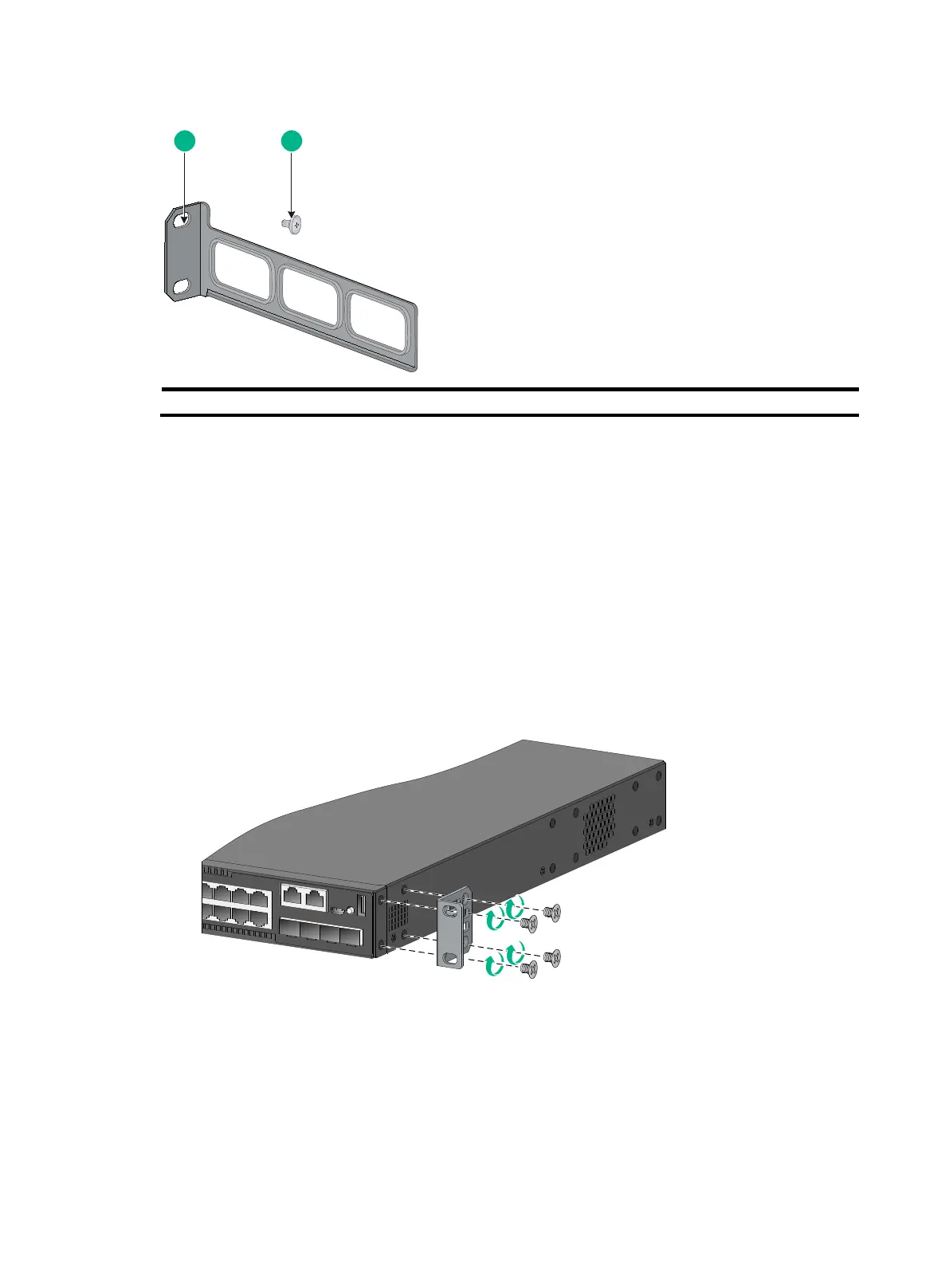

Figure 2-5 Rear mounting bracket and shoulder screw
(1) Screw hole for attaching the bracket to the rack
(2) Shoulder screw
Rack-mounting the switch by using front mounting brackets
Attaching the front mounting brackets to the switch
1. Determine the mounting position for the front mounting brackets. You can install the front
mounting brackets at the port side or the power supply side.
2. Attach the front mounting brackets to the chassis:
a. Align the round holes in the wide flange of one front mounting bracket with the screw holes
in the chassis. See Figure 2-6 and Figure 2-7.
b. Use M4 screws (provided with the switch) to attach the front mounting bracket to the
chassis.
c. Repeat the proceeding two steps to attach the other front mounting bracket to the chassis.
Figure 2-6 Attaching the front mounting bracket to the port side
1
2
