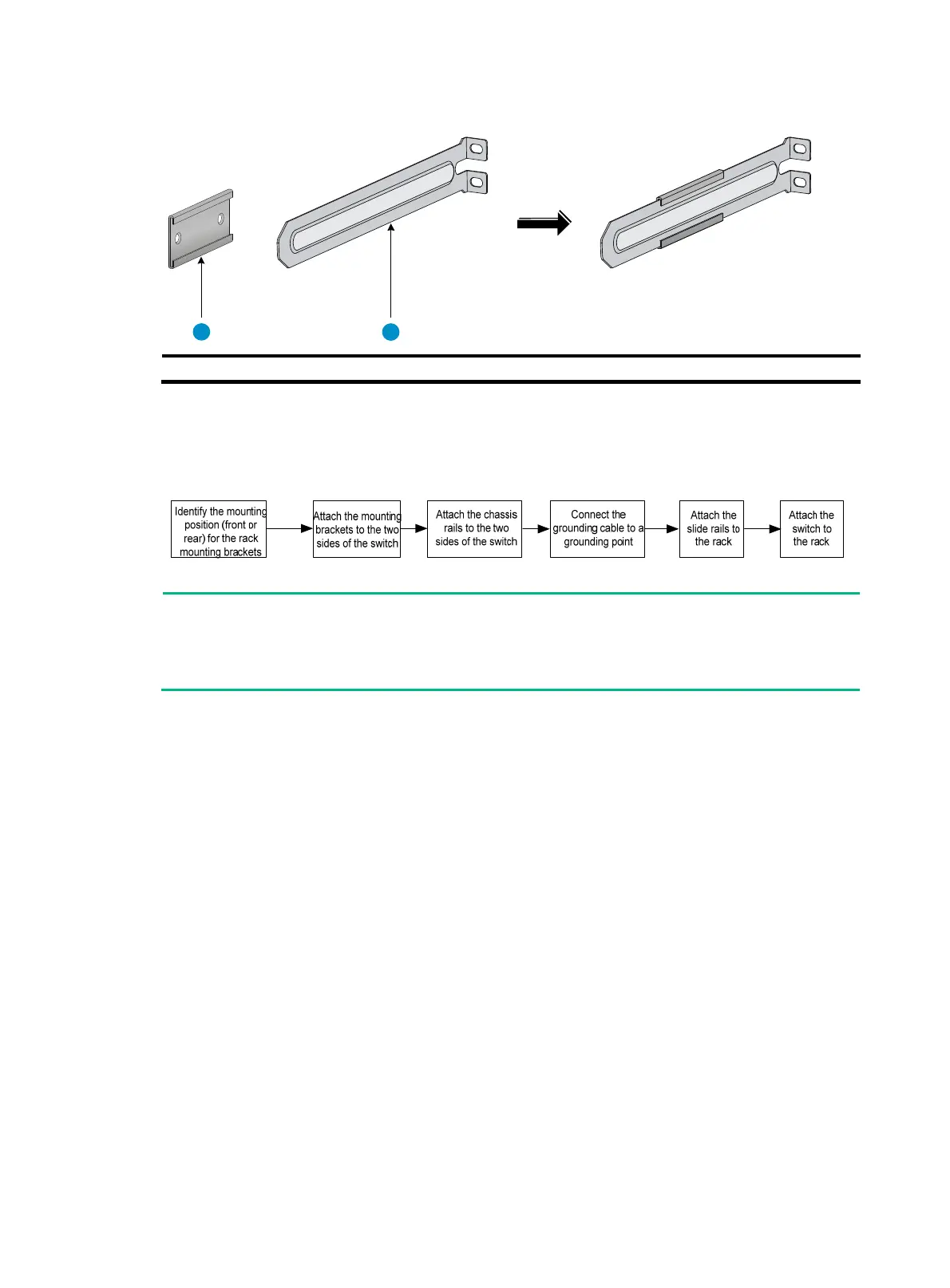

Figure 3 Rack-mounting rail kit
(1) Chassis rail (2) Slide rail
Rack-mounting procedures at a glance
Figure 4 Rack-mounting procedure
NOTE:
• If a rack shelf is available, you can put the switch on the rack shelf, slide the switch to an
appropriate location, and attach the switch to the rack with the mounting brackets.
• To rack-mount the switch, you must use both the mounting bracket and the rack-mounting rail kit.
Attaching the mounting brackets, chassis rails, and
grounding cable to the chassis
The switch has one front mounting position (near the network ports) and one rear mounting position
(near the power modules).
The S5830V2-24S has one primary grounding point (with a grounding sign) and one auxiliary
grounding point. The S5820V2-48S, S5820V2-52QF, S5820V2-52QF-U, S5820V2-52Q, and
S5820V2-54QS-GE switches each have one primary grounding point (with a grounding sign) and
two auxiliary grounding points. Use the primary grounding point whenever possible. If the primary
grounding point fails or is not suitable for the installation site, use one of the auxiliary grounding
points.
